    GOB HOB LED Display Video Wall P1.667mm P1.839mm P1.86mm

    Ask Lasest Price
    Brand Name : Conwin LED Display
    Model Number : MI-V1.6 MI-V1.8
    Certification : FCC, CE, ROHS
    Price : Negotiable
    Payment Terms : T/T, L/C
    Supply Ability : 1,000sqm/month
    Delivery Time : 15 days
    • Product Details
    • Company Profile

    GOB HOB LED Display Video Wall P1.667mm P1.839mm P1.86mm

    GOB HOB LED Display Video Wall P1.667mm P1.839mm P1.86mm LED Cabinet


    Application:

    MI-V series MI-V1.6 MI-V1.8(P1.667,P1.839 and P1.86) GOB HOB LED Display Video Wall widely using in indoor complex places with competitive price

    Such as aquarium,lively restaurant,noisy bar... other places also be welcome like schools, conference room, public security, malls as fantastic viewing effect.

    Advantage and Features:

    - GOB super protective properties

    Waterproof, dust-proof, anti-collision, the reliability of the display can be improved with no worry

    What is GOB?

    GOB Is an abbreviation of Glue on board, It is a new encapsulation technology of LED display module.

    This technology can solve the problems of LED lamp protection. GOB products use self-developed transparent Glue material to encapsulate the substrate and its LED packaging unit to from effective protection.

    The material not only has ultra-high transparency performance, but also possesses ultra-high thermal conductivity.

    GOB technology made Led display screen become be touched, moisture resistance waterproof, dust-proof, impact resistance and so on. It is possible for the led display to use various harsh environments.

    - High refresh, High grey scale and High contast ratio

    Ultimate visual enjoyment

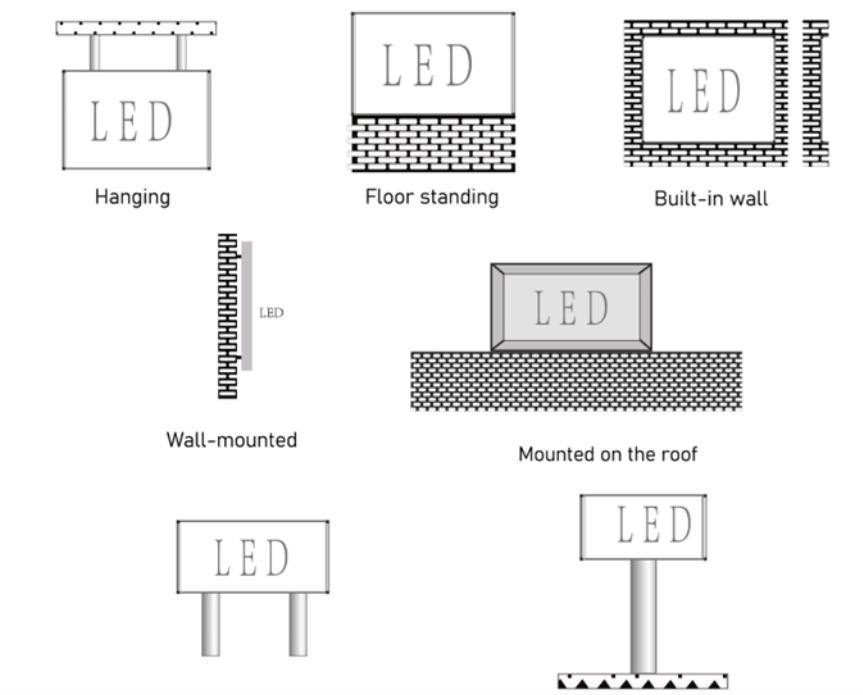

    - Front Mainteance and different install type

    Parameters


    MI-V1.6MI-V1.8MI-V1.8
    Pixel Pitch1.667mm1.839mm1.86mm
    Pixel ConfigurationSMD1212SMD1515SMD1515
    Module Dimensions (W x H) (mm)320X160mm320X160mm320X160mm
    Panel Dimensions (mm)640x480mm640x480mm640x480mm
    Modules Per Cabinet (W x H)2X32X32X3
    Cabinet Resolution384 x 288 dots348 x 261 dots344X258dots
    Panel MaterialDie Cast AluminumDie Cast AluminumDie Cast Aluminum
    Weight per Cabinet8kg8kg8kg
    Colors281 trillion281 trillion281 trillion
    Contrast Ratio5,000 : 15,000 : 15,000 : 1
    Average Power Consumption200 W /Sqm130 W /Sqm150 W /Sqm
    Max Power Consumption400 W /Sqm270 W /Sqm300 W /Sqm
    Brightness500 nits500 nits500 nits
    Refresh Rate>=3,840Hz>=3,840 Hz>=3,840 Hz
    Vertical Viewing Angle160°160°160°
    Horizontal Viewing Angle160°160°160°
    Expected Lifetime100,000 Hrs100,000 Hrs100,000 Hrs
    ServicingFrontFrontFront
    Operating Temp/Humidity-20ºC - 50ºC / 10% - 90%-20ºC - 50ºC / 10% - 90%-20ºC - 50ºC / 10% - 90%
    Storage Temp/Humidity-20ºC - 50ºC / 10% - 90%-20ºC - 50ºC / 10% - 90%-20ºC - 50ºC / 10% - 90%
