Die Aluminum Indoor LED Display Screen Permanent Fixed P2.5mm P3mm

Ask Lasest Price
Brand Name :	Conwin LED Display
Model Number :	MI-D2.5 MI-D3
Certification :	FCC, CE, ROHS
Price :	Negotiable
Payment Terms :	T/T, L/C
Supply Ability :	1,000sqm/month
Delivery Time :	15 days

Add to Cart

Product Details
Company Profile

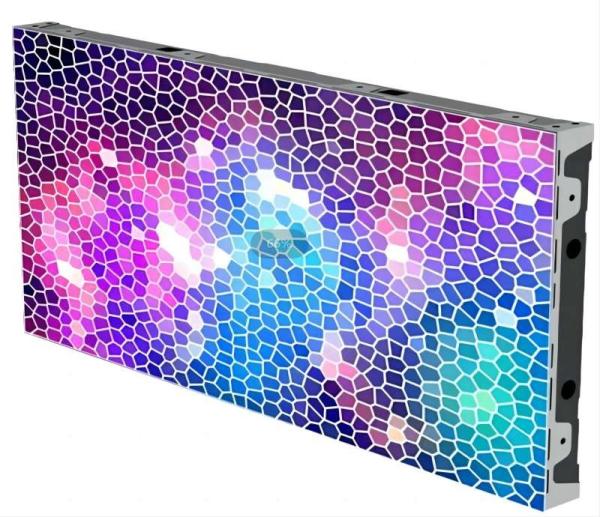

Die Aluminum Indoor LED Display Screen Permanent Fixed P2.5mm P3mm

Indoor Permanent Fixed P2.5mm P3mm LED Video Wall Display Screen

Application:

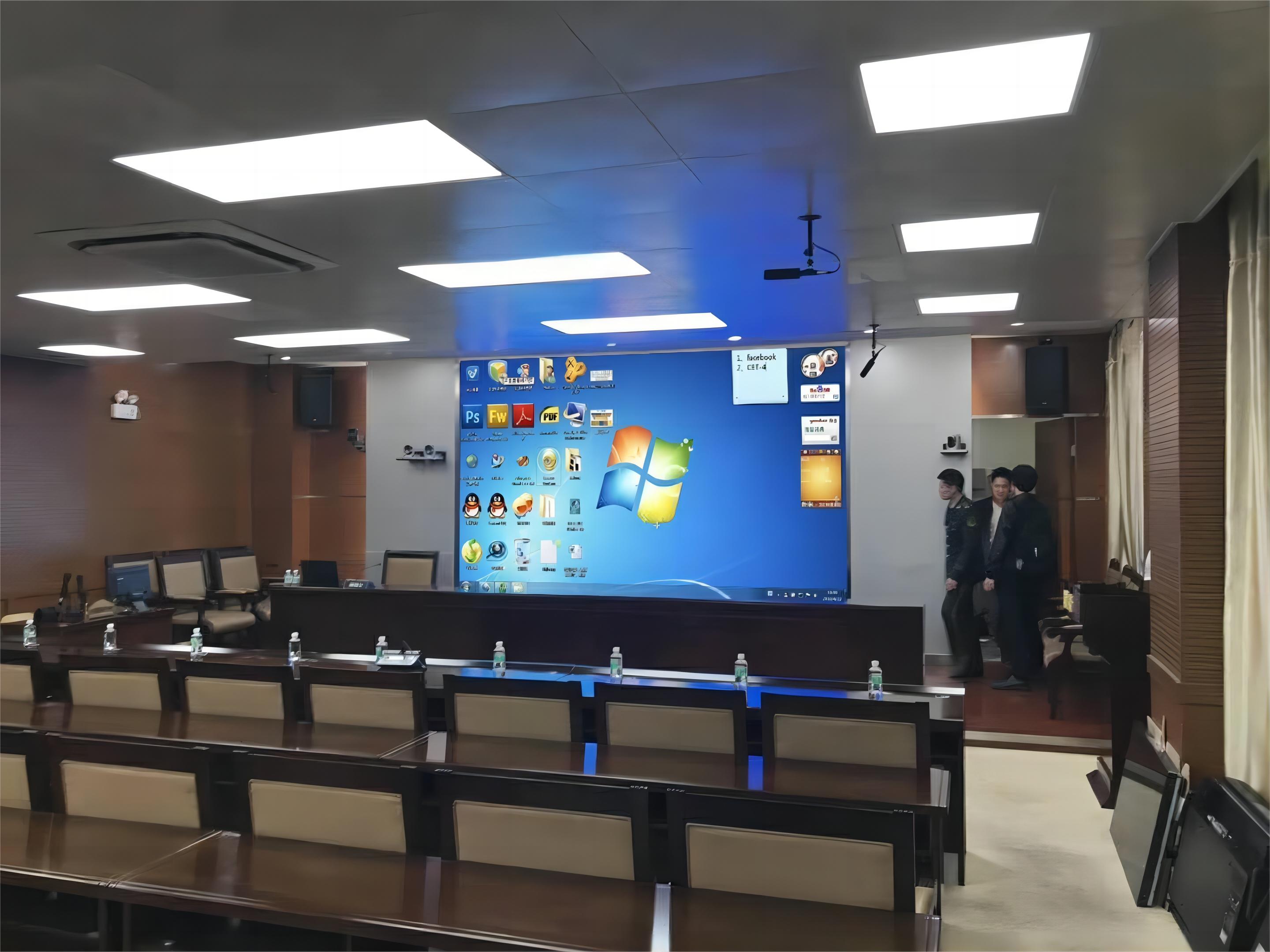

MI-D series P2.5mm P3mm LED display video wall screen widely using in high stars hotels, malls, schools, restaurants, conference room, public security, shopping centers and other fields.

MI-D series MI-D2.5(P2.5mm) MI-D3(P3mm) Quick Details:

- Pixel Pitch P2.5mm and P3mm
- Light and slim design panel

LED Panel 960X480X58mm with only 10.6kg

Size customized 960X480mm,960X240mm,480X240mm,480X240mm

- COB tech enhance the protection level from physical damage, surface waterproof
- Perfect seamless stitching and fast installation
- Totally cable-less connection, dual power and sign backup are optional

- High refresh rate, High grey scale, High contrast ratio

- Wide viewing angle

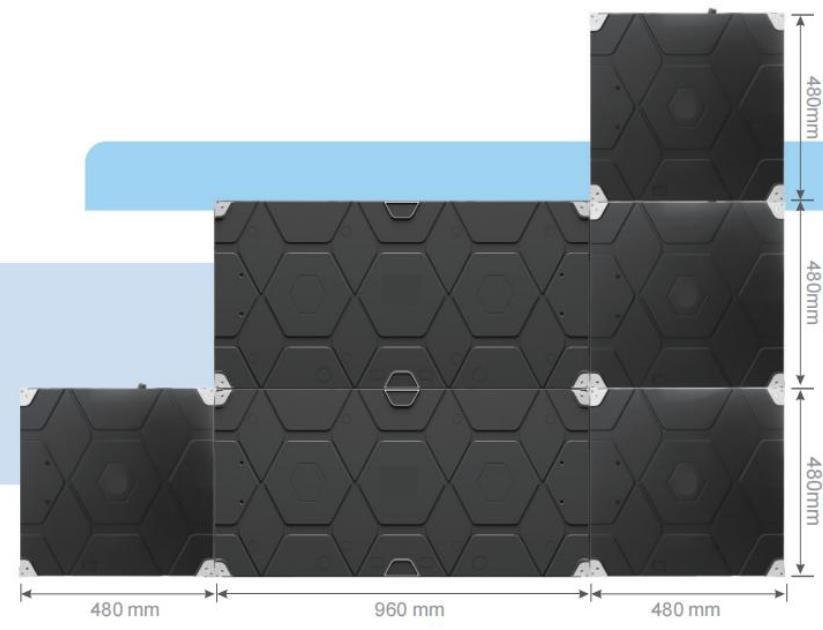

- Customized Option With Various Cabinet Sizes

According to the installation sizes of different environments, this product can be customized with various

sizes of cabinets, which is easier to install and meet more needs of customers' requirements.

- HDR High Dynamic & High Refresh Rate Display

Parameters:

	MI-D2.5	MI-D3
Pixel Pitch	2.5mm	3mm
Pixel Configuration	SMD2121	SMD2121
Module Dimensions (W x H) (mm)	240X240mm	240X240mm
Panel Dimensions (mm)	960x480mm	960x480mm
Modules Per Cabinet (W x H)	4X2	4X2
Cabinet Resolution	384 x 192 dots	320X160dots
Panel Material	Die Cast Aluminum	Die Cast Aluminum
Weight per Cabinet	10.6kg	10.6kg
Colors	281 trillion	281 trillion
Contrast Ratio	5,000 : 1	5,000 : 1
Average Power Consumption	300 W /Sqm	300 W /Sqm
Max Power Consumption	800 W /Sqm	800 W /Sqm
Brightness	300-800 nits	300-800 nits
Refresh Rate	>=3,840Hz	>=3,840 Hz
Vertical Viewing Angle	160°	160°
Horizontal Viewing Angle	160°	160°
Expected Lifetime	100,000 Hrs	100,000 Hrs
Servicing	Front	Front
Operating Temp/Humidity	-20ºC - 50ºC / 10% - 90%	-20ºC - 50ºC / 10% - 90%
Storage Temp/Humidity	-20ºC - 50ºC / 10% - 90%	-20ºC - 50ºC / 10% - 90%

Pictures:

Product Tags:

Indoor LED Display Screen P3mm

Indoor LED Display Screen Permanent

indoor fixed led display P2.5mm
