960X480mm HD LED Display P1.2mm P1.5mm P1.8mm LED Display Video
Wall Screen
MI-D Series small pixel Details:

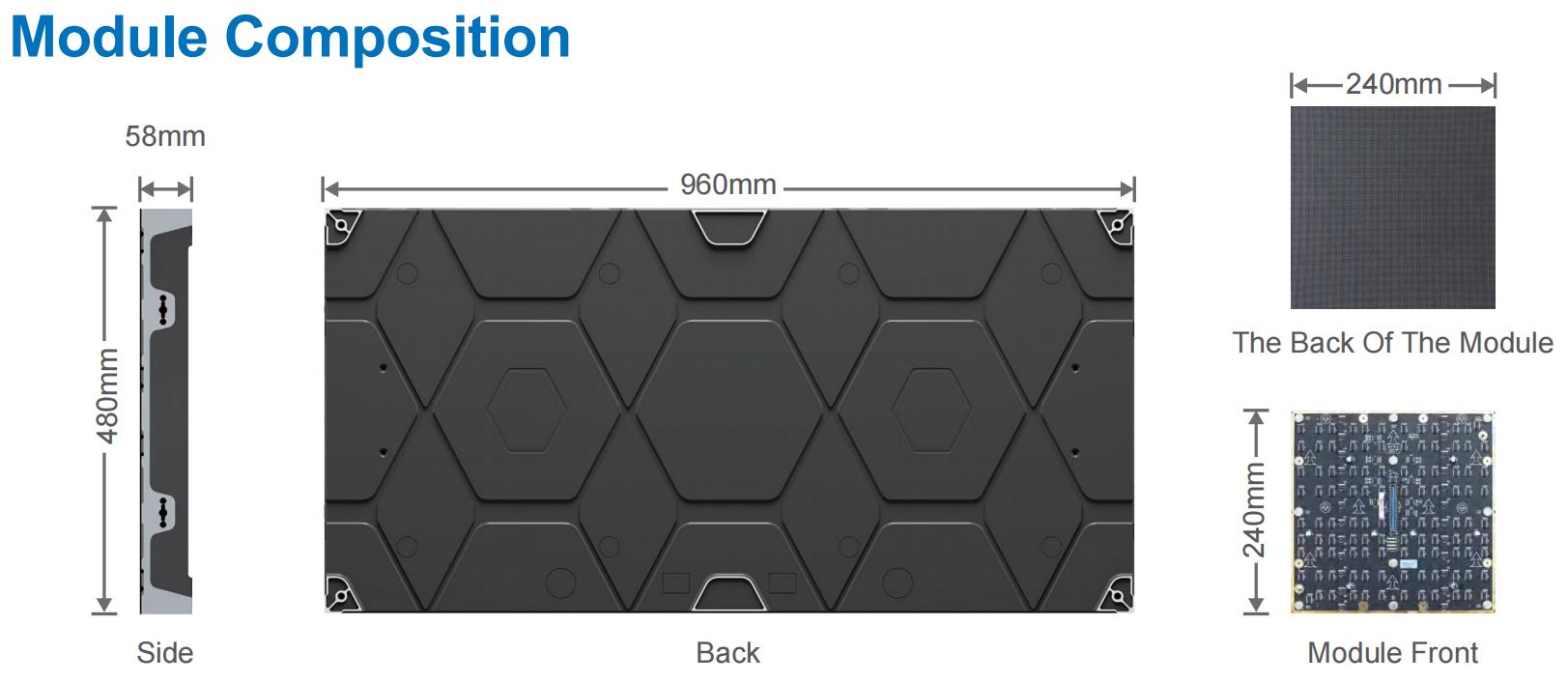

- Cabinet size
960X480X58mm, with Light weight 10.6kg
- TOP-COB Unique Design Patent
The product has unique LED surface treatment technology, which can
achieve high-level
collision-proof, water-proof, and dust-proof, effectively protect
the screen, and can work
normally in environments such as corrosion, moisture and water mist
- Seamless Wall Mounting Installation
IP65 Level Protection
The back of this product adopts an IP65 fully enclosed cabinet
structure,
which can play the role of waterproof and dustproof on the
back,preventing dust magazines from entering the inside of the
cabinet
Ensuring the protection standards under responsible conditions,
increasing the service life of the product, and saving on-site use
space.

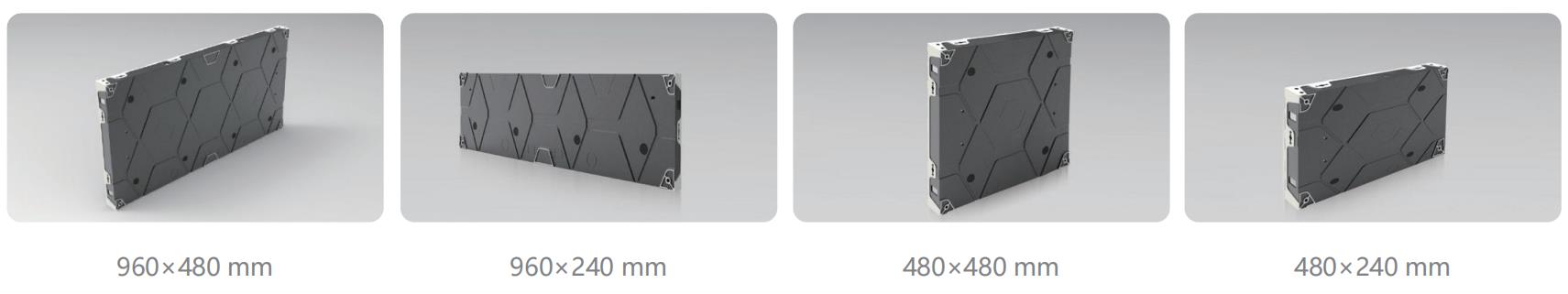

- Customized Option With Various Cabinet Sizes
According to the installation sizes of different environments, this
product can be customized with various
sizes of cabinets, which is easier to install and meet more needs
of customers.

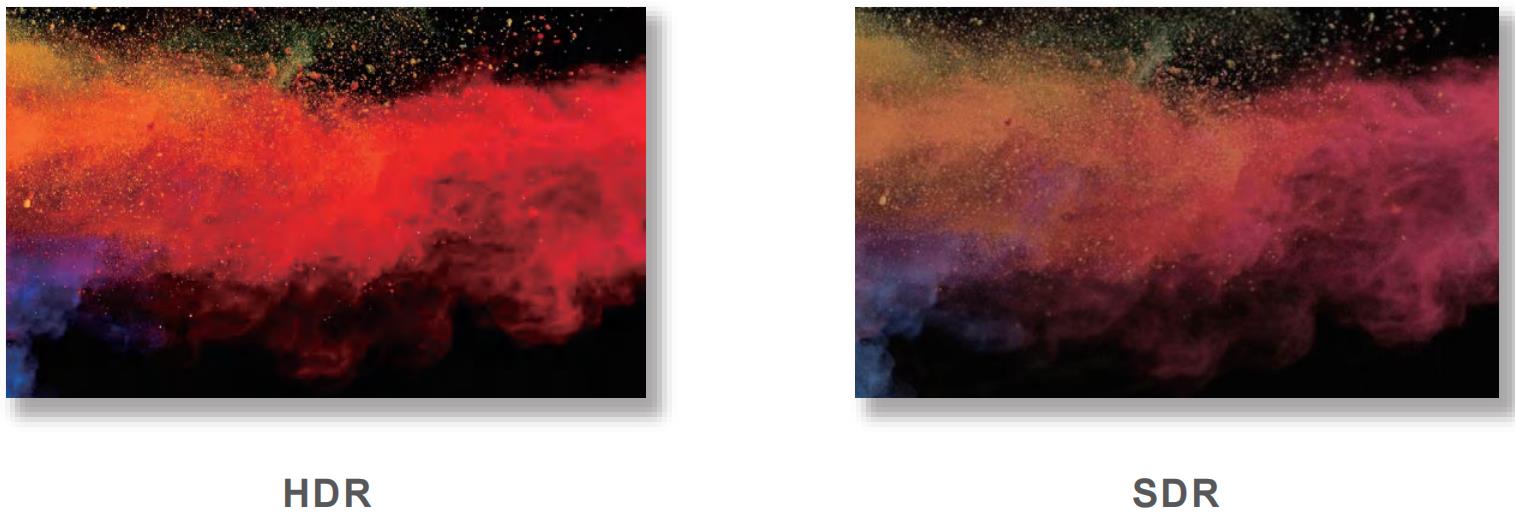

- HDR High Dynamic & High Refresh Rate Display
The system data is processed in depth, and the HDR high dynamic
picture is finely imaged in the low-brightness and high-gray
colleagues,
which enhances the layering of the dark and bright pictures, making
the scene more realistic and the colors more vivid, equipped with
anti-gamma correction technology,
and experience 3840Hz high refresh and the dynamic expression of
color reproduction.
- Low Brightness With High Gray Scale
The use of high-quality LED and high-end constant current source of
PWM, with LP DISPLAY exclusive
image algorithm, make the display screen color rendering, color
reproduction and low gray details more
prominent. It also has excellent performance of high gray scale
when the brightness is 100cd/m².
Parameters:
| MI-D1.2 | MI-D1.5 | MI-D1.8 |
| Pixel Pitch | 1.29mm | 1.579mm | 1.875mm |
| Pixel Configuration | SMD1010 | SMD1515 | SMD1515 |
| Module Dimensions (W x H) (mm) | 240X240mm | 240X240mm | 240X240mm |
| Panel Dimensions (mm) | 960x480mm | 960x480mm | 960x480mm |
| Modules Per Cabinet (W x H) | 4X2 | 4X2 | 4X2 |
| Cabinet Resolution | 744 x 372 dots | 608X304dots | 512X256dots |
| Panel Material | Die Cast Aluminum | Die Cast Aluminum | Die Cast Aluminum |
| Weight per Cabinet | 10.6kg | 10.6kg | 10.6kg |
| Colors | 281 trillion | 281 trillion | 281 trillion |
| Contrast Ratio | 5,000 : 1 | 5,000 : 1 | 5,000 : 1 |
| Average Power Consumption | 300 W /Sqm | 300 W /Sqm | 300 W /Sqm |
| Max Power Consumption | 800 W /Sqm | 800 W /Sqm | 800 W /Sqm |
| Brightness | 300-800 nits | 300-800 nits | 300-800 nits |
| Refresh Rate | >=3,840Hz | >=3,840 Hz | >=3,840 Hz |
| Vertical Viewing Angle | 160° | 160° | 160° |
| Horizontal Viewing Angle | 160° | 160° | 160° |
| Expected Lifetime | 100,000 Hrs | 100,000 Hrs | 100,000 Hrs |
| Servicing | Front | Front | Front |
| Operating Temp/Humidity | -20ºC - 50ºC / 10% - 90% | -20ºC - 50ºC / 10% - 90% | -20ºC - 50ºC / 10% - 90% |
| Storage Temp/Humidity | -20ºC - 50ºC / 10% - 90% | -20ºC - 50ºC / 10% - 90% | -20ºC - 50ºC / 10% - 90% |
