Small Pixel Pitch HD LED Display P2mm P2.5mm P3mm Indoor Video Wall Using

Ask Lasest Price
Brand Name :	Conwin LED Display
Model Number :	MI-V2 MI-V2.5 MI-V3
Certification :	FCC, CE, ROHS
Price :	Negotiable
Payment Terms :	T/T, L/C
Supply Ability :	1,000sqm/month
Delivery Time :	15 days

Add to Cart

Product Details
Company Profile

Small Pixel Pitch HD LED Display P2mm P2.5mm P3mm Indoor Video Wall Using

Application:

MI-V sereis MI-V2(p2mm) MI-V2.5(p2.5mm) MI-V3(p3.073mm) welcome using in indoor led video wall with competitive price, applied for hotels, retaurants, school, hospital,bank...

Features and Advantages:

- Small pixel pitch, show ultra hd image and video for advertising and rental market

- High precision and best quality LED and Drivers, high refresh rate, high grey level

- Small panel 640X480mm with light weight 8kg ,easy to operate and move

- Die-casting aluminum cabinet, durable and won't deform;

- Support Different Input and output signals.

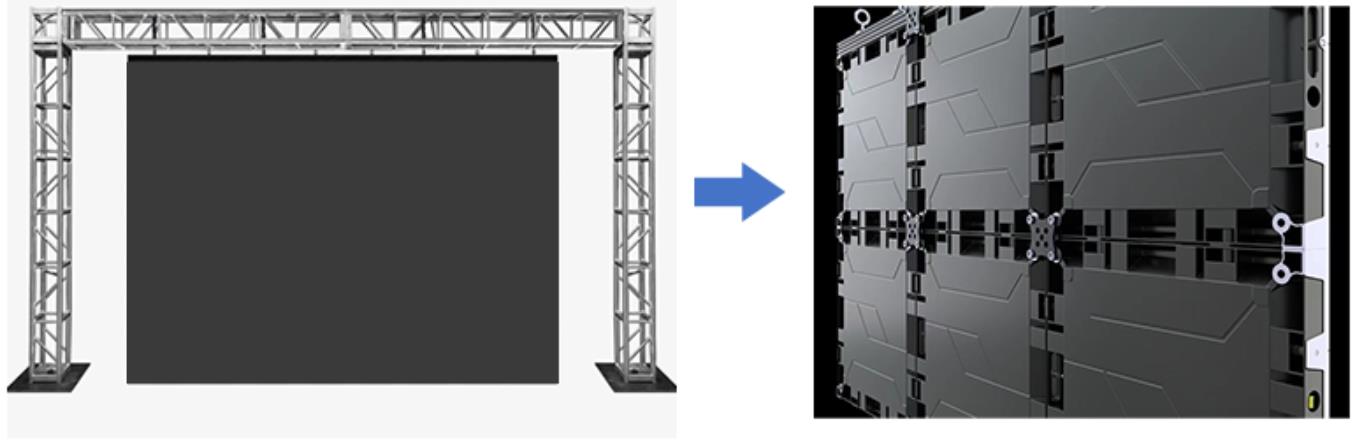

- Support different install type

Handing, wall mounted, stacking on truss...

Parameters:

	MI-V2	MI-V2.5	MI-V3
Pixel Pitch	2mm	2.5mm	3.076mm
Pixel Configuration	SMD1515	SMD2121	SMD2121
Module Dimensions (W x H) (mm)	320X160mm	320X160mm	320X160mm
Panel Dimensions (mm)	640x480mm	640x480mm	640x480mm
Modules Per Cabinet (W x H)	2X3	2X3	2X3
Cabinet Resolution	320 x 240 dots	256X192dots	208X156dots
Panel Material	Die Cast Aluminum	Die Cast Aluminum	Die Cast Aluminum
Weight per Cabinet	8kg	8kg	8kg
Colors	281 trillion	281 trillion	281 trillion
Contrast Ratio	5,000 : 1	5,000 : 1	5,000 : 1
Average Power Consumption	130 W /Sqm	150 W /Sqm	150 W /Sqm
Max Power Consumption	275 W /Sqm	300 W /Sqm	300 W /Sqm
Brightness	500 nits	500 nits	500 nits
Refresh Rate	>=3,840Hz	>=3,840 Hz	>=3,840 Hz
Vertical Viewing Angle	160°	160°	160°
Horizontal Viewing Angle	160°	160°	160°
Expected Lifetime	100,000 Hrs	100,000 Hrs	100,000 Hrs
Servicing	Front	Front	Front
Operating Temp/Humidity	-20ºC - 50ºC / 10% - 90%	-20ºC - 50ºC / 10% - 90%	-20ºC - 50ºC / 10% - 90%
Storage Temp/Humidity	-20ºC - 50ºC / 10% - 90%	-20ºC - 50ºC / 10% - 90%	-20ºC - 50ºC / 10% - 90%

Pictures:
