Front Maintenance Service High Refresh LED Display Fine Pixel Pitch P1.6mm

Ask Lasest Price
Brand Name :	Conwin LED Display
Model Number :	CE-EMC, CE-LVD, RoHS, ETL, FCC
Certification :	MI-V1.66
Price :	Negotiable
Payment Terms :	T/T, L/C
Supply Ability :	1,000sqm/month
Delivery Time :	15 days

Add to Cart

Product Details
Company Profile

Front Maintenance Service High Refresh LED Display Fine Pixel Pitch P1.6mm

MI-V Series Front Maintenance Service HD LED Display Fine Pixel Pitch P1.6mm High Refresh

Quick Details:

- Small pixel pitch: 1.66mm, Surface mounted device(SMD)
- Dimensions: 400X450X60mm(width x height x thickness)
- Wide viewing angle 160/160
- Recommended minimum viewing distance: 1.6m.
- Cabinet weight: 5.5kg

Application:

Lightweight design, easy installation, high contrast ratio, noiseless design, ultra wide viewing angle, making fine pixel p1.66mm Indoor Led video wall panels no moire effect ,
High precison led cabinet perfect choice for premium setup for 5 star hotels, securities companies, schools, concert, public security, conference room, shopping centers and other fields.

Features and Advantages:

-Elegant and Light Weight Die Cast Aluminum Cabinet
Die casting aluminum cabinet with perfect CNC finished forming, high precision in structural dimensions with less than 0.1mm tolerance

-Seamless Design
Molding cabinet, high precision, easy seamless splicing

-Dual Back Up of Power and Signal
Stable and reliable operation, supporting 7x24 hours working without interruption

-High refresh, high grey scale and high contrast ration make excellent visual experience;

-Slim and Thin Design For Easy Handling
Single cabinet weight only 5.5kg; adopting stylish cabinet frame design, only 60mm the whole cabinet

-Friendly User Experience
Front magnetic service, easy to use and maintenance

Parameters:

Pixel pitch	mm	1.66
Brightness	nits	500
Color temperature	deg.k	2000 ~ 9500
Viewing angle - Horizontal	deg.	160(+70/-70)
Viewing angle - Vertical	deg.	160(+70/-70)
Cabinet weight	kg	5.5
Cabinet width	mm	400
Cabinet height	mm	450
Cabinet depth	mm	62
Cabinet material		Die-Aluminum
Operating temperature range	deg. C	-10 to 60
Operating humidity range	HR	30％ to 75％
Pixel type and configuration	R/G/B	SMD 3in1
Pixel pitch	mm	1.66
Pixel matrix per cabinet		240x270
LED module size(WXH)	mm	200X150
Module resolution(WXH)	dots	108X90
Gray scale	Levels	65536 levels per colour
Brightness control	Levels	100
Frame rate	Hertz	60
Display refresh rate	Hertz	3840
Input voltage	VAC	110/240
Input power frequency	Hertz	50/60
Power (max/avg)	Watts per sq.m	500/200
Grey scale level	bits	16

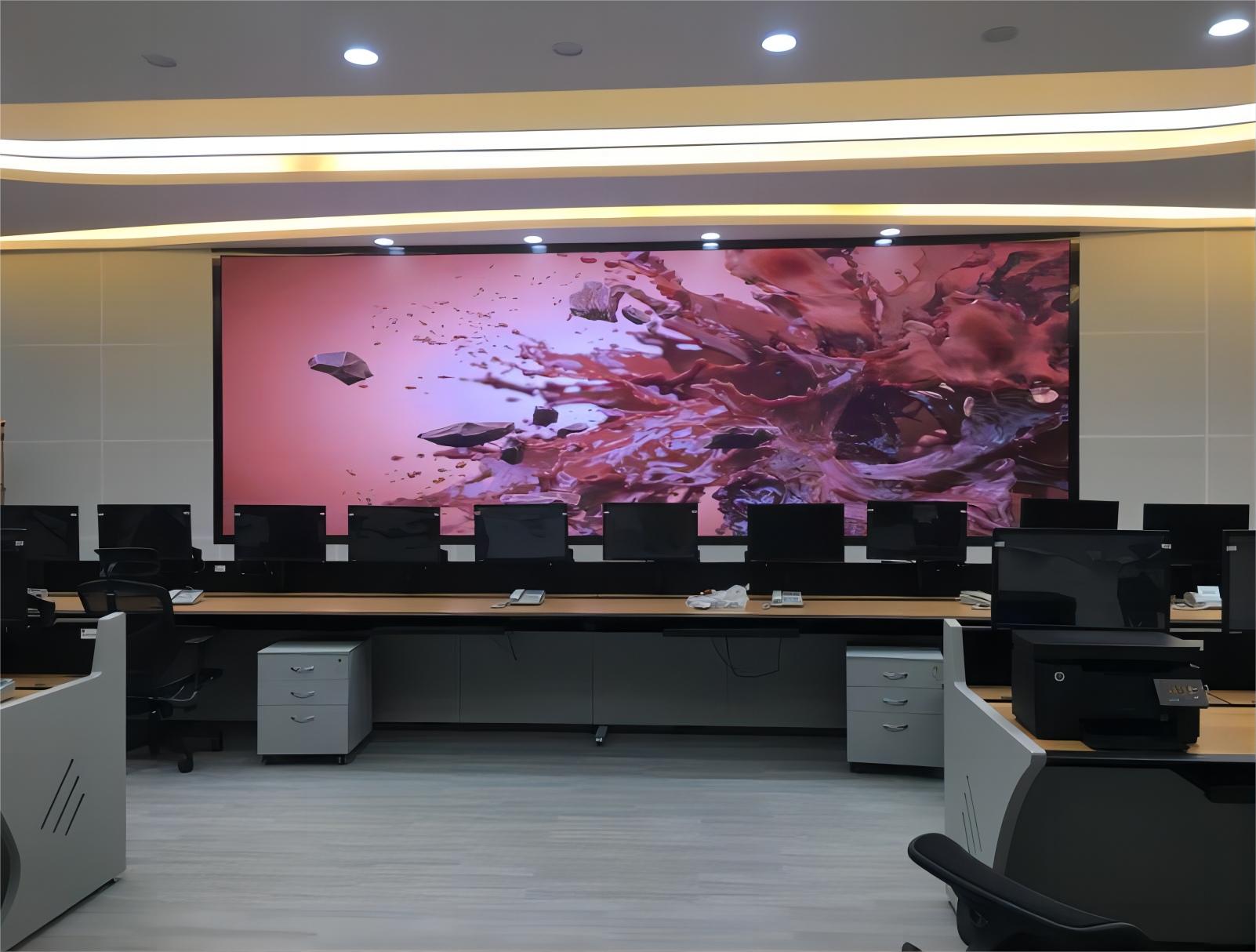

Pictures:
