High-end quality good price indoor ultra 480X480mm P2.5mm HD LED
Display Indoor Fixed Video Wall Screen
Quick Details:
- Pixel Pitch Distance: 2.5mm
- LED Panel Size: 480X480X50mm
- Refresh Rate: 3840hz
- Input Voltage: 110V-240V
- Recommended minimum viewing distance: 2m
- Panel Weight: 6.5kg
- Front service
- Brightness : > 300~500cd/sqm
- Gray Scale: 16bit +/-
- Control system : Novastar,Linsn and so ne
- Connection from card to modules: Hub card
Application, Features and Advantages:
Meeting room, monitor room,control room,shopping mall, and so on .
- 480x480mm indoor LED cabinet adopts ultra-thin cabinet design,
small size to meet all kinds of size of screen.
High refresh rate SMD LED, high-definition visual experience-
- LED panel design with elegant appearance and humann layout, easy
installation and maintenance

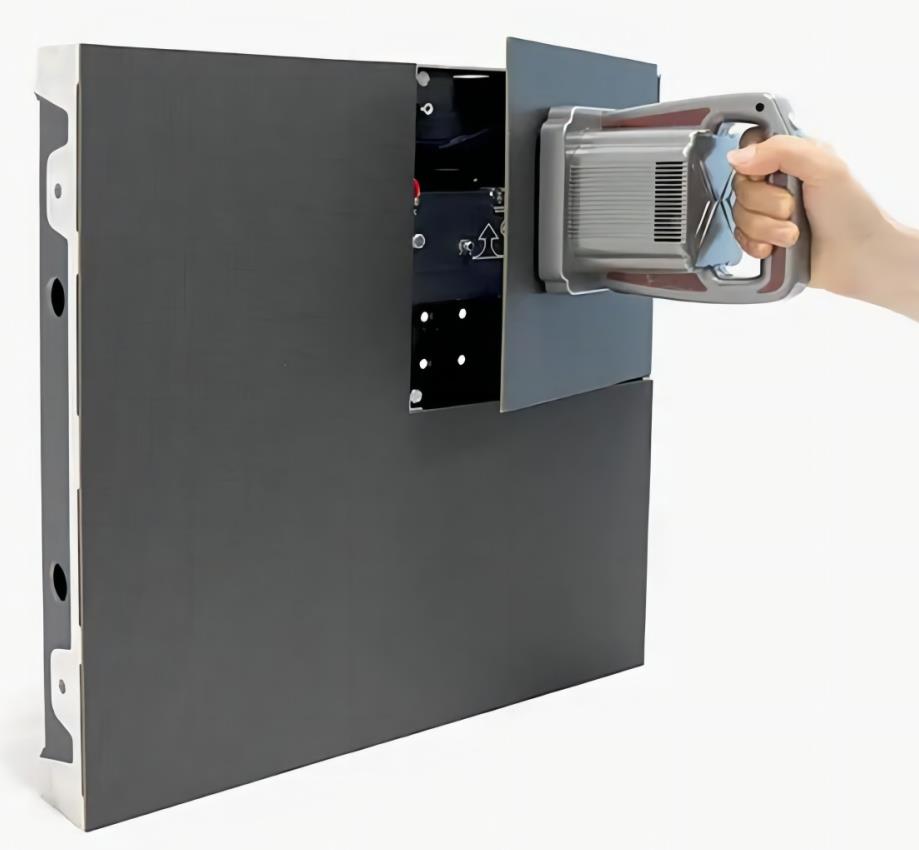

- Front servcie with thick modules
480x480mm LED cabinet adapts full front service design, thick
modules with strong cabinet let it be a very popular solution in
the HD LED display project.
- Seamless splicing , Ecellent display effect
480x480mm LED cabinet can work normally under any weather
conditions, flateness is super good, semless between modules and
cabinets. Good choice for HD indoor LED display
Parameters:
| Pixel pitch | mm | 2.5 |
| Brightness | nits | 500-800 |
| Color temperature | deg.k | 2000 ~ 9500 |
| Viewing angle - Horizontal | deg. | 160(+70/-70) |
| Viewing angle - Vertical | deg. | 160(+70/-70) |
| Cabinet weight | kg | 6.5 |
| Cabinet width | mm | 480 |
| Cabinet height | mm | 480 |
| Cabinet depth | mm | 51 |
| Cabinet material | | Die-Aluminum |
| Operating temperature range | deg. C | -20 to 60 |
| Operating humidity range | HR | 30％ to 75％ |
| Pixel type and configuration | R/G/B | SMD 3in1 |
| Pixel pitch | mm | 2.5 |
| Pixel matrix per cabinet | | 192x192 |
| LED module size(WXH) | mm | 240X240 |
| Module resolution(WXH) | dots | 96X96 |
| Gray scale | Levels | 65536 levels per colour |
| Brightness control | Levels | 100 |
| Frame rate | Hertz | 60 |
| Display refresh rate | Hertz | 3840 |
| Input voltage | VAC | 110/240 |
| Input power frequency | Hertz | 50/60 |
| Power (max/avg) | Watts per sq.m | 500/200 |
| Grey scale level | bits | 16 |
