P0.7 HD LED Display Pixel Pitch P0.78125mm LED Panel Size
600X337.5mm
Application:
MI-P series 600X337.5mm P0.78125mm LED display is ultra thin, light
weight, perfect HD 4K image quality, suitable for for high profile
hotels, securities companies, schools, conference room, public
security, shopping centers and other fields.
Features and Advantages:
- P0.78125mm 4 in 1 with Ultra HDresolution, 2K,4K,8K supported

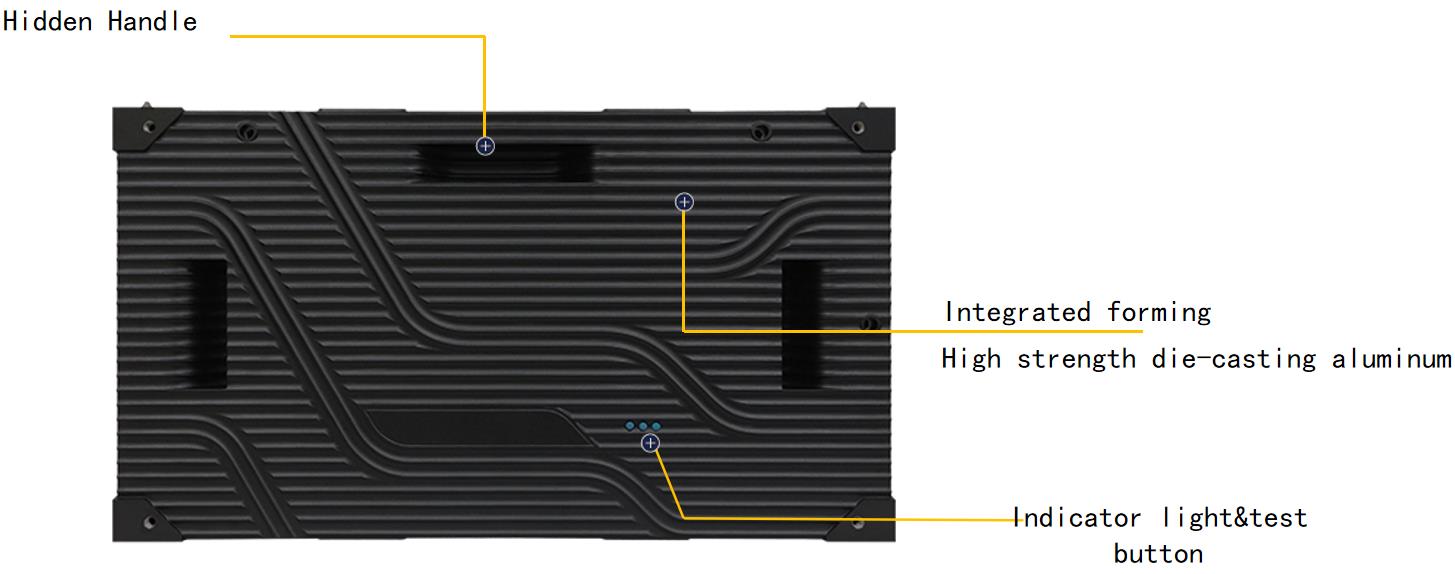

- Cabinet Smart design
Die-casting Alumium cabinet sctructure with CNC high-precision
processing, Flatness of Cabinet≤0.1mm,
Screwless design for faster and more secure installation,Super
silent fanless design make cabinets seamless splicing
- Front Mainteance
Can be applied to different installation environments. wall
mounted, standing,handing...
- Ultra HD 2K,4K,8K Perfect Picture Quality, Exclusive Visual
Performance
- High refresh rate and grey scale
Refresh rate >=3840hz, grey scale 16bits, High quality
image/video presentation
- Wide viewing angle
Perfect presentation of image/video from any angle
Parameters:
| Pixel pitch | mm | 0.78125 |
| Brightness | nits | >=600 |
| Color temperature | deg.k | 2000 ~ 9500 |
| Viewing angle - Horizontal | deg. | 170(+85/-85) |
| Viewing angle - Vertical | deg. | 170(+85/-85) |
| Cabinet weight | kg | 7 |
| Cabinet width | mm | 600 |
| Cabinet height | mm | 337.5 |
| Cabinet depth | mm | 48 |
| Cabinet material | | Die-Aluminum |
| Operating temperature range | deg. C | -20 to 60 |
| Operating humidity range | HR | 10％ to 85％ |
| Pixel type and configuration | R/G/B | Mini 4 in 1 |
| Pixel matrix per cabinet | dots | 768X512 |
| LED module size(WXH) | mm | 150X168.75 |
| Module resolution(WXH) | dots | 192X216 |
| Gray scale | Levels | 65536 levels per colour |
| Brightness control | Levels | 100 |
| Frame rate | Hertz | 60 |
| Display refresh rate | Hertz | 3840 |
| Input voltage | VAC | 110/240 |
| Input power frequency | Hertz | 50/60 |
| Power (max/avg) | Watts per sq.m | 450/150 |
| Grey scale level | bits | 16 |
