P1.5mm P1.8mm LED Video Screen Panels High Density Low Power Consumption

High Density P1.5mm P1.8mm LED Display Panel Low Power Consumption

Quick Details:

- Pixel Pitch: 1.57mm and P1.87mm, SMD LED lamp.

- Full colors: 281trillions.

- Wide viewing angle: 160°/ 160°.

- Recommended minimum viewing distance: 1.5m.

- Lightweight cabinet: 6.5kg/panel.

- Front service

Application:

MI-S series High Density P1.5mm P1.8mm LED Display Panel include: P1.57mm and P1.87mm. Welcome using in monitoring center, restaurant, mall, conference room,TV stuido...

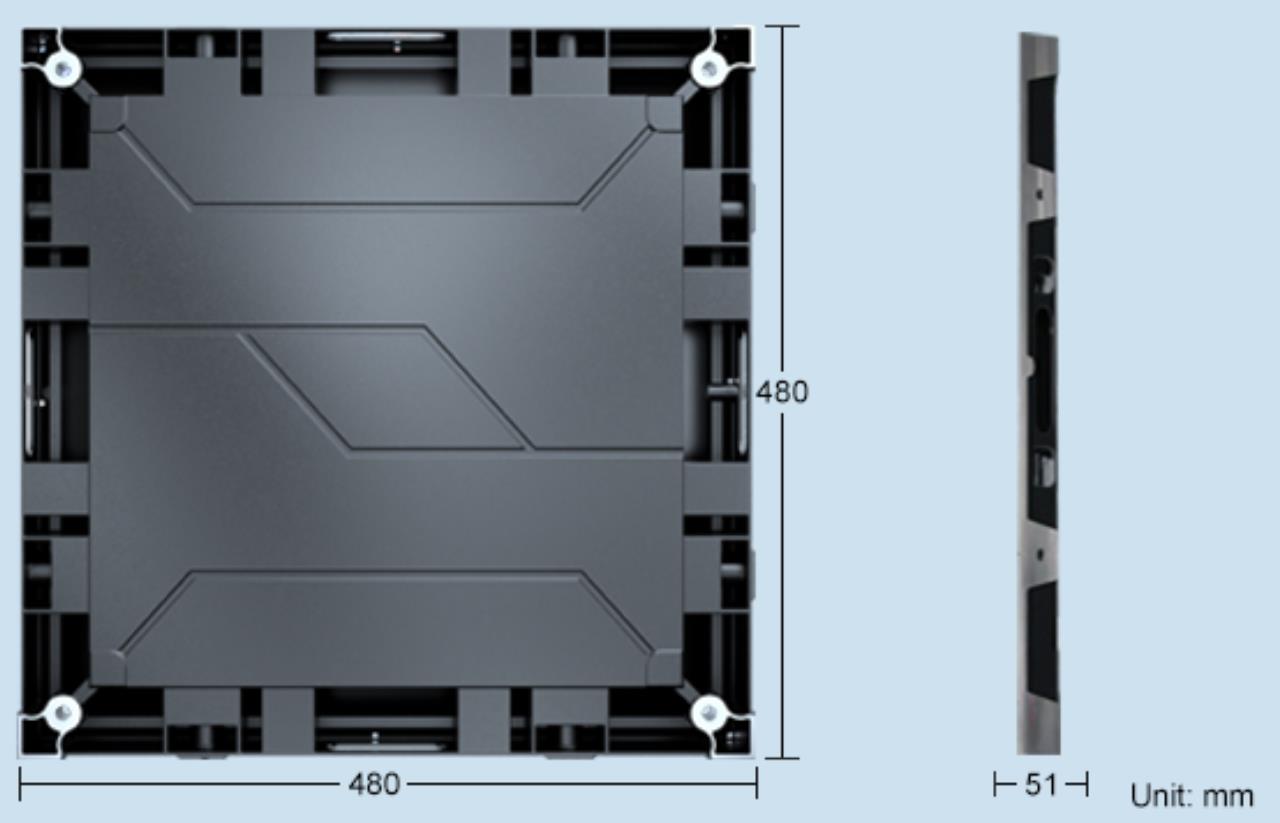

1:1 ration 480X480mm Light weight LED Cabinet, High Flatness

Easy to be handed for carring ,assembling and installation with good viewing effect

Complete installation with plates and hex-head bolts, enables users to install the cabinets from either rear side or front side

Square and Corner Seamless Design

Cabinet could be design 45 degree edge design, Corner seamless led display and square LED display type could be supported

Parameter

	MI-S1.57	MI-S1.87
Pixel Pitch	1.57mm	1.87mm
Pixel Configuration	SMD1212	SMD1515
Module Dimensions (W x H) (mm)	240 x 240	240 x 240
Panel Dimensions (mm)	480X480	480X480
Modules Per Cabinet (W x H)	2X2	2X2
Cabinet Resolution	305 x 305 dots	256 x 256 dots
Panel Material	Die Cast Aluminum	Die Cast Aluminum
Weight per Cabinet	6.5kg	6.5kg
Colours	281 trillion	281 trillion
Contrast Ratio	5,000 : 1	5,000 : 1
Average Power Consumption	200 W /Sqm	200 W /Sqm
Max Power Consumption	500 W /Sqm	500 W /Sqm
Brightness	<=500 nits	<=500 nits
Refresh Rate	>=3,840Hz	>=3,840 Hz
Vertical Viewing Angle	160°	160°
Horizontal Viewing Angle	140°	140°
Expected Lifetime	100,000 Hrs	100,000 Hrs
Servicing	Front	Front
Operating Temp/Humidity	-20ºC - 50ºC / 10% - 90%	-20ºC - 50ºC / 10% - 90%
Storage Temp/Humidity	-20ºC - 50ºC / 10% - 90%	-20ºC - 50ºC / 10% - 90%
Scan Method	1/60 Scan	1/60 Scan
