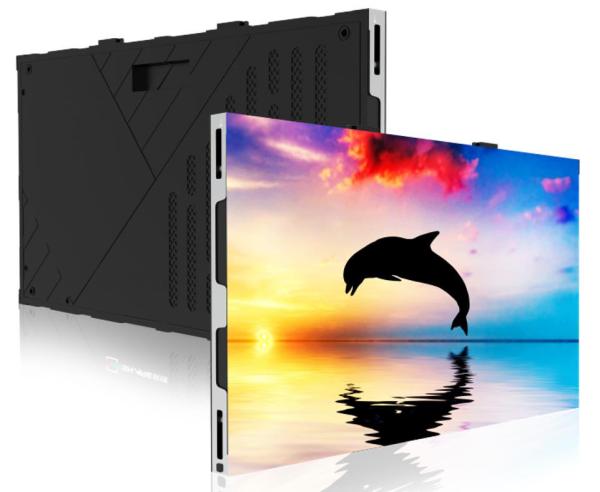

Collision Resistant COB HD LED Display P0.7mm Slim Light LED Panel
Application:
MI-X series 600X337.5mm COB P0.78125mm LED panel with ultra thin,
light weight, perfect HD 4K image quality, widely using in high
profile hotels, securities companies, schools, conference room,
public security, shopping centers and other fields.
Collision resistant, waterproof feautures also wlecome using in
high end bar,aquarium,restaurant or other moist places.
Features and Advantages:
- COB Inversion advantage
COB packaging achieves better video optical performance through
chip level packaging, resulting in more comfortable and soft image
qualityNo significant pixel graininess, more suitable for "closer
range", "indoor ambient light", "longer durationApplications under
conditions such as long-term viewing.
- LED Panel Brief feature below
- Smart cabinet design with picture details
Ultra Slim light and screwless design with fast lock
- Front Mainteance

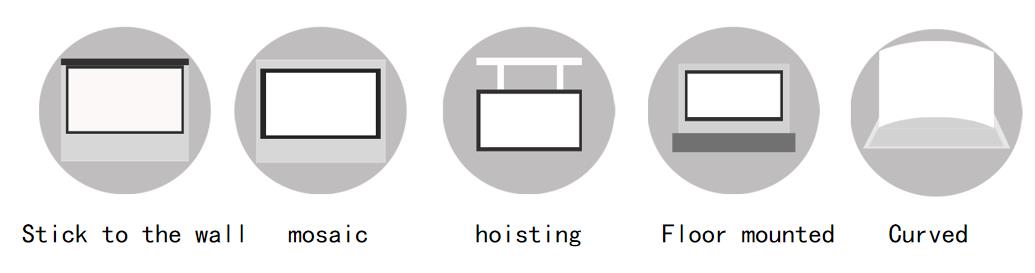

Can be applied to different installation environments
- Ultimate visual enjoyment
Seamless splicing to make 2K,4K,8K HD LED video screen
High refresh rate above 3840hz
Wide viewing angle
Parameters:
| Pixel pitch | mm | 0.78125 |
| Brightness | nits | >=600 |
| Color temperature | deg.k | 1,000-18,500 |
| Viewing angle - Horizontal | deg. | 170(+85/-85) |
| Viewing angle - Vertical | deg. | 170(+85/-85) |
| Cabinet weight | kg | 4.5 |
| Cabinet width | mm | 600 |
| Cabinet height | mm | 337.5 |
| Cabinet depth | mm | 27.5 |
| Cabinet material | | Die-cast Aluminum |
| Operating temperature range | deg. C | -20 to 60 |
| Operating humidity range | HR | 10％ to 85％ |
| Pixel type and configuration | R/G/B | Inversion |
| Pixel matrix per cabinet | dots | 768X512 |
| LED module size(WXH) | mm | 150X168.75 |
| Module resolution(WXH) | dots | 192X216 |
| Gray scale | Levels | 65536 levels per colour |
| Brightness control | Levels | 100 |
| Frame rate | Hertz | 60 |
| Display refresh rate | Hertz | 3840 |
| Input voltage | VAC | 110/240 |
| Input power frequency | Hertz | 50/60 |
| Power (max/avg) | Watts per sq.m | 450/150 |
| Grey scale level | bits | 16 |
