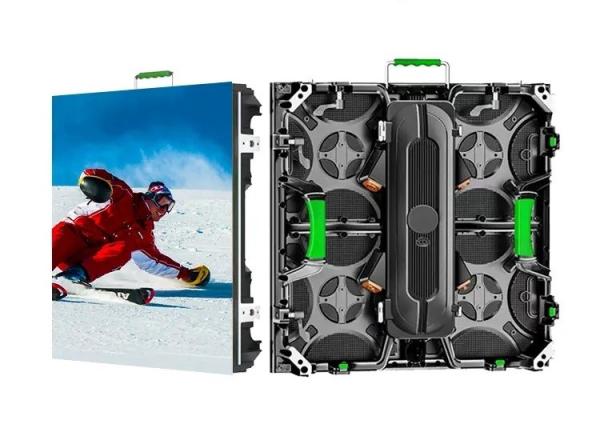

AC110V AC220V Outdoor Stage Rental LED Display P2.6mm For Live Show
Quick Details:
- Pixel Pitch: P2.604mm.
- Quality and High Contrast SMD LEDs, Wide viewing angle: 160°/
160°.
- Greyscale: 16bits with NOVA Star
- Cabinet size: 500x500mm die-casting aluminum
- Recommended minimum viewing distance: 2m.
- Cabinet Material: Die Cast Aluminum Cabinet, 8kg Weight
- Refresh Rate: 3840Hz
- Quality Certificate:CE, RoHS,FCC, ETL
- Brightness:>4000cd/sqm
- Curve Installation: Yes, Concave and Convex Available
- Corner Protector: Available
Parameters:
| Model | D-HK2.6 | D-HK2.9 | D-HK3.9 | D-HK4.8 |
| Pixel Pitch | 2.604mm | 2.976mm | 3.91mm | 4.81mm |
| Pixel Configuration | SMD1415 | SMD1415 | SMD1921 | SMD1921 |
| Pixel Density | 147,456 pixels/m2 | 112,896 pixels/m2 | 65,536 pixels/m2 | 43,264 pixels/m2 |
| Module Dimensions (W x H) (mm) | 250 x 250 | 250 x 250 | 250 x 250 | 250 x 250 |
| Panel Dimensions (mm) | 500 x 500 x 80 | 500 x 500 x 80 | 500 x 500 x 80 | 500 x 500 x 80 |
| Modules Per Cabinet (W x H) | 2 x 2 | 2 x 2 | 2 x 2 | 2 x 2 |
| Module Resolution | 96 x 96 | 84 x 84 | 64 x 64 | 52 x 52 |
| Cabinet Resolution | 192 x 192 | 168 x 168 | 128 x 128 | 104 x 104 |
| Panel Material | Die Cast Aluminum | Die Cast Aluminum | Die Cast Aluminum | Die Cast Aluminum |
| Weight per Cabinet | 8kg | 8kg | 8kg | 8kg |
| Colours | 281 trillion | 281 trillion | 281 trillion | 281 trillion |
| Contrast Ratio | 5,000 : 1 | 5,000 : 1 | 5,000 : 1 | 5,000 : 1 |
| Average Power Consumption | 280 W /Sqm | 280 W /Sqm | 280 W /Sqm | 280 W /Sqm |
| Max Power Consumption | 800 W /Sqm | 800 W /Sqm | 800 W /Sqm | 800 W /Sqm |
| Brightness | >5,000 nits | >5,000 nits | >5,000 nits | >5,000 nits |
| Refresh Rate | >3,840Hz | >3,840Hz | >3,840 Hz | >3,840 Hz |
| Vertical Viewing Angle | 160° | 160° | 160° | 160° |
| Horizontal Viewing Angle | 160° | 160° | 160° | 160° |
| Expected Lifetime | 100,000 Hrs | 100,000 Hrs | 100,000 Hrs | 100,000 Hrs |
| Servicing | Front/Rear | Front/Rear | Front/Rear | Front/Rear |
| IP Rating (Front/Rear) | IP 65 | IP 65 | IP 65 | IP 65 |
| Operating Temp/Humidity | -20ºC - 50ºC / 10% - 90% | -20ºC - 50ºC / 10% - 90% | -20ºC - 50ºC / 10% - 90% | -20ºC - 50ºC / 10% - 90% |
| Storage Temp/Humidity | -20ºC - 50ºC / 10% - 90% | -20ºC - 50ºC / 10% - 90% | -20ºC - 50ºC / 10% - 90% | -20ºC - 50ºC / 10% - 90% |
Our Services
- 20 Years professional led display manufacturer
- Short delivery time: 5-15 working days, adjustable according to
customer request
- Wholesale price
- OEM and ODM service
- CE, ROHS, FCC, ETL, TUV certified supplier
FAQ
Q1. How does the semi auto corner protector work?
A: Gently push the button, the corner protector will release and
cover the corner area.
Q2. What installation options do we have?
A: Either stacking on ground or haning is supported.
Q3. Do you have any MOQ limit for led screen order?
A: Low MOQ, modules or complete screen order are all welcome.
Q4. What's the shipping method?
A: Air freight, sea and train transport according to different
region.
Q5. What's the payment method?
A: Mostly we accpet telegraphic transfer, 50% before production and
50% balance before shipment.
Q6. How do you control the production quality?
A: We manage quality starting from incoming material, all leds, ICs
and PSU are pre-inspected then go to the production line.
The modules and complete screen will have at least 72 hours aging
test, to make sure stable quality and performance.
Q7: How does warranty work?
A: We provide 1-3 years warranty for different product. Free Repair
or Exchange of Defective Parts with One way Shipping
