P3.91mm Curved Led Video Wall Wide Viewing Angle For Outdoor Stage
Events
Quick Details:
- Pixel Pitch: P3.91mm

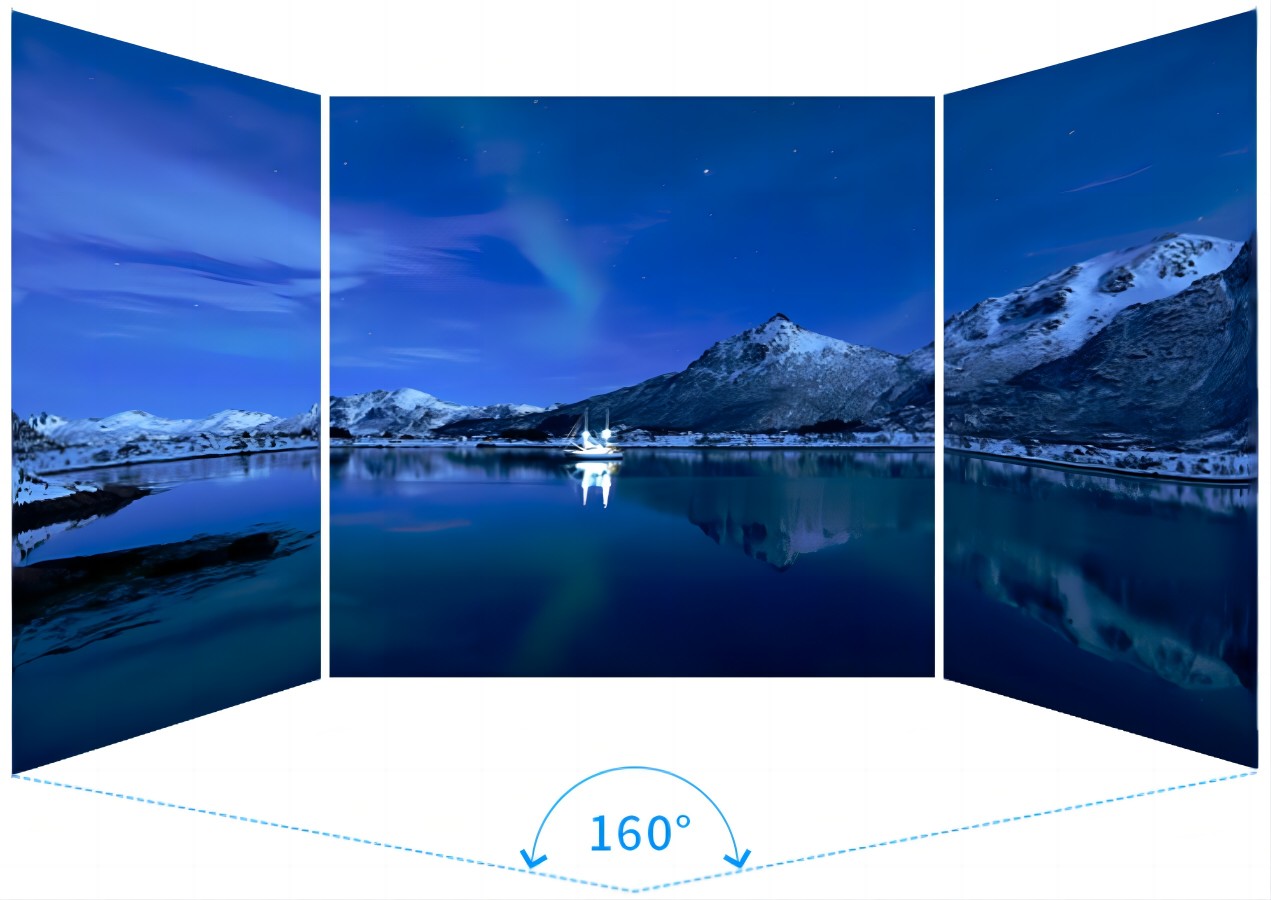

- Quality and High Contrast SMD LEDs, Wide viewing angle: 160°/
160°
- High Refresh, High contrast ratio, High grey scale
- Cabinet size: 500x500mm Die Cast Aluminum

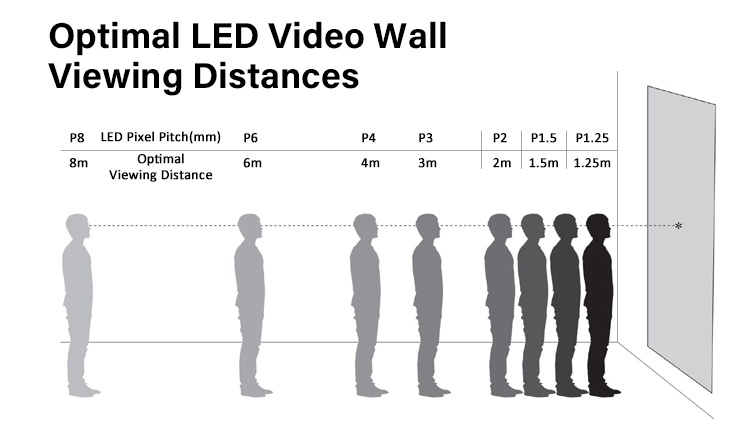

- Recommended minumum vewing distance: 3-4m.
- Cabinet Material: Die Cast Aluminum Cabinet, 8kg Weight
- Waterproof IP65 rate
- Quality Certificate:CE, RoHS,FCC, ETL
- Brightness:>5000nits
- Curve Installation: Yes, Concave and Convex Available
- Corner Protector: Available
Parameters:
| Model | D-HK2.6 | D-HK2.9 | D-HK3.9 | D-HK4.8 |
| Pixel Pitch | 2.604mm | 2.976mm | 3.91mm | 4.81mm |
| Pixel Configuration | SMD1415 | SMD1415 | SMD1921 | SMD1921 |
| Pixel Density | 147,456 pixels/m2 | 112,896 pixels/m2 | 65,536 pixels/m2 | 43,264 pixels/m2 |
| Module Dimensions (W x H) (mm) | 250 x 250 | 250 x 250 | 250 x 250 | 250 x 250 |
| Panel Dimensions (mm) | 500 x 500 x 80 | 500 x 500 x 80 | 500 x 500 x 80 | 500 x 500 x 80 |
| Modules Per Cabinet (W x H) | 2 x 2 | 2 x 2 | 2 x 2 | 2 x 2 |
| Module Resolution | 96 x 96 | 84 x 84 | 64 x 64 | 52 x 52 |
| Cabinet Resolution | 192 x 192 | 168 x 168 | 128 x 128 | 104 x 104 |
| Panel Material | Die Cast Aluminum | Die Cast Aluminum | Die Cast Aluminum | Die Cast Aluminum |
| Weight per Cabinet | 8kg | 8kg | 8kg | 8kg |
| Colours | 281 trillion | 281 trillion | 281 trillion | 281 trillion |
| Contrast Ratio | 5,000 : 1 | 5,000 : 1 | 5,000 : 1 | 5,000 : 1 |
| Average Power Consumption | 280 W /Sqm | 280 W /Sqm | 280 W /Sqm | 280 W /Sqm |
| Max Power Consumption | 800 W /Sqm | 800 W /Sqm | 800 W /Sqm | 800 W /Sqm |
| Brightness | >5,000 nits | >5,000 nits | >5,000 nits | >5,000 nits |
| Refresh Rate | >3,840Hz | >3,840Hz | >3,840 Hz | >3,840 Hz |
| Vertical Viewing Angle | 160° | 160° | 160° | 160° |
| Horizontal Viewing Angle | 160° | 160° | 160° | 160° |
| Expected Lifetime | 100,000 Hrs | 100,000 Hrs | 100,000 Hrs | 100,000 Hrs |
| Servicing | Front/Rear | Front/Rear | Front/Rear | Front/Rear |
| IP Rating (Front/Rear) | IP 65 | IP 65 | IP 65 | IP 65 |
| Operating Temp/Humidity | -20ºC - 50ºC / 10% - 90% | -20ºC - 50ºC / 10% - 90% | -20ºC - 50ºC / 10% - 90% | -20ºC - 50ºC / 10% - 90% |
| Storage Temp/Humidity | -20ºC - 50ºC / 10% - 90% | -20ºC - 50ºC / 10% - 90% | -20ºC - 50ºC / 10% - 90% | -20ºC - 50ºC / 10% - 90% |
Advantages Of Outdoor Rental LED Screen
First, create an atmosphere. On the traditional stage, people see
the dance movements of the actors, and the vision will be attracted
by the gorgeous costumes of the dancers, so it is difficult for
users to truly feel the deep meaning of the dance. Now, through the
use of LED display screen on the stage, during the performance, the
LED display screen plays the corresponding background picture, so
as to create an atmosphere in line with the dance theme, so that
users can be more immersed in the performance. Second, shocking
visual effects In the general performance process, people will be
shocked by the uniform movements of the dancers, while the stage
integrated with LED display screen, through delicate and lifelike
pictures and dance movements following the music, closes the
distance between the audience and the actors, presents a shocking
performance, and brings more sensory experience to the audience.
Third, the scene is changeable. Generally, multiple scenes are used
in the stage to fit different programs, and LED display can achieve
this effect well. Flexible and changeable scene changes can
complete the switching of pictures in an instant, while displaying
clear pictures, rich content and realistic effects, bringing the
audience the enjoyment of beauty. The application of LED display
screen on the stage brings the situation into full play, displays
the aesthetic feeling of the stage in an all-round way, creates an
aesthetic visual effect, and brings strong visual impact to users.
Q7: How does warranty work?
A: We provide 1-3 years warranty for different product. Free Repair
or Exchange of Defective Parts with One way Shipping
