P3.91mm High Definition Outdoor Full Color Events LED Video Wall
Panel
Application:
D-XH Series Led rental displays are widely used in stage planning,
fashion conferences, art and literature groups, cinemas, theatres,
television stations, wedding celebrations, enterprise annual
conferences, industry exhibitions, museums, large conferences, etc
Main Features: Light weight, thin box, good flatness, zero seam,
fast disassembly and assembly, fashionable appearance, and can be
used indoors and outdoors.
Quick Details:
- Pixel Pitch: P3.91mm
- Curve Lock,Curved Installation
- Front and Rear Service Design
- Cabinet can be stacked
- Corner Protector
- IP65 Dustproof And Waterproof
- Lightweight and Thin-500X1000mm-15kg
- High refresh rate, High contrast ration,High grey scale
Features:
- D-XH series cabinet with ultra slim and lightweight design,
removable back cover ,high-precision curve lock for curved
installation, LED corner protector, magnetic module, waterproof
IP65.

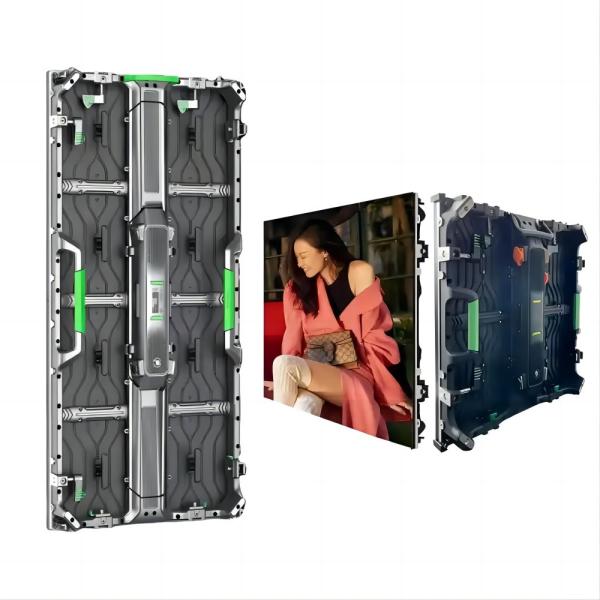

500X1000mm standard cabinet size, Die-casting aluminum with
thickness 80mm. For easy transport and portable;
Excellent product came in all details from cabinet handle - cabinet
fxied slot, fast lock,magnet adsorption module, module installation
knob, power& signal connector, detachable power boxing, and more
- Front and Rear Service Design
D-XH series LED display adopts Magnet Adsorption LED Panel to make
the cabinet is accessed with frontal & rear design. easy
installation for LED panels.
- High Precision Curve Lock
Adopt high-precision curve lock design (-10° to +10°), rotation
control, more accurate,easy to use, and quickly adjust the degree
of curve.
- The LED screen has four corners to prevent damage to the
LED,Transportation, installation, operation,disassembly and
assembly are more secure and easy to use.
- Wide Viewing angle, High brightness above 5000nits, High Refresh
rate, High Grey scale...taking excellent visual effect.
Parameters:
| Model | D-XH2.6 | D-XH2.9 | D-XH3.9 | D-XH4.8 |
| Pixel Pitch | 2.604mm | 2.976mm | 3.91mm | 4.81mm |
| Pixel Configuration | SMD1415 | SMD1415 | SMD1921 | SMD1921 |
| Pixel Density | 147,456 pixels/m2 | 112,896 pixels/m2 | 65,536 pixels/m2 | 43,264 pixels/m2 |
| Module Dimensions (W x H) (mm) | 250 x 250 | 250 x 250 | 250 x 250 | 250 x 250 |
| Panel Dimensions (mm) | 500 x 1000 x 80 | 500 x 1000 x 80 | 500 x 1000 x 80 | 500 x 1000 x 80 |
| Modules Per Cabinet (W x H) | 2 x 4 | 2 x 4 | 2 x 4 | 2 x 4 |
| Module Resolution | 96 x 96 | 84 x 84 | 64 x 64 | 52 x 52 |
| Cabinet Resolution | 192 x 384 | 168 x 336 | 128 x 256 | 104 x 208 |
| Panel Material | Die Cast Aluminum | Die Cast Aluminum | Die Cast Aluminum | Die Cast Aluminum |
| Weight per Cabinet | 15kg | 15kg | 15kg | 15kg |
| Colours | 281 trillion | 281 trillion | 281 trillion | 281 trillion |
| Contrast Ratio | 5,000 : 1 | 5,000 : 1 | 5,000 : 1 | 5,000 : 1 |
| Average Power Consumption | 280 W /Sqm | 280 W /Sqm | 280 W /Sqm | 280 W /Sqm |
| Max Power Consumption | 800 W /Sqm | 800 W /Sqm | 800 W /Sqm | 800 W /Sqm |
| Brightness | >5,000 nits | >5,000 nits | >5,000 nits | >5,000 nits |
| Refresh Rate | >3,840Hz | >3,840Hz | >3,840 Hz | >3,840 Hz |
| Vertical Viewing Angle | 160° | 160° | 160° | 160° |
| Horizontal Viewing Angle | 160° | 160° | 160° | 160° |
| Expected Lifetime | 100,000 Hrs | 100,000 Hrs | 100,000 Hrs | 100,000 Hrs |
| Servicing | Front/Rear | Front/Rear | Front/Rear | Front/Rear |
| IP Rating (Front/Rear) | IP 65 | IP 65 | IP 65 | IP 65 |
| Operating Temp/Humidity | -20ºC - 50ºC / 10% - 90% | -20ºC - 50ºC / 10% - 90% | -20ºC - 50ºC / 10% - 90% | -20ºC - 50ºC / 10% - 90% |
| Storage Temp/Humidity | -20ºC - 50ºC / 10% - 90% | -20ºC - 50ºC / 10% - 90% | -20ºC - 50ºC / 10% - 90% | -20ºC - 50ºC |
