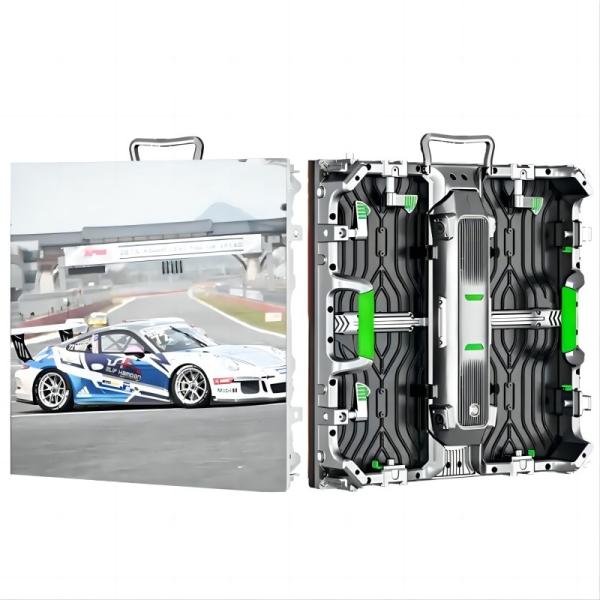

P4.81mm 500x500mm Outdoor Rental LED Display for Event, Concert,
live show
Features:
- Ultra light - weight is only 8kg, can be lifted by one hand, and
installation is fast.
- Ultra-thin - the box is made of die-cast aluminum, with high
strength, toughness, precision and deformation resistance, which
saves labor for transportation.
- High precision - the dimension is accurate to 0.1mm for
electromechanical processing.
- Compatibility - new structural design, meeting the requirements
of hoisting and stacking, and indoor and outdoor requirements.
- Fast - the box is connected up, down, left and right with a fast
locking mechanism, The installation of a box can be completed in 10
seconds, with high installation accuracy
- Reliable - high strength and hardness, good heat dissipation
effect.
- Cost - the weight of the box is light and the installation cost
is low; Low power consumption of box, saving operation cost and
labor cost.
Usage:
1. Small magnetic element has been placed at the top of the cabinet
for the secondary installation process. 2. Die-casting aluminum cabinet design, lightweight and ultra-thin, high
precision.
3. The module and power supply can be quickly disassembled andassembled, the module can be installed and maintained from the
front side.
4. Correction: The brightness and color correction toensure the consistency and uniformity of the entire screen; 5.
Noiseless: no fan, screen noise ≤ 40DB; does not affect the on-site audio-visual effect;
6. High refresh rate, continuous shooting with SLR 1/3000S shutter,
no flicker, no ghost scanning lines.
7.It is suitable for professional places that require high-definition
background display such as conference halls, museums,exhibition halls, etc.
Parameters:
| Model | D-XH2.6 | D-XH2.9 | D-XH3.9 | D-XH4.8 |
| Pixel Pitch | 2.604mm | 2.976mm | 3.91mm | 4.81mm |
| Pixel Configuration | SMD1415 | SMD1415 | SMD1921 | SMD1921 |
| Pixel Density | 147,456 pixels/m2 | 112,896 pixels/m2 | 65,536 pixels/m2 | 43,264 pixels/m2 |
| Module Dimensions (W x H) (mm) | 250 x 250 | 250 x 250 | 250 x 250 | 250 x 250 |
| Panel Dimensions (mm) | 500 x 500 x 80 | 500 x 500 x 80 | 500 x 500 x 80 | 500 x 500 x 80 |
| Modules Per Cabinet (W x H) | 2 x 2 | 2 x 2 | 2 x 2 | 2 x 2 |
| Module Resolution | 96 x 96 | 84 x 84 | 64 x 64 | 52 x 52 |
| Cabinet Resolution | 192 x 192 | 168 x 168 | 128 x 128 | 104 x 104 |
| Panel Material | Die Cast Aluminum | Die Cast Aluminum | Die Cast Aluminum | Die Cast Aluminum |
| Weight per Cabinet | 8kg | 8kg | 8kg | 8kg |
| Colours | 281 trillion | 281 trillion | 281 trillion | 281 trillion |
| Contrast Ratio | 5,000 : 1 | 5,000 : 1 | 5,000 : 1 | 5,000 : 1 |
| Average Power Consumption | 280 W /Sqm | 280 W /Sqm | 280 W /Sqm | 280 W /Sqm |
| Max Power Consumption | 800 W /Sqm | 800 W /Sqm | 800 W /Sqm | 800 W /Sqm |
| Brightness | >5,000 nits | >5,000 nits | >5,000 nits | >5,000 nits |
| Refresh Rate | >3,840Hz | >3,840Hz | >3,840 Hz | >3,840 Hz |
| Vertical Viewing Angle | 160° | 160° | 160° | 160° |
| Horizontal Viewing Angle | 160° | 160° | 160° | 160° |
| Expected Lifetime | 100,000 Hrs | 100,000 Hrs | 100,000 Hrs | 100,000 Hrs |
| Servicing | Front/Rear | Front/Rear | Front/Rear | Front/Rear |
| IP Rating (Front/Rear) | IP 65 | IP 65 | IP 65 | IP 65 |
| Operating Temp/Humidity | -20ºC - 50ºC / 10% - 90% | -20ºC - 50ºC / 10% - 90% | -20ºC - 50ºC / 10% - 90% | -20ºC - 50ºC / 10% - 90% |
| Storage Temp/Humidity | -20ºC - 50ºC / 10% - 90% | -20ºC - 50ºC / 10% - 90% | -20ºC - 50ºC / 10% - 90% | -20ºC - 50ºC / 10% - 90% |
