500x1000mm P2.6mm Outdoor Rental LED Screen 3840Hz Removable Power
Card Box
Quick Details:
- Ultra thin and lightweight, 500X1000mm, 15kg
- Pixel Pitch P2.6mm, best minumum viewing distance 2.6m
- Refresh rate 3840hz,High grey scale 16bits, High contrast Ration
5000:1
- Package by flight case, support 5pcs in one, 6pcs in one, 7pcs in
one, 8pcs in one
Features:
- Lightweight and Slim
Die cast aluminum cabinet with weight of 15kg/cabinet and thickness
of 80mm. Easy to operate,
transport and assembling, saving time and labor cost.
- Seamless 90 Degree Angle Installatio
Corner cabinet can be 45 degree edge, to create seamless 90 degree
corner.
- Removable Power Box
Removable Power Box with pin connection design, better image
quality and easy for maintenance
- Concave and Convex Installation
Flexible Installation method to meet different applicatioin
scenarios. Curved with every 2.5° between -10°and 10°, which can
make convex and concave.

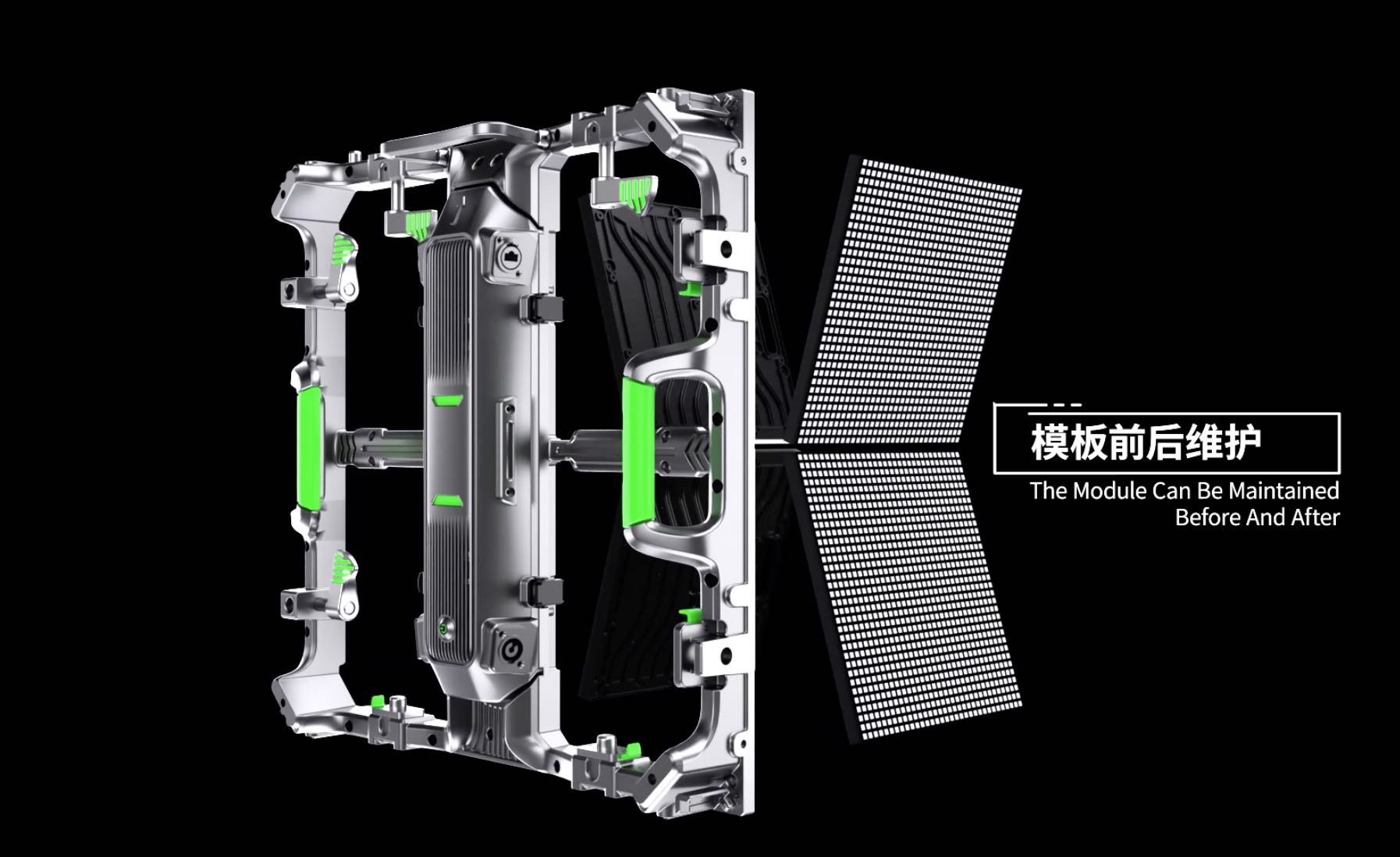

- Front & Rear Maintenance
Giant Series Rental LED Display is dual maintenance product, the
LED panels are magnetic and can be removed by tools from the front
side in 5 seconds. Easy and convenient, save your cost and labor

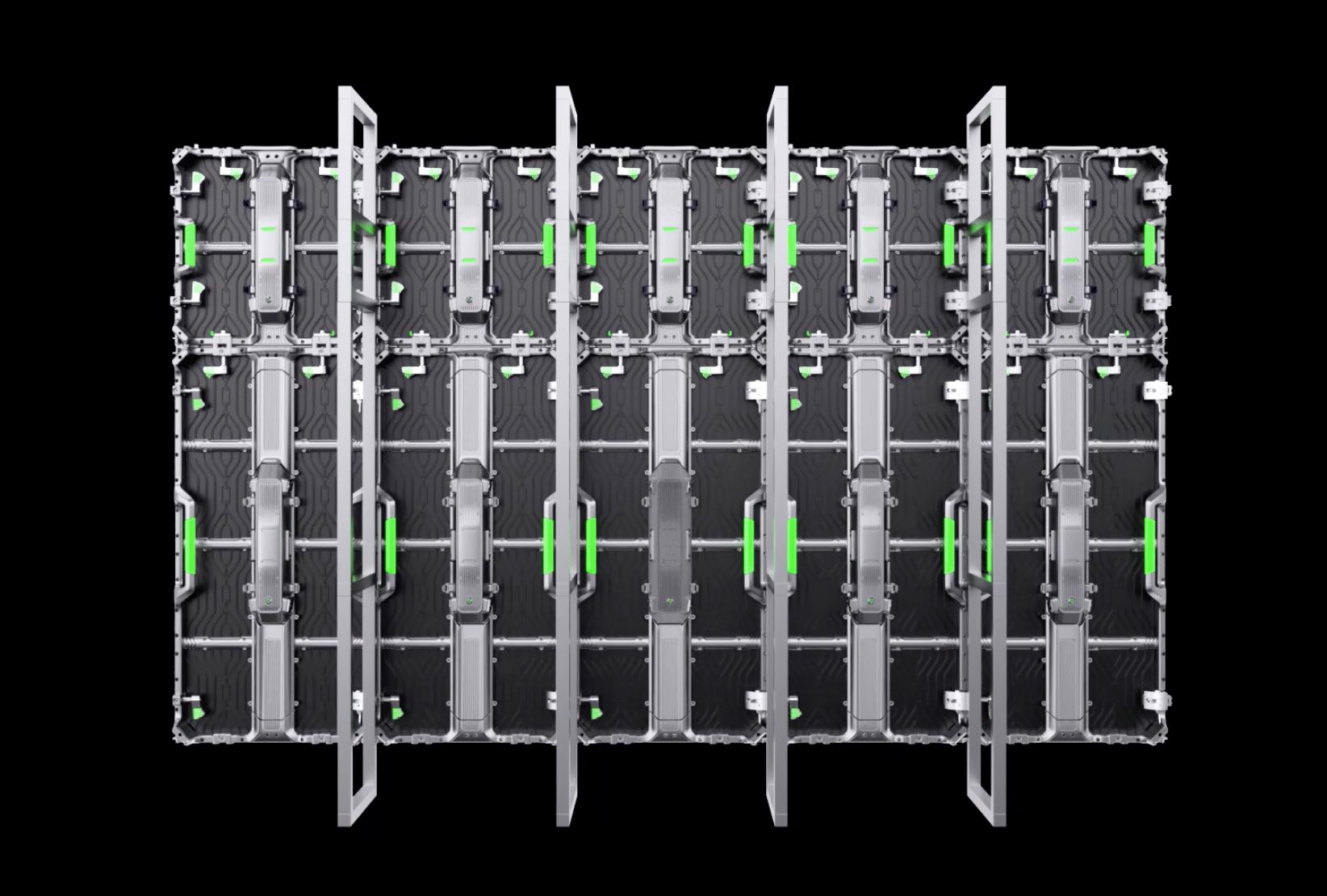

- Mix Use
500x500mm and 500x1000mm cabinet can mix assembling, more flexible
to create the exact size customer want
Parameters:
| Model | D-XH2.6 | D-XH2.9 | D-XH3.9 | D-XH4.8 |
| Pixel Pitch | 2.604mm | 2.976mm | 3.91mm | 4.81mm |
| Pixel Configuration | SMD1415 | SMD1415 | SMD1921 | SMD1921 |
| Pixel Density | 147,456 pixels/m2 | 112,896 pixels/m2 | 65,536 pixels/m2 | 43,264 pixels/m2 |
| Module Dimensions (W x H) (mm) | 250 x 250 | 250 x 250 | 250 x 250 | 250 x 250 |
| Panel Dimensions (mm) | 500 x 1000 x 80 | 500 x 1000 x 80 | 500 x 1000 x 80 | 500 x 1000 x 80 |
| Modules Per Cabinet (W x H) | 2 x 4 | 2 x 4 | 2 x 4 | 2 x 4 |
| Module Resolution | 96 x 96 | 84 x 84 | 64 x 64 | 52 x 52 |
| Cabinet Resolution | 192 x 384 | 168 x 336 | 128 x 256 | 104 x 208 |
| Panel Material | Die Cast Aluminum | Die Cast Aluminum | Die Cast Aluminum | Die Cast Aluminum |
| Weight per Cabinet | 15kg | 15kg | 15kg | 15kg |
| Colours | 281 trillion | 281 trillion | 281 trillion | 281 trillion |
| Contrast Ratio | 5,000 : 1 | 5,000 : 1 | 5,000 : 1 | 5,000 : 1 |
| Average Power Consumption | 280 W /Sqm | 280 W /Sqm | 280 W /Sqm | 280 W /Sqm |
| Max Power Consumption | 800 W /Sqm | 800 W /Sqm | 800 W /Sqm | 800 W /Sqm |
| Brightness | >5,000 nits | >5,000 nits | >5,000 nits | >5,000 nits |
| Refresh Rate | >3,840Hz | >3,840Hz | >3,840 Hz | >3,840 Hz |
| Vertical Viewing Angle | 160° | 160° | 160° | 160° |
| Horizontal Viewing Angle | 160° | 160° | 160° | 160° |
| Expected Lifetime | 100,000 Hrs | 100,000 Hrs | 100,000 Hrs | 100,000 Hrs |
| Servicing | Front/Rear | Front/Rear | Front/Rear | Front/Rear |
| IP Rating (Front/Rear) | IP 65 | IP 65 | IP 65 | IP 65 |
| Operating Temp/Humidity | -20ºC - 50ºC / 10% - 90% | -20ºC - 50ºC / 10% - 90% | -20ºC - 50ºC / 10% - 90% | -20ºC - 50ºC / 10% - 90% |
| Storage Temp/Humidity | -20ºC - 50ºC / 10% - 90% | -20ºC - 50ºC / 10% - 90% | -20ºC - 50ºC / 10% - 90% | -20ºC - 50ºC / 10% - 90% |
