500x1000mm Rental P2.6 P2.9 Indoor LED Display for movable events
Indoor Rental LED Display 500x1000mm Die Cast Aluminum With 3840Hz
Refresh Rate
Indoor 500x1000mm Stage Rental LED Display 3840Hz Refresh Rate
Advantages Of Indoor Rental LED Screen
Rental 500X1000mm-based die-casting aluminum rental LED display
screen, with 500X500 box as the mother mold, which is convenient to
assemble into 10X9X8X7X6X5X4X3X2X1M stage effect size, can splice
radian, can splice right angles, and can stand as a stadium screen.
This series uses Taiwan's accumulation IC scheme. High brush, high
gray, high contrast, light die-cast aluminum material, very
time-saving installation and removal, multi-functional use makes
this series very recognized by customers in the market.
- Arc splicing, the box body has a corner and can be spliced with
radian to meet the stage application
- Quick locking catch, Lightweight quick lock catch
- Lightweight , easy to transport and install
- Brand LED lamp and drive IC. The display is exquisite, the color
is bright and the image is stable
- High refresh rate 3840hz
- Pixel Pitch: 2.604mm, 2.976mm
- Cabinet size: 500x1000mm Die Cast Aluminum
- Cabinet Material: Die Cast Aluminum Cabinet, 7.5kg Weight
- Brightness:>1000cd/sqm

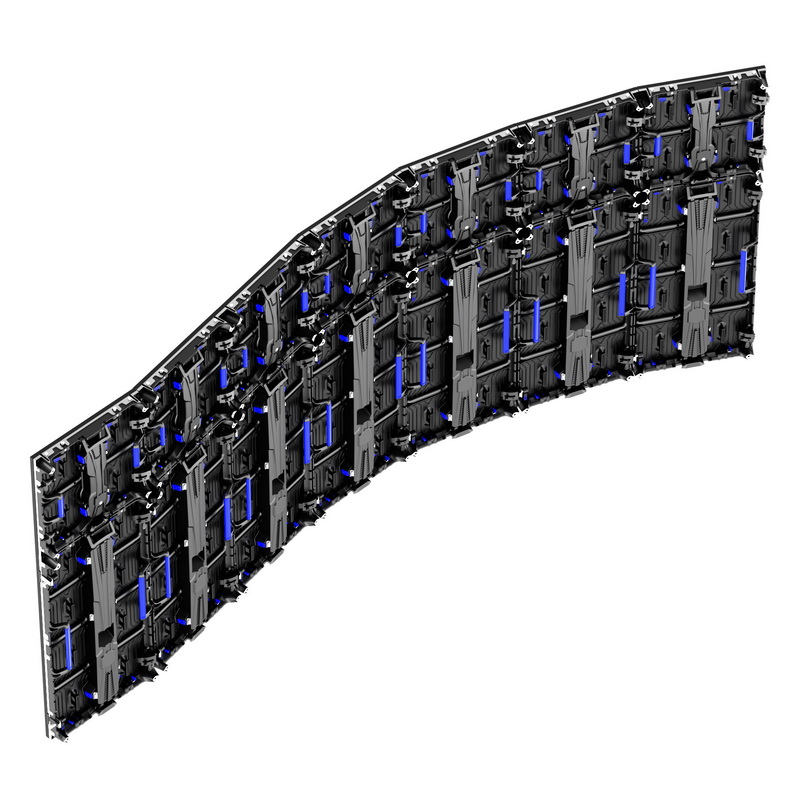

- Curve Installation: Yes, Concave and Convex Available

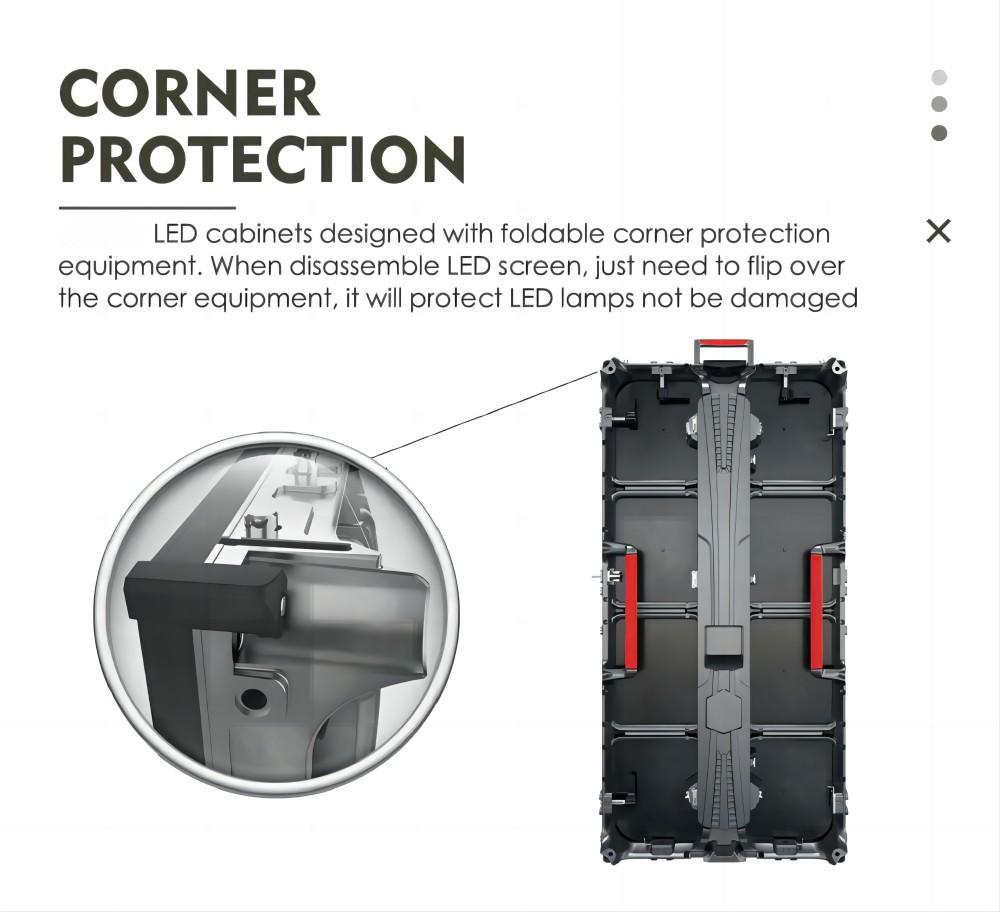

- Corner Protector: Available
- 500X500mm cabinet could mix 500X1000mm cabinet fast without
seamless
Parameters:
| Model | Di-XF2.6 | Di-XF2.9 | Di-XF3.9 | Di-XF4.8 |
| Pixel Pitch | 2.604mm | 2.976mm | 3.91mm | 4.81mm |
| Pixel Configuration | SMD1415 | SMD1415 | SMD1921 | SMD1921 |
| Pixel Density | 147,456 pixels/m2 | 112,896 pixels/m2 | 65,536 pixels/m2 | 43,264 pixels/m2 |
| Module Dimensions (W x H) (mm) | 250 x 250 | 250 x 250 | 250 x 250 | 250 x 250 |
| Panel Dimensions (mm) | 500 x 1000 x 80 | 500 x 1000 x 80 | 500 x 1000 x 80 | 500 x 1000 x 80 |
| Modules Per Cabinet (W x H) | 2 x 4 | 2 x 4 | 2 x 4 | 2 x 4 |
| Module Resolution | 96 x 96 | 84 x 84 | 64 x 64 | 52 x 52 |
| Cabinet Resolution | 192 x 384 | 168 x 336 | 128 x 256 | 104 x 208 |
| Panel Material | Die Cast Aluminum | Die Cast Aluminum | Die Cast Aluminum | Die Cast Aluminum |
| Weight per Cabinet | 14kg | 14kg | 14kg | 14kg |
| Colours | 281 trillion | 281 trillion | 281 trillion | 281 trillion |
| Contrast Ratio | 5,000 : 1 | 5,000 : 1 | 5,000 : 1 | 5,000 : 1 |
| Average Power Consumption | 200 W /Sqm | 200 W /Sqm | 200 W /Sqm | 200 W /Sqm |
| Max Power Consumption | 600 W /Sqm | 600 W /Sqm | 600 W /Sqm | 600 W /Sqm |
| Brightness | >1,000 nits | >1,000 nits | >1,000 nits | >1,000 nits |
| Refresh Rate | >3,840Hz | >3,840Hz | >3,840 Hz | >3,840 Hz |
| Vertical Viewing Angle | 160° | 160° | 160° | 160° |
| Horizontal Viewing Angle | 160° | 160° | 160° | 160° |
| Expected Lifetime | 100,000 Hrs | 100,000 Hrs | 100,000 Hrs | 100,000 Hrs |
| Servicing | Front/Rear | Front/Rear | Front/Rear | Front/Rear |
| IP Rating (Front/Rear) | IP 43 | IP 43 | IP 43 | IP 43 |
| Operating Temp/Humidity | -20ºC - 50ºC / 10% - 90% | -20ºC - 50ºC / 10% - 90% | -20ºC - 50ºC / 10% - 90% | -20ºC - 50ºC / 10% - 90% |
| Storage Temp/Humidity | -20ºC - 50ºC / 10% - 90% | -20ºC - 50ºC / 10% - 90% | -20ºC - 50ºC / 10% - 90% | -20ºC - 50ºC / |
