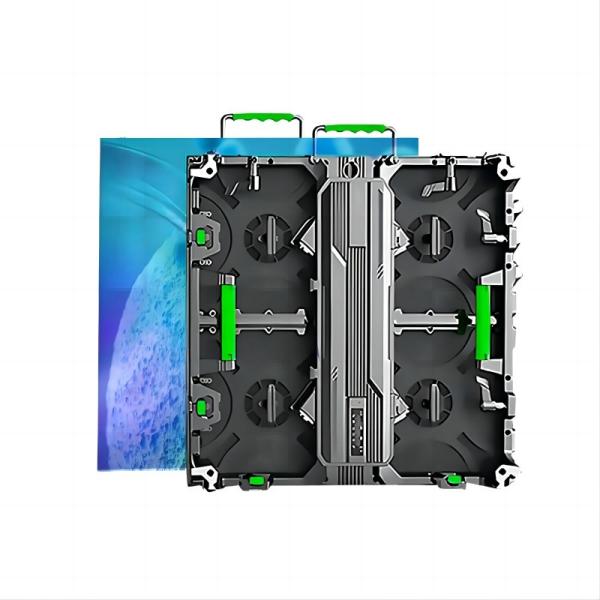

5000 Nits Outdoor Rental LED Display Screen P4.81mm Die Cast
Aluminum Material
Outdoor P4.81mm 500x500mm Die Cast Aluminum Cabinet High Brightness
5000nits With 3840Hz Refresh Rate
Feature Of Outdoor Rental LED Screen
LED rental screen has been the standard for the stage, vivid image
of the wonderful performance with a realistic background switch,
both shocking and stunning, is the stage interpretation of the good
partner, 10,000 people share the excitement, there should be enough
professional display screen, the pursuit of stage interpretation
display, is also being recognized by many customers such a larger
and more professional stage.
- Conwin LED P4.81 LED rental screen, refresh frequency of 3840Hz
or more, clear and delicate picture, color realistic, stable
performance, excellent display effect, giving a kind of immersive
scene experience;.
- The use of standardized box structure, a cast into the shape,
high flatness; easy to disassemble, light quality, convenient
transportation. The lightness of the box, can be quickly installed,
dismantled and transported, infinite compatibility, to meet the
requirements of lifting, stacking and so on.
- The use of synchronous control of the system processing, can
accept DVI, VGA, HDMI, S-video, composite, YUV and other kinds of
video input signal, can play video, graphics and other programs at
will, to real-time, synchronous, clear information dissemination of
various kinds of information.
- High strength hardness precision, good heat dissipation, low
power consumption of the box, energy saving and environmental
protection.
- Canbinet side lockers
Fast installation, lockers on the top and bottom of cabinet.
- Multiple Installation
500x500mm and 500x1000mm cabinets can be easilyspliced upand down,
greatly satisfying different needs of assembling
- Support curve shape with side angle adjustable lock
Parameters:
| Model | D-LU2.6 | D-LU2.9 | D-LU3.9 | D-LU4.8 |
| Pixel Pitch | 2.604mm | 2.976mm | 3.91mm | 4.81mm |
| Pixel Configuration | SMD1415 | SMD1415 | SMD1921 | SMD1921 |
| Pixel Density | 147,456 pixels/m2 | 112,896 pixels/m2 | 65,536 pixels/m2 | 43,264 pixels/m2 |
| Module Dimensions (W x H) (mm) | 250 x 250 | 250 x 250 | 250 x 250 | 250 x 250 |
| Panel Dimensions (mm) | 500 x 500 x 80 | 500 x 500 x 80 | 500 x 500 x 80 | 500 x 500 x 80 |
| Modules Per Cabinet (W x H) | 2 x 2 | 2 x 2 | 2 x 2 | 2 x 2 |
| Module Resolution | 96 x 96 | 84 x 84 | 64 x 64 | 52 x 52 |
| Cabinet Resolution | 192 x 192 | 168 x 168 | 128 x 128 | 104 x 104 |
| Panel Material | Die Cast Aluminum | Die Cast Aluminum | Die Cast Aluminum | Die Cast Aluminum |
| Weight per Cabinet | 8kg | 8kg | 8kg | 8kg |
| Colours | 281 trillion | 281 trillion | 281 trillion | 281 trillion |
| Contrast Ratio | 5,000 : 1 | 5,000 : 1 | 5,000 : 1 | 5,000 : 1 |
| Average Power Consumption | 280 W /Sqm | 260 W /Sqm | 250 W /Sqm | 220 W /Sqm |
| Max Power Consumption | 680 W /Sqm | 650 W /Sqm | 620 W /Sqm | 600 W /Sqm |
| Brightness | >5,000 nits | >5,000 nits | >5,000 nits | >5,000 nits |
| Refresh Rate | >3,840Hz | >3,840Hz | >3,840 Hz | >3,840 Hz |
| Vertical Viewing Angle | 160° | 160° | 160° | 160° |
| Horizontal Viewing Angle | 160° | 160° | 160° | 160° |
| Expected Lifetime | 100,000 Hrs | 100,000 Hrs | 100,000 Hrs | 100,000 Hrs |
| Servicing | Front/Rear | Front/Rear | Front/Rear | Front/Rear |
| IP Rating (Front/Rear) | IP 65 | IP 65 | IP 65 | IP 65 |
| Operating Temp/Humidity | -20ºC - 50ºC / 10% - 90% | -20ºC - 50ºC / 10% - 90% | -20ºC - 50ºC / 10% - 90% | -20ºC - 50ºC / 10% - 90% |
| Storage Temp/Humidity | -20ºC - 50ºC / 10% - 90% | -20ºC - 50ºC / 10% - 90% | -20ºC - 50ºC / 10% - 90% | -20ºC - 50ºC / 10% - 90% |

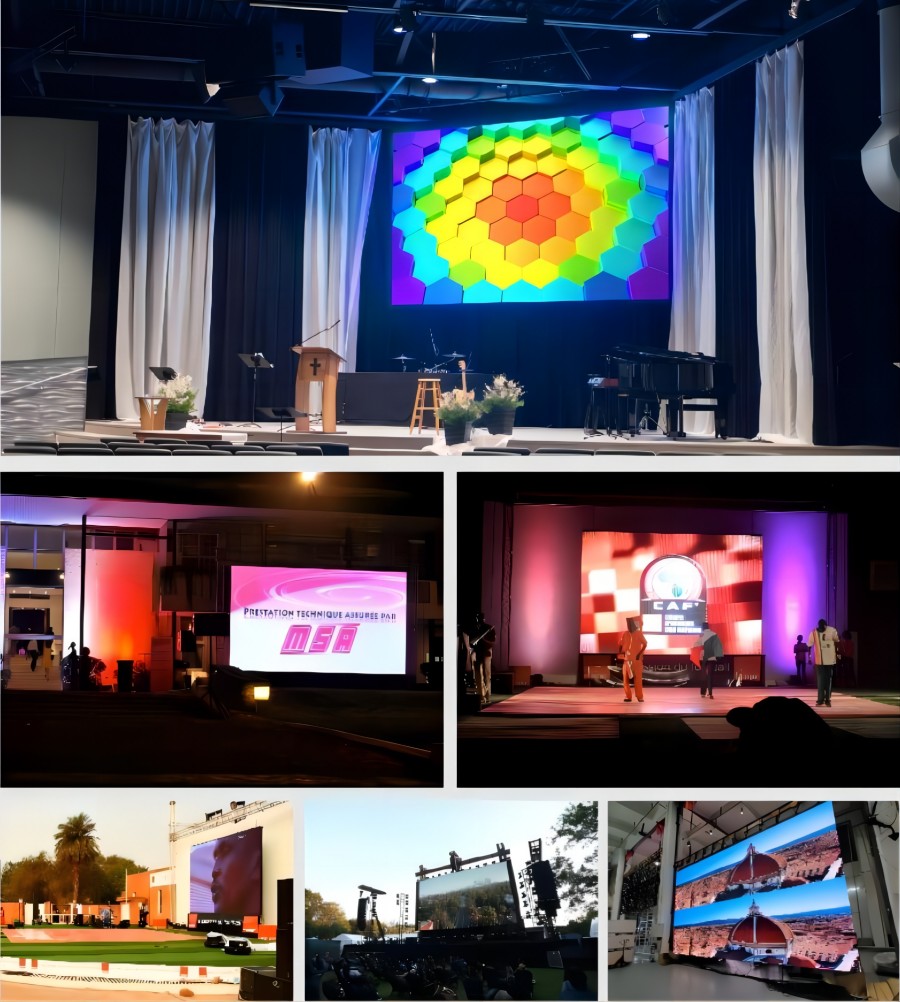

Pictures:
Our Services
1. 20 Years professional led display manufacturer
2. Short delivery time: 5-15 working days, adjustable according to
customer request
3. Wholesale price
4. OEM and ODM service
5. Customizable product upon request
