    P2.6 P2.9 Outdoor Rental LED Display HD High Bright LED Display Panel

    Ask Lasest Price
    Brand Name : Conwin LED Display
    Model Number : D-LN2.6, D-LN2.9
    Certification : FCC, CE, ROHS
    Price : Negotiable
    Payment Terms : T/T, L/C
    Supply Ability : 1,000sqm/month
    Delivery Time : 15days
    • Product Details
    • Company Profile

    P2.6 P2.9 Outdoor Rental LED Display HD High Bright LED Display Panel

    P2.6 P2.9 Outdoor Rental LED Display HD High Bright LED Display Panel


    Features:

    1.Easy Maintenance Independent waterproof module ; front service and rear service by magnet ; quick installation and disassembly; time and labour saving.

    2.Corner Protection Design Protect the vulnerable corners during transportation.

    3.Trinity Positioning System Magnet, pin and linear rail ensure quick installation and precise evenness.

    4.Ultra Slim and Lightweight 8kg/panel, thickness 80mm/panel

    5.Module Security Lock Prevent modules from falling off or loosening due to the vibration or weakened magnet.


    - High Gray scale, High Refresh Rate

    Parameters:

    ModelD-LN2.6D-LN2.9D-LN3.9D-LN4.8
    Pixel Pitch2.604mm2.976mm3.91mm4.81mm
    Pixel ConfigurationSMD1415SMD1415SMD1921SMD1921
    Pixel Density147,456 pixels/m2112,896 pixels/m265,536 pixels/m243,264 pixels/m2
    Module Dimensions (W x H) (mm)250 x 250250 x 250250 x 250250 x 250
    Panel Dimensions (mm)500 x 1000 x 80500 x 1000 x 80500 x 1000 x 80500 x 1000 x 80
    Modules Per Cabinet (W x H)2 x 42 x 42 x 42 x 4
    Module Resolution96 x 9684 x 8464 x 6452 x 52
    Cabinet Resolution192 x 384168 x 336128 x 256104 x 208
    Panel MaterialDie Cast AluminumDie Cast AluminumDie Cast AluminumDie Cast Aluminum
    Weight per Cabinet15kg15kg15kg15kg
    Colours281 trillion281 trillion281 trillion281 trillion
    Contrast Ratio5,000 : 15,000 : 15,000 : 15,000 : 1
    Average Power Consumption280 W /Sqm260 W /Sqm250 W /panel220 W /panel
    Max Power Consumption680 W /Sqm650 W /Sqm620 W /panel600 W /panel
    Brightness>5,000 nits>5,000 nits>5,000 nits>5,000 nits
    Refresh Rate>3,840Hz>3,840Hz>3,840 Hz>3,840 Hz
    Vertical Viewing Angle160°160°160°160°
    Horizontal Viewing Angle160°160°160°160°
    Expected Lifetime100,000 Hrs100,000 Hrs100,000 Hrs100,000 Hrs
    ServicingFront/RearFront/RearFront/RearFront/Rear
    IP Rating (Front/Rear)IP 65IP 65IP 65IP 65
    Operating Temp/Humidity-20ºC - 50ºC / 10% - 90%-20ºC - 50ºC / 10% - 90%-20ºC - 50ºC / 10% - 90%-20ºC - 50ºC / 10% - 90%
    Storage Temp/Humidity-20ºC - 50ºC / 10% - 90%-20ºC - 50ºC / 10% - 90%-20ºC - 50ºC / 10% - 90%-20ºC - 50ºC / 10% - 90%

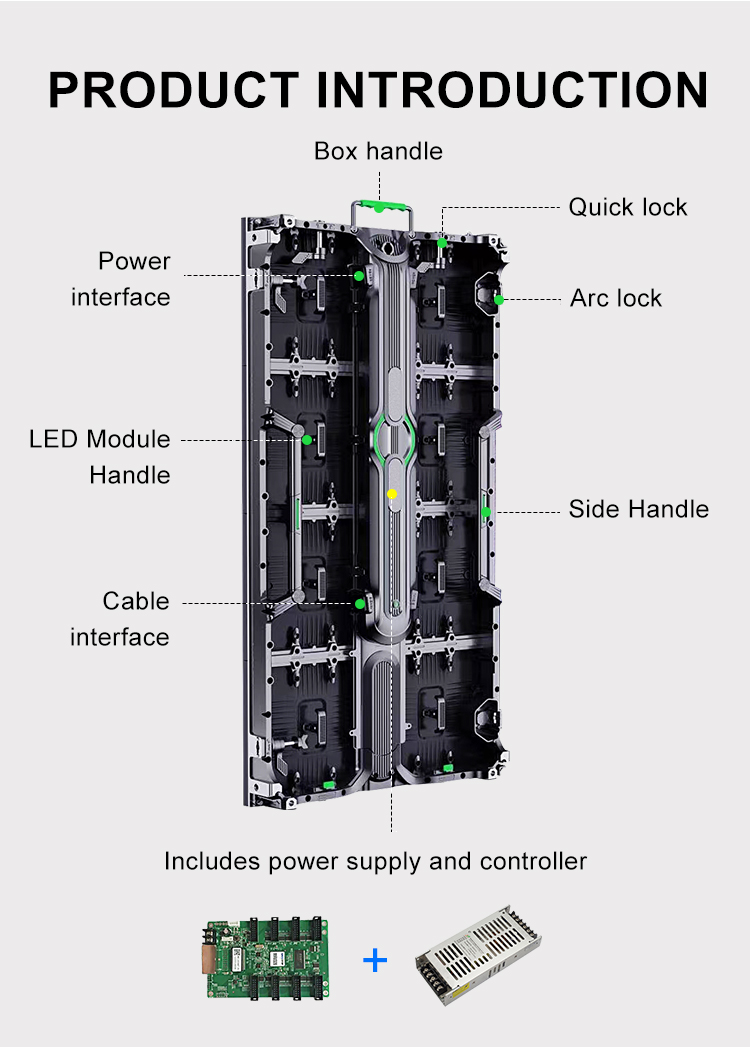

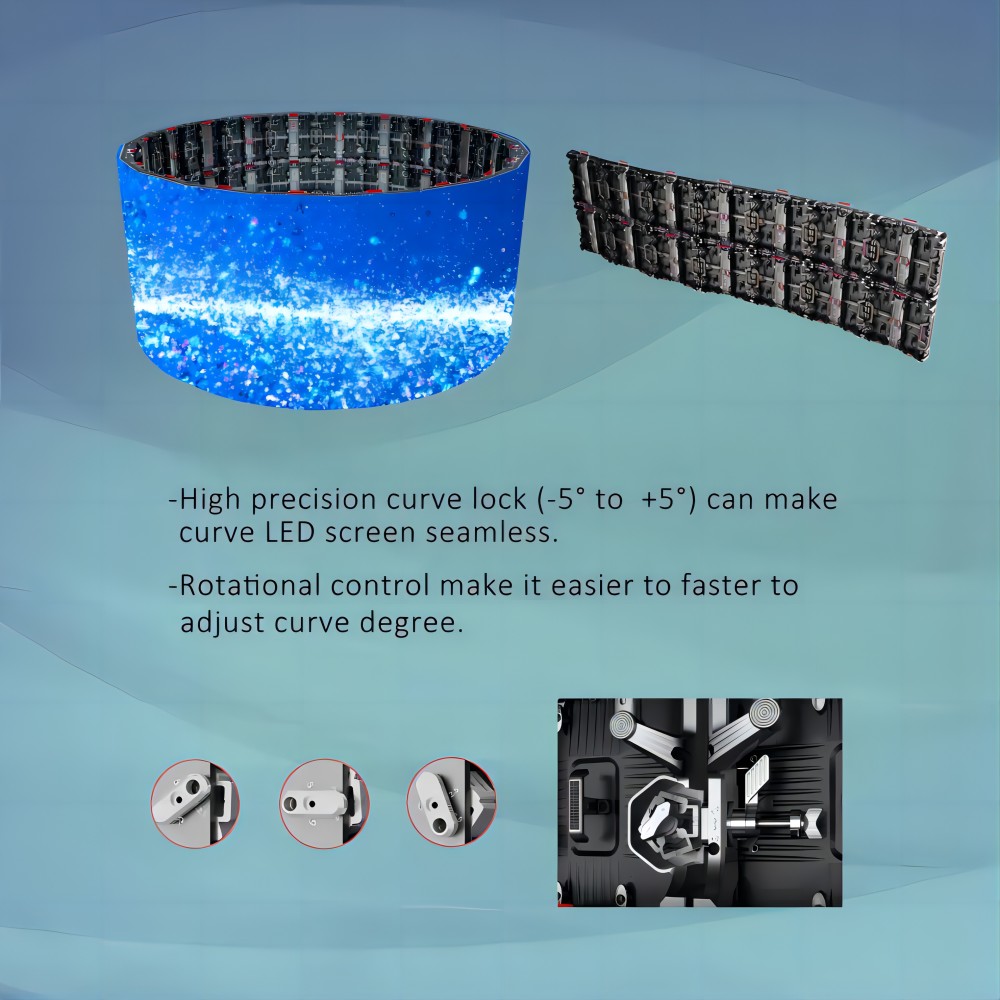

    Pictures:

    FAQ:

    Q1:How to choose a led display?
    A: You should consider 3 simple questions when you choose a led screen by yourself.
    1. What's the environment- indoor or outdoor ?
    2. Is it for rental use ( need to be moved from one place to another place frequently) or for fixed installation (to be installed in a place permanently)?
    3. what is the approximate size of the led screen you would like to purchase?
    Q2:Which pixel pitch should i choose?
    A: There's a range of pixel pitch from 1.25--30mm, there is a roughly principle-usually small pixel(1.25mm-10mm) used for indoor
    led screen, bigger pixel (10mm-30mm) used for outdoor led screen( for example huge advertisement billboard on a big building).

    Q3:How to install it after received?
    A: We will offer you the drawing to guide you for installation, even send our engineer to you for help if needed.
