Waterproof Outdoor Rental LED Display P4.81mm 500*500mm LED Panel
Application:
D-LN Series Rental LED display is outdoor frontal service LED
screen. Frontal and Rear maintance is available for LED Panels and Power Box. Perfect Design with new techology and elegant
appearance.

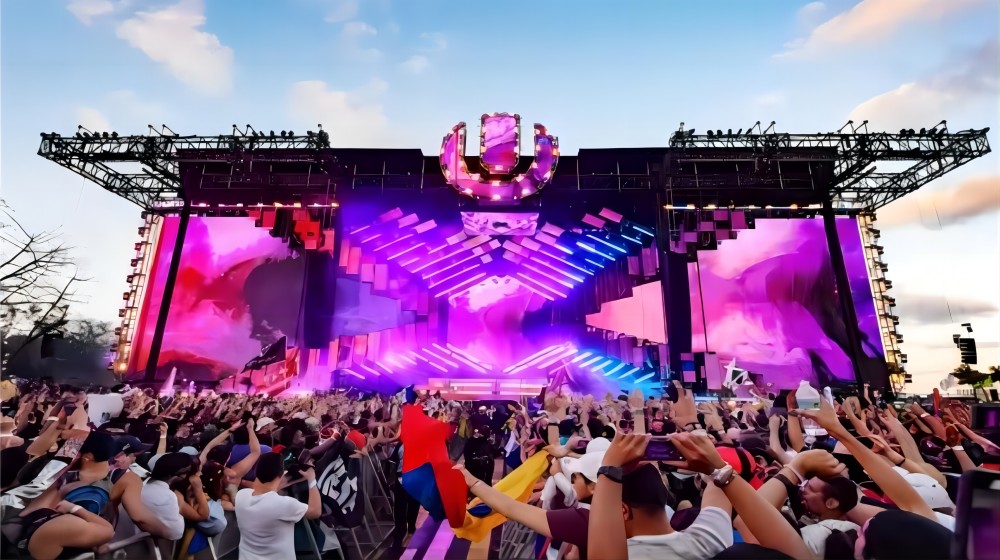

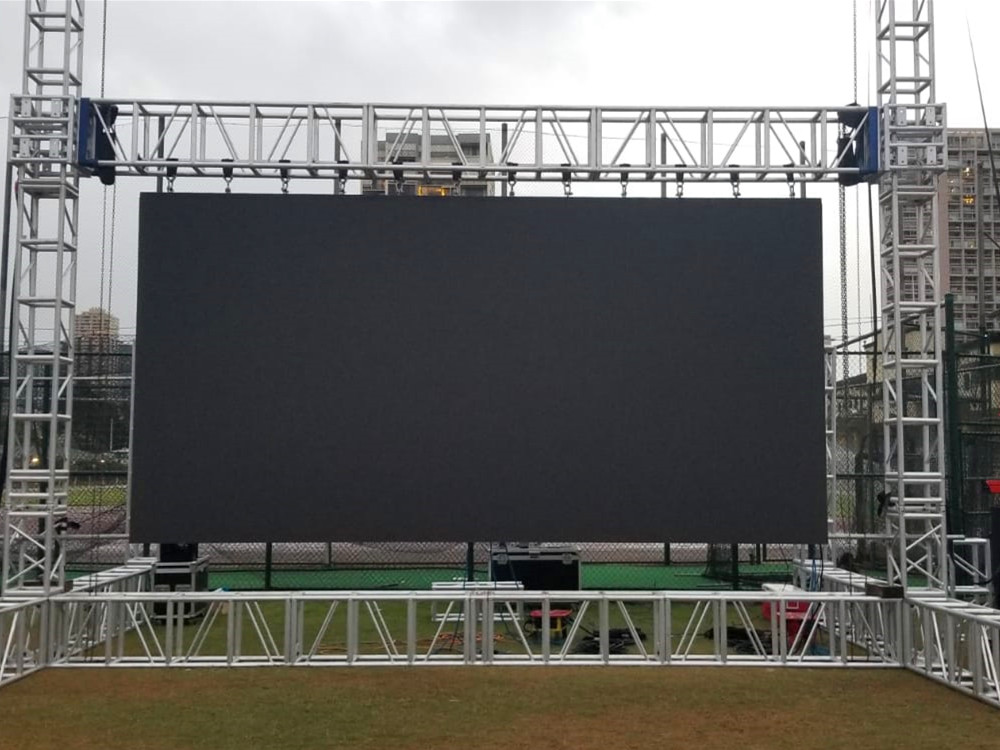

It is widely used in outdoor plazas, buildings, airports, railway
stations, bus stations, high-speed rail stations, road traffic,
etc.
Features:
- High-definition display: high density products, high resolution
high-definition display, no flicker, no particle;
- High refresh:high refresh rate of 3840Hz, gray 14 ~ 16 Bit
adjustable display high-definition playback smoothly brightly, true
- Large angle of view: the use of high quality table lamp, the
visual angle up to 160 degrees and above, multi-direction viewing
display effect is consistent;
- Good flatness, good consistency: 250*250mm large size design,
reduce the splicing gap of the screen body, the bottom shell
structure design of multi rib strengthened, to ensure the product
is not easy to tensile deformation, guarantee of the whole flat
screen body and unity;
- Standard size, convenient installation: 250*250mm standard size
design, the assembly efficiency of the whole screen, can be used
with the 500*500mm 500*1000mm die casting aluminum box frame, the
product is light, convenient installation.
- Support All Media Format and Display Mode DVI/HDMI/3G/HD/SD/SDI
display mode, applicable for TV program,VCD/DVD and live show.
- Smart mode available (optional) to monitor the overall working
hours and temperature of each cabinet.
- Curve Lock, corner protector
- Support Front Service
Parameters:
| Model | D-LN2.6 | D-LN2.9 | D-LN3.9 | D-LN4.8 |
| Pixel Pitch | 2.604mm | 2.976mm | 3.91mm | 4.81mm |
| Pixel Configuration | SMD1415 | SMD1415 | SMD1921 | SMD1921 |
| Pixel Density | 147,456 pixels/m2 | 112,896 pixels/m2 | 65,536 pixels/m2 | 43,264 pixels/m2 |
| Module Dimensions (W x H) (mm) | 250 x 250 | 250 x 250 | 250 x 250 | 250 x 250 |
| Panel Dimensions (mm) | 500 x 500 x 80 | 500 x 500 x 80 | 500 x 500 x 80 | 500 x 500 x 80 |
| Modules Per Cabinet (W x H) | 2 x 2 | 2 x 2 | 2 x 2 | 2 x 2 |
| Module Resolution | 96 x 96 | 84 x 84 | 64 x 64 | 52 x 52 |
| Cabinet Resolution | 192 x 192 | 168 x 168 | 128 x 128 | 104 x 104 |
| Panel Material | Die Cast Aluminum | Die Cast Aluminum | Die Cast Aluminum | Die Cast Aluminum |
| Weight per Cabinet | 8kg | 8kg | 8kg | 8kg |
| Colours | 281 trillion | 281 trillion | 281 trillion | 281 trillion |
| Contrast Ratio | 5,000 : 1 | 5,000 : 1 | 5,000 : 1 | 5,000 : 1 |
| Average Power Consumption | 280 W /Sqm | 280 W /Sqm | 280 W /Sqm | 280 W /Sqm |
| Max Power Consumption | 800 W /Sqm | 800 W /Sqm | 800 W /Sqm | 800 W /Sqm |
| Brightness | >5,000 nits | >5,000 nits | >5,000 nits | >5,000 nits |
| Refresh Rate | >3,840Hz | >3,840Hz | >3,840 Hz | >3,840 Hz |
| Vertical Viewing Angle | 160° | 160° | 160° | 160° |
| Horizontal Viewing Angle | 160° | 160° | 160° | 160° |
| Expected Lifetime | 100,000 Hrs | 100,000 Hrs | 100,000 Hrs | 100,000 Hrs |
| Servicing | Front/Rear | Front/Rear | Front/Rear | Front/Rear |
| IP Rating (Front/Rear) | IP 65 | IP 65 | IP 65 | IP 65 |
| Operating Temp/Humidity | -20ºC - 50ºC / 10% - 90% | -20ºC - 50ºC / 10% - 90% | -20ºC - 50ºC / 10% - 90% | -20ºC - 50ºC / 10% - 90% |
| Storage Temp/Humidity | -20ºC - 50ºC / 10% - 90% | -20ºC - 50ºC / 10% - 90% | -20ºC - 50ºC / 10% - 90% | -20ºC - 50ºC / 10% - 90% |
