500*500mm Waterproof P2.6 P2.9 Stage Outdoor Led Video Wall Panel
Screen
Application:
The rental LED video wall business is one of the service industries
that have developed vigorously in recent years. The LED video wall is widely used in the stage or background of important events such as
TV studios, large-scale performance activities, opening ceremonies of important events, sports
competitions, and corporate celebrations. The texts, pictures and videos played on the LED video wall together create a colorful atmosphere, which greatly improves the level of the activity.
- Perfect Cabinet Design
Excellent product came in all details from cabinet handle. cabinet
fxied slot, fast lock,
magnet adsorption module, module installation knob, Power& signal
connector, detachable power boxing, and more
- Double Maintenance Design
Double Maintenance Rental LED Display adopts Magnet Adsorption LED
Panel,
the cabinet is accessed with frontal & rear design, easy
installation for LED panels.
-Detachable Back Cover
Hard Connection Design with detachable Power box and HUB Poard,
High IP65 Waterproof with Double Sealing Rubber Ring,
Quick Mounting of Buckles for assamble and disassamble of back
cover
- High Precision Curve Lock
Adopt high-precision curve lock design (-10° to +10°), rotation
control, more accurate,
easy to use, and quickly adjust the degree of curve.
- Corner Protector
The LED screen has four corners to prevent damage to the
LED,Transportation, installation, operation,disassembly and
assembly are more secure and easy to use.
- High Grayscale, High Refresh Rate
Parameters:
| Model | D-LN2.6 | D-LN2.9 | D-LN3.9 | D-LN4.8 |
| Pixel Pitch | 2.604mm | 2.976mm | 3.91mm | 4.81mm |
| Pixel Configuration | SMD1415 | SMD1415 | SMD1921 | SMD1921 |
| Pixel Density | 147,456 pixels/m2 | 112,896 pixels/m2 | 65,536 pixels/m2 | 43,264 pixels/m2 |
| Module Dimensions (W x H) (mm) | 250 x 250 | 250 x 250 | 250 x 250 | 250 x 250 |
| Panel Dimensions (mm) | 500 x 500 x 80 | 500 x 500 x 80 | 500 x 500 x 80 | 500 x 500 x 80 |
| Modules Per Cabinet (W x H) | 2 x 2 | 2 x 2 | 2 x 2 | 2 x 2 |
| Module Resolution | 96 x 96 | 84 x 84 | 64 x 64 | 52 x 52 |
| Cabinet Resolution | 192 x 192 | 168 x 168 | 128 x 128 | 104 x 104 |
| Panel Material | Die Cast Aluminum | Die Cast Aluminum | Die Cast Aluminum | Die Cast Aluminum |
| Weight per Cabinet | 8kg | 8kg | 8kg | 8kg |
| Colours | 281 trillion | 281 trillion | 281 trillion | 281 trillion |
| Contrast Ratio | 5,000 : 1 | 5,000 : 1 | 5,000 : 1 | 5,000 : 1 |
| Average Power Consumption | 280 W /Sqm | 280 W /Sqm | 280 W /panel | 280 W /panel |
| Max Power Consumption | 800 W /Sqm | 800 W /Sqm | 800 W /panel | 800 W /panel |
| Brightness | >5,000 nits | >5,000 nits | >5,000 nits | >5,000 nits |
| Refresh Rate | >3,840Hz | >3,840Hz | >3,840 Hz | >3,840 Hz |
| Vertical Viewing Angle | 160° | 160° | 160° | 160° |
| Horizontal Viewing Angle | 160° | 160° | 160° | 160° |
| Expected Lifetime | 100,000 Hrs | 100,000 Hrs | 100,000 Hrs | 100,000 Hrs |
| Servicing | Front/Rear | Front/Rear | Front/Rear | Front/Rear |
| IP Rating (Front/Rear) | IP 65 | IP 65 | IP 65 | IP 65 |
| Operating Temp/Humidity | -20ºC - 50ºC / 10% - 90% | -20ºC - 50ºC / 10% - 90% | -20ºC - 50ºC / 10% - 90% | -20ºC - 50ºC / 10% - 90% |
| Storage Temp/Humidity | -20ºC - 50ºC / 10% - 90% | -20ºC - 50ºC / 10% - 90% | -20ºC - 50ºC / 10% - 90% | -20ºC - 50ºC / 10% - 90% |

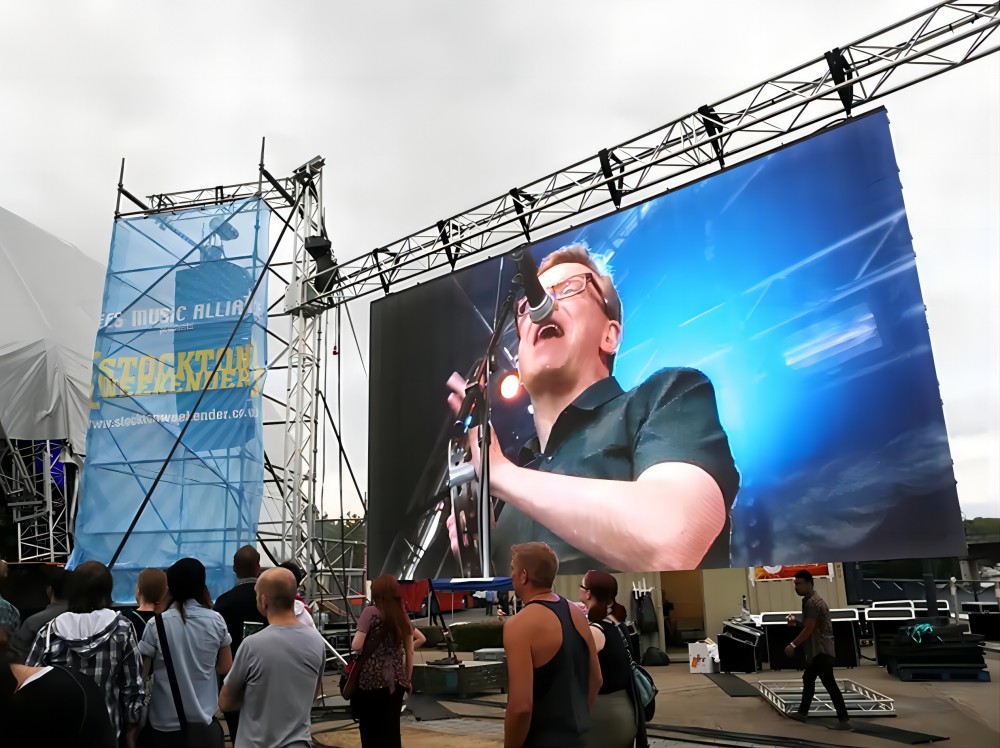

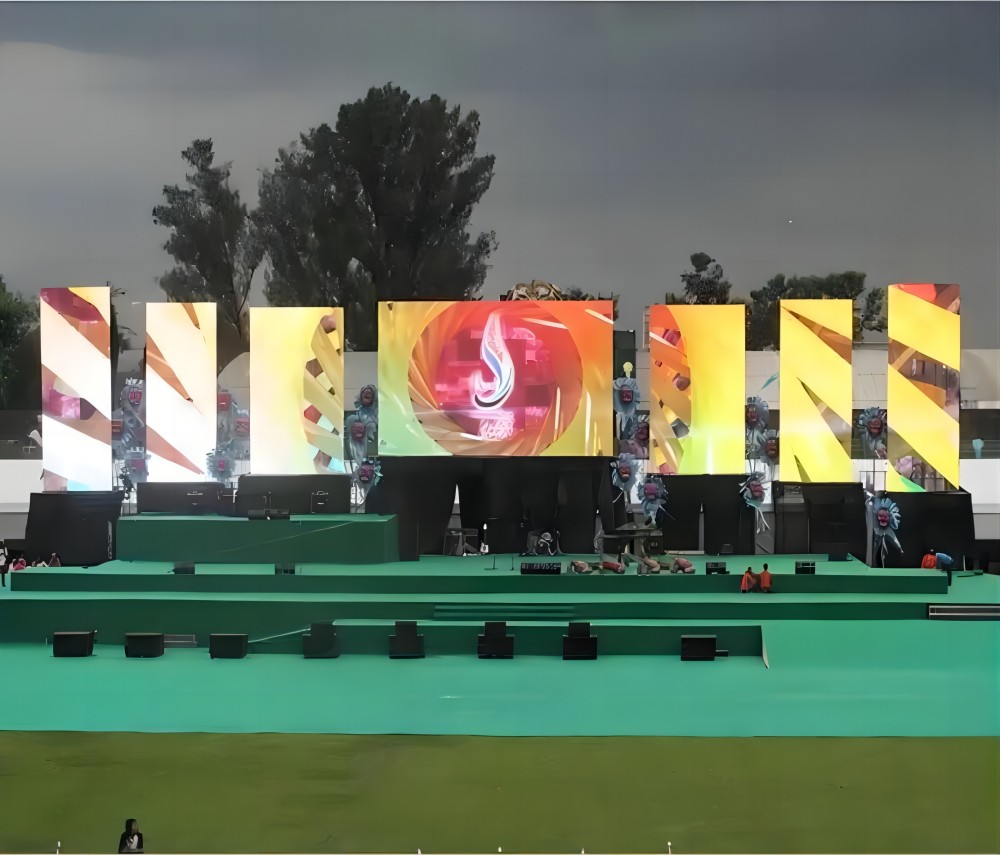

Pictures:
Service
1. Free online technical training and support for installation
2. Free spare parts if the screen broken because of quality issues
.
3. 24/7 online service for any inquiry and question
