Outdoor P4.81mm Stage Rental LED Display 5000nits LED Video Wall
5000nits Outdoor Rental LED Video Wall With Removable Power Box
Outdoor P4.81mm 500x1000mm Die Cast Aluminum Cabinet High
Brightness 5000nits With Removable Power Box

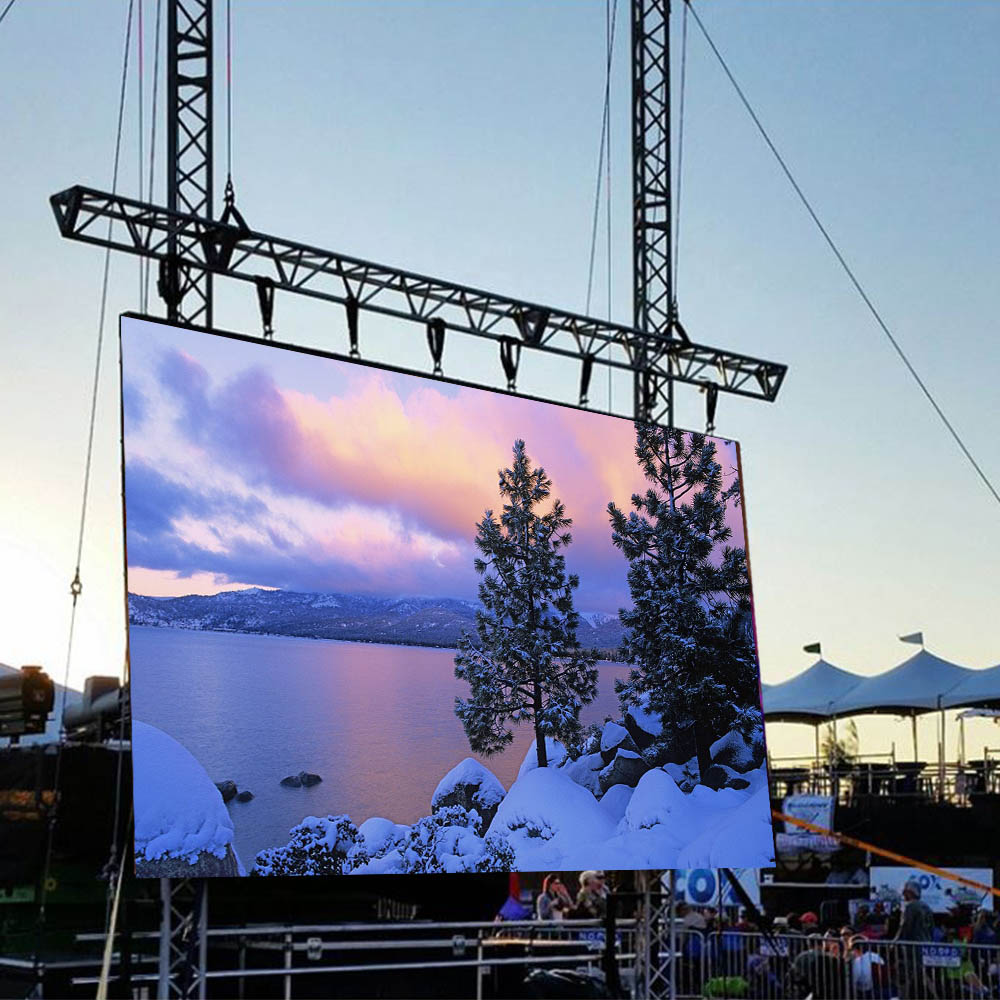

Application Of Outdoor Rental LED Video Wall
Make full use of the stage and make bold innovations to expand the
means of expression of the stage. At present, when visual art
dominates artistic expression, it is impossible to meet the
aesthetic needs of the audience only by means of traditional dance
beauty, which must be presented by stage devices and various
technical means. Vehicle platform, lifting platform, hanging and
other mechanical devices can be loaded with display screen,
combined with control technology, to produce a variety of stage
effects. The platform with transparent screen was used in the
8-minute theatrical performance of the closing ceremony of the
Pyeongchang Winter Olympic Games. The high-precision robot arm
(commonly known as the mechanical arm), which was used in the
industrial field in the past, is now also used in stage
performances. The led screen can be spliced and rotated under the
control of the mechanical arm to form various shapes and pictures
over the stage. It can also be placed in any position of the
actors, such as front, back, left and right, to participate in
performances and interact with the actors. It can also replace the
curtain, strip curtain and so on. The use of large robotic arms
makes the led screen not only as a background, but also participate
in the performance, making the stage a changing three-dimensional
multi-dimensional space.
Quick detail Of Outdoor Rental LED Screen
- Pixel Pitch: 2.6mm, 2.9mm, 3.91mm, 4.81mm
- Waterproof brand SMD LEDs, high brightness and high reliability
- Greyscale: 14bits - 16bits
- Cabinet size: 500x500mm and 500x1000mm Die Cast Aluminum Cabinet
- Service type: Waterproof and magnetic front service
- PSU: Pin connection independent power box, easily and evenly
remove and put on
- Refresh Rate: 3840Hz
- Ingress Rate: IP65 Outdoor standard and magnetic front service
- Quality Certificate:CE, RoHS,FCC, ETL
- Brightness:>5000cd/sqm
- Curve Installation: Rotary lock for +- 15 degree Concave and
Convex shape
- Corner Protector: Semi-auto Corner Protector, gently push and
release the protector for the max security of LEDs
Paramters:
| Model | D-LK2.6 | D-LK2.9 | D-LK3.9 | D-LK4.8 |
| Pixel Pitch | 2.604mm | 2.976mm | 3.91mm | 4.81mm |
| Pixel Configuration | SMD1415 | SMD1415 | SMD1921 | SMD1921 |
| Pixel Density | 147,456 pixels/m2 | 112,896 pixels/m2 | 65,536 pixels/m2 | 43,264 pixels/m2 |
| Module Dimensions (W x H) (mm) | 250 x 250 | 250 x 250 | 250 x 250 | 250 x 250 |
| Panel Dimensions (mm) | 500 x 500 x 80 | 500 x 500 x 80 | 500 x 500 x 80 | 500 x 500 x 80 |
| Modules Per Cabinet (W x H) | 2 x 2 | 2 x 2 | 2 x 2 | 2 x 2 |
| Module Resolution | 96 x 96 | 84 x 84 | 64 x 64 | 52 x 52 |
| Cabinet Resolution | 192 x 192 | 168 x 168 | 128 x 128 | 104 x 104 |
| Panel Material | Die Cast Aluminum | Die Cast Aluminum | Die Cast Aluminum | Die Cast Aluminum |
| Weight per Cabinet | 8kg | 8kg | 8kg | 8kg |
| Colours | 281 trillion | 281 trillion | 281 trillion | 281 trillion |
| Contrast Ratio | 5,000 : 1 | 5,000 : 1 | 5,000 : 1 | 5,000 : 1 |
| Average Power Consumption | 280 W /Sqm | 260 W /Sqm | 250 W /panel | 220 W /panel |
| Max Power Consumption | 680 W /Sqm | 650 W /Sqm | 620 W /panel | 600 W /panel |
| Brightness | >5,000 nits | >5,000 nits | >5,000 nits | >5,000 nits |
| Refresh Rate | >3,840Hz | >3,840Hz | >3,840 Hz | >3,840 Hz |
| Vertical Viewing Angle | 160° | 160° | 160° | 160° |
| Horizontal Viewing Angle | 160° | 160° | 160° | 160° |
| Expected Lifetime | 100,000 Hrs | 100,000 Hrs | 100,000 Hrs | 100,000 Hrs |
| Servicing | Front/Rear | Front/Rear | Front/Rear | Front/Rear |
| IP Rating (Front/Rear) | IP 65 | IP 65 | IP 65 | IP 65 |
| Operating Temp/Humidity | -20ºC - 50ºC / 10% - 90% | -20ºC - 50ºC / 10% - 90% | -20ºC - 50ºC / 10% - 90% | -20ºC - 50ºC / 10% - 90% |
| Storage Temp/Humidity | -20ºC - 50ºC / 10% - 90% | -20ºC - 50ºC / 10% - 90% | -20ºC - 50ºC / 10% - 90% | -20ºC - 50ºC / 10% - 90% |
