P3.91 High Refresh Rate Full Color Outdoor LED Rental Display for
Stage Event
Application:
Outdoor full color rental LED display could be used in outdoor
environment such as airport, highway, cultural or relax square,
commercial walking street, residential sub-district, downtown, with
various real-time signal sources and the speciality of waterproof,
dust-proof, static-proof, its purpose is to propagandize outdoor
advertising or play the important news or events or TV program etc.
Advantages:
- High-strength and precision die-cast aluminum cabinet, seamless
installation.
- Ultra light and ultra thin, it is more convenient transport and
save shipping cost.
- Unique design, easy to assembly and disassembly.
- Two side quick lock, which makes screen a better flatness and
stability ; curve side locks optional .
- Adopted brand good led lamps, high contrast ratio, pictures more
clear and vivid.
- High refresh rate, >=3840HZ. No flicker.
Parameters:
| Model | D-LK2.6 | D-LK2.9 | D-LK3.9 | D-LK4.8 |
| Pixel Pitch | 2.604mm | 2.976mm | 3.91mm | 4.81mm |
| Pixel Configuration | SMD1415 | SMD1415 | SMD1921 | SMD1921 |
| Pixel Density | 147,456 pixels/m2 | 112,896 pixels/m2 | 65,536 pixels/m2 | 43,264 pixels/m2 |
| Module Dimensions (W x H) (mm) | 250 x 250 | 250 x 250 | 250 x 250 | 250 x 250 |
| Panel Dimensions (mm) | 500 x 1000 x 80 | 500 x 1000 x 80 | 500 x 1000 x 80 | 500 x 1000 x 80 |
| Modules Per Cabinet (W x H) | 2 x 4 | 2 x 4 | 2 x 4 | 2 x 4 |
| Module Resolution | 96 x 96 | 84 x 84 | 64 x 64 | 52 x 52 |
| Cabinet Resolution | 192 x 384 | 168 x 336 | 128 x 256 | 104 x 208 |
| Panel Material | Die Cast Aluminum | Die Cast Aluminum | Die Cast Aluminum | Die Cast Aluminum |
| Weight per Cabinet | 15kg | 15kg | 15kg | 15kg |
| Colours | 281 trillion | 281 trillion | 281 trillion | 281 trillion |
| Contrast Ratio | 5,000 : 1 | 5,000 : 1 | 5,000 : 1 | 5,000 : 1 |
| Average Power Consumption | 280 W /Sqm | 280 W /Sqm | 280 W /Sqm | 280 W /Sqm |
| Max Power Consumption | 800 W /Sqm | 800 W /Sqm | 800 W /Sqm | 800 W /Sqm |
| Brightness | >5,000 nits | >5,000 nits | >5,000 nits | >5,000 nits |
| Refresh Rate | >3,840Hz | >3,840Hz | >3,840 Hz | >3,840 Hz |
| Vertical Viewing Angle | 160° | 160° | 160° | 160° |
| Horizontal Viewing Angle | 160° | 160° | 160° | 160° |
| Expected Lifetime | 100,000 Hrs | 100,000 Hrs | 100,000 Hrs | 100,000 Hrs |
| Servicing | Front/Rear | Front/Rear | Front/Rear | Front/Rear |
| IP Rating (Front/Rear) | IP 65 | IP 65 | IP 65 | IP 65 |
| Operating Temp/Humidity | -20ºC - 50ºC / 10% - 90% | -20ºC - 50ºC / 10% - 90% | -20ºC - 50ºC / 10% - 90% | -20ºC - 50ºC / 10% - 90% |
| Storage Temp/Humidity | -20ºC - 50ºC / 10% - 90% | -20ºC - 50ºC / 10% - 90% | -20ºC - 50ºC / 10% - 90% | -20ºC - 50ºC / 10% - 90% |

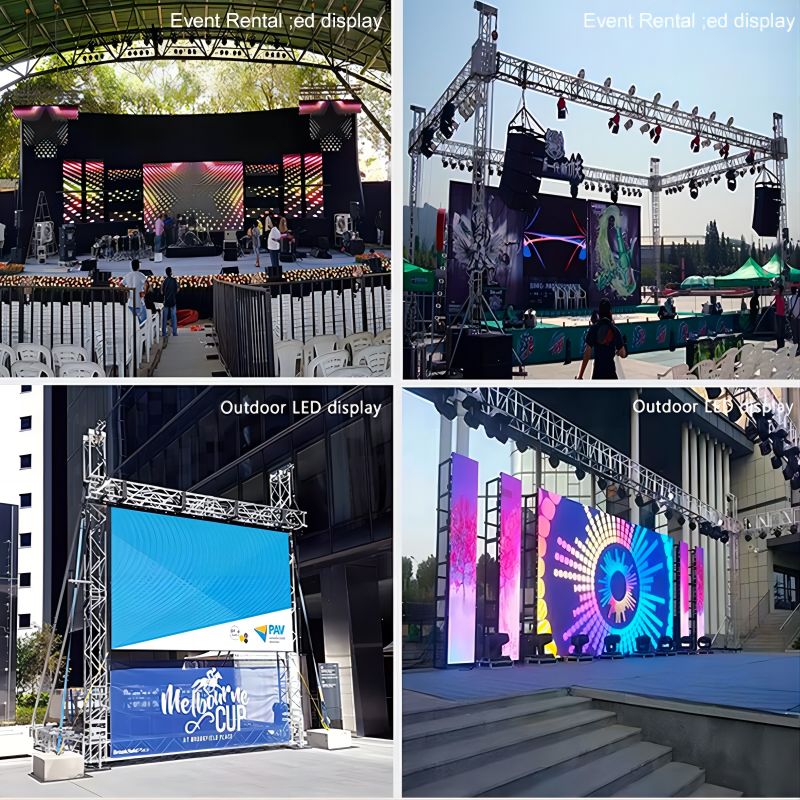

Pictures:
Our advantages:
Modern production science management
The company has advanced modern production equipment, scientific
and rigorous management methods, attention to detail and quality.
We have a high-quality team to provide customers with high quality,
cost-effective products
Pre-sale design
Before the sale, we listened carefully to the needs of our
customers, reasonably selected products suitable for our customers,
and developed a series of excellent LED display solutions. Customer
satisfaction is our constant pursuit.
Fast after sales service
After the sale, we patiently answer the customer's questions,
receive timely and accurately feedback from customers, improve
product shortages, update product quality, solve customer concerns,
and always adhere to a rigorous and innovative scientific attitude.
Service
1. Free online technical training and support for installation
2. Free spare parts if the screen broken because of quality issues
.
3. 24/7 online service for any inquiry and question
