960x960mm P4 Outdoor Fixed LED Display Ultra-Thin IP66 Front
Service
Outdoor P4 Fixed LED Display Screen
- Common Cathode Technology, Energy Saving and Low Heat LED Display
S Series Energy Saving LED Display is Conwin LED latest Common
Cathode Aluminum Display with size of 960*960mm, high IP66
waterproof level. Ultra low heat and power consumption,
saving operation cost and more reliable
- Ultra Thin and Light Weight Design
Module size 480*320mm and cabinet size in
960*1280/960*960/960*640/1440*1280/ 1440*960mm
75mm thickness and weight: 28KG/㎡ for aluminum frame, 35KG/㎡ for
metal frame

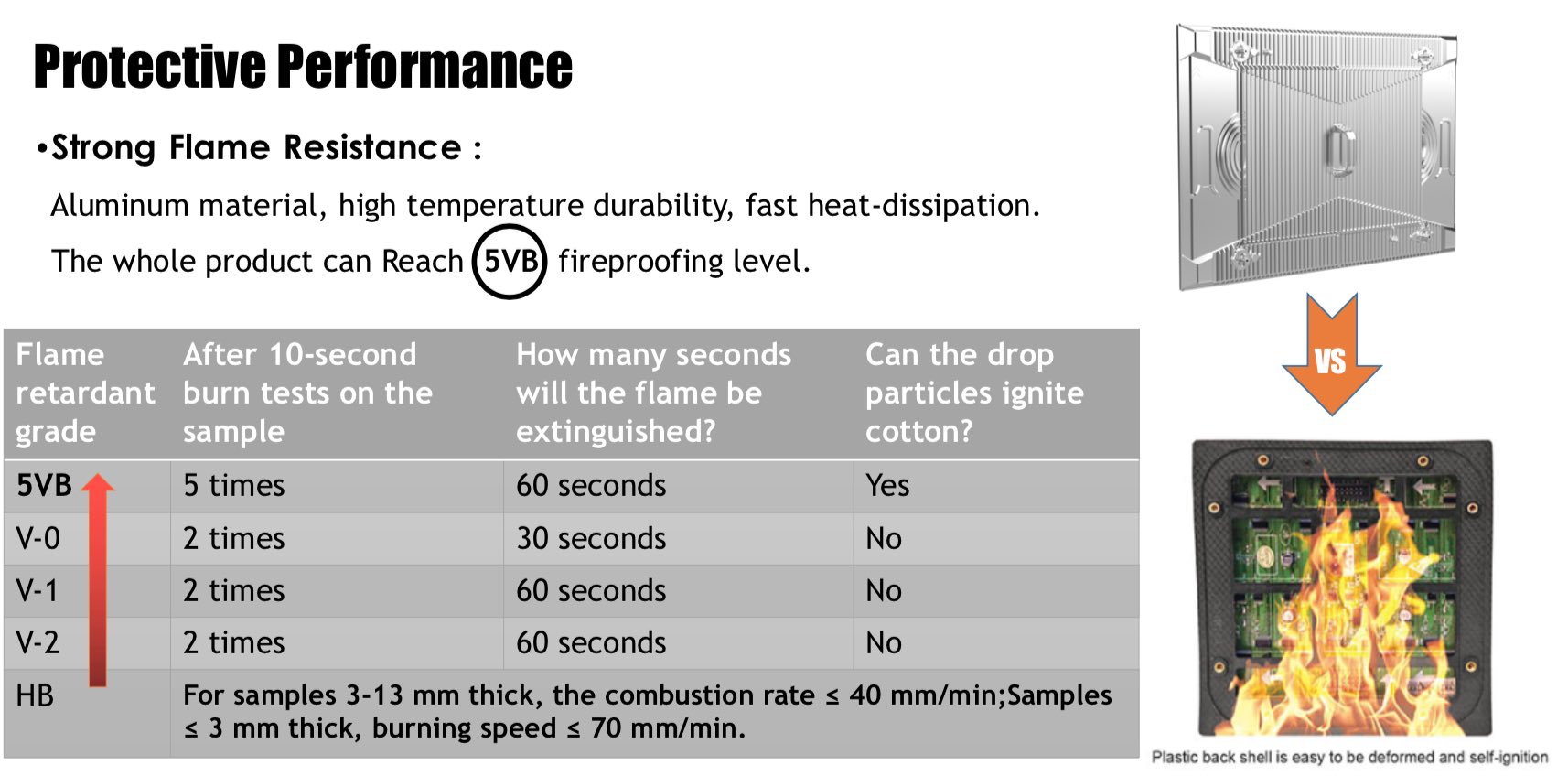

- Fireproof with Aluminum Chassis Module, High Protective
Performance
S series adopts Aluminum Chassis design for panel, low heat and
fireproof. Module is fully sealed and resistant to high temperature
and fire.
Aluminum material, high temperature durability, fast
heat-dissipation.
5VB fireproofing level. Water proof connectors(between modules),
Drain hole is designed at the bottom of the panel to prevent
ponding.
- Extra Safety Harness Design
Each LED module is equipped with a safety harness to prevent the
module from falling.
- Elegant Design
Cable-less design with Power and data cables are hidden at the
bottom of the panel. Module are applying pin connection with
cabinet frame, create high stability.
- Front and Real Maintenance
Dual service mode of front and rear design to save you Maintenance
Cost.
The LED panel can be assemble and disassemble easily and quickly.
- Custom Design for Naked Eye 3D Video, Seamless Corner
The die-cast aluminum module achieves seamless splicing and high
flatness. the LED display has no gaps and the LED screen with
Excellent display.
- Parameters:
| Model | S-Pro4 |
| Pixel Pitch | 4.4mm |
| Pixel Configuration | SMD1921 |
| Pixel Density | 50625 pixels/m2 |
| Module Dimensions(W x H)(mm) | 480 x 320 |
| Panel Dimensions (mm) | 960 x960 x 90 |
| Modules Per Cabinet (W x H) | 2 x 3 |
| Module Resolution | 108 x 108 |
| Cabinet Resolution | 216 x 216 |
| Panel Material | Aluminum |
| Weight per Cabinet | 28kgs |
| Colors | 281 trillion |
| Contrast Ratio | 5,000 : 1 |
| Average Power Consumption | 330 W /Sqm |
| Max Power Consumption | 950 W /Sqm |
| Brightness | >5,000 nits |
| Refresh Rate | >3,840Hz |
| Vertical Viewing Angle | 160° |
| Horizontal Viewing Angle | 160° |
| Expected Lifetime | 100,000 Hrs |
| Servicing | Front / Rear |
| IP Rating (Front/Rear) | IP66 / IP66 |

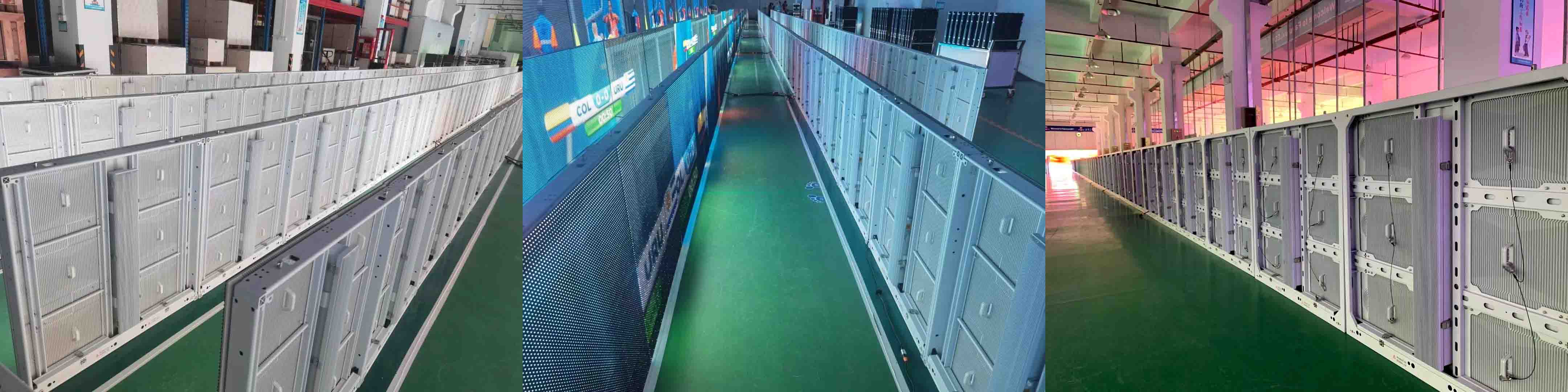

- Pictures:
Our Services
1. 20 Years professional led display manufacturer
2. Short delivery time: 5-15 working days, adjustable according to
customer request
3. Wholesale price
4. OEM and ODM service
5. Customizable product upon request
