Customized Size Outdoor Advertising LED Display P6 Outdoor Fixed
LED Screen
Outdoor P6 Fixed LED Video Wall, IP66 Outdoor Waterproof LED
Billboard
Features:
- Durable fresh color and 6000nits high brightness for outdoor.
- Common cathode power supply, reduce energy consumption,
Energy-saving 29% by using high efficiency IC driver, high
brightness leds and improved PCB.
- Short viewing distance range design for outdoor.
- IP66 protection grade, durable nature enables the screen to work
in all outdoor weather conditions.
- Aluminum cabinet, light weight,Fast lock for quick installation,
only takes 10 seconds
- Support Full frontal maintenance, direct wall mounting with
high-precision led screen cabinet, extending service life
- Brilliant picture, vivid colors, stable picture quality, suitable
for outdoor environment use.
- Reduce operating costs,effectively extend led screen life
- Pixel Pitch P6.67mm
- LED Module Size 480X320mm, Aluminum bottom suit corver
-Color choosing, white or Black
- Support front and rear service
- High energy efficiency
- Support Directly on Wall
- Perfect seamless corner cabinet for naked-eye 3D solution.
Parameters:
| Model | S-B6 |
| Pixel Pitch | 6.67mm |
| Pixel Configuration | SMD2727 |
| Pixel Density | 22500 pixels/m2 |
Module Dimensions(W x H)
(mm) | 480 x 320 |
| Panel Dimensions (mm) | 960 x960 x 90 |
| Modules Per Cabinet (W x H) | 2 x 3 |
| Module Resolution | 72 x 72 |
| Cabinet Resolution | 144 x 144 |
| Panel Material | Aluminum |
| Weight per Cabinet | 28kgs |
| Colors | 281 trillion |
| Contrast Ratio | 5,000 : 1 |
| Average Power Consumption | 330 W /Sqm |
| Max Power Consumption | 950 W /Sqm |
| Brightness | >5,500 nits |
| Refresh Rate | >3,840Hz |
| Vertical Viewing Angle | 160° |
| Horizontal Viewing Angle | 160° |
| Expected Lifetime | 100,000 Hrs |
| Servicing | Front / Rear |
| IP Rating (Front/Rear) | IP66 / IP66 |

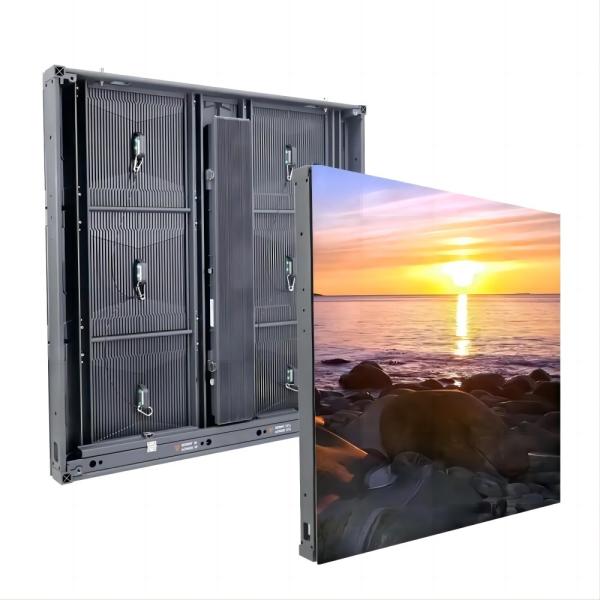

Pictures:
