IP68 P10 Waterproof Outdoor Advertising LED Display With High
Brightness
Outdoor Waterproof P10 LED Display, Fixed huge LED Billboard
Feature Of Ultra Light Weight Outdoor LED Advertising Billboard
Module comparison 1). Conventional product installation and
maintenance requires more screws, which is very time-consuming. The
aluminum bottom shell is designed with a side lock and free of
screws, which can be easily maintained in two steps. 2). Exposed
components of conventional products; The aluminum bottom shell is
fully enclosed and wrapped to protect the components. 3).
Conventional plastic products have low thermal conductivity and
release harmful substances at high temperatures – polyvinyl
chloride, with a recovery rate of only 1%. The aluminum bottom
shell has high heat conduction point, good heat dissipation
performance, no release of harmful substances, and the recovery
rate is as high as 85%.
Product Feature and Quick Details:
- Waterproof IP68 front and rear
- Support front and rear serive
- Anti-Flaming Performance
- Aluminum Cabinet Compares with Iron Cabinet Available for choose
Aluminum cabinet 29kg for 960x960mm size, Iron Cabinet 36kg for
960X960mm cabinet
- Common Cathode Aluminum Display: Energy-Saving by 75%
- P10mm SMD lamps
- The Aluminum module LED display is widely used for outdoor
fields, such as stadium, advertisement, traffic display and big LED
disply in plaza, etc.
- Cabinet size could be customized according to LED Module size
320X320mm
Regular size 960X960mm, other size 1280X960mm,
1280X1280mm,960X640mm...
- LED Module Advantages
a. Aluminum bottom shell, good heat radiation
b. Waterproof front and rear IP68.
c. Support front and rear service.
LED Module protected by Aluminum Bottom case with better heat
radiation and stronger, Flame resistance.
Moisture-proof, water-proof, anti-corrosion, dust-proof
Signal and Power in one Cable(waterproof) with trianle screw fixing
structure design. safter, Faster and more stable
- LED Cabinet advantage
Cabinet Could be designed all Aluminum with 28.5kg for 960X960mm
cabinet. also could be design steel cabinet 36kg.
LED Module, Power supply could be taken from front and rear.
Also could be designed for different size according to LED Module

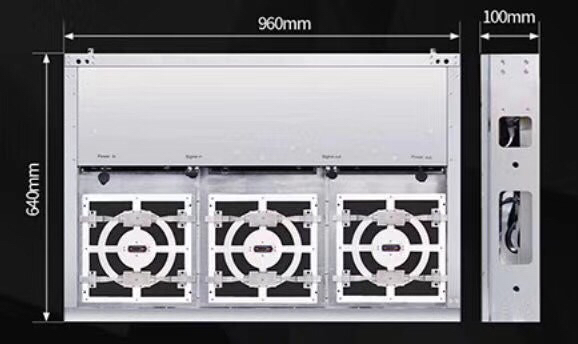

size(320X320mm). Like 640X960mm, 640X640mm,1280X640mm....
Brilliant cabinet design making installation easy and with enough
installation space.
Fast Assemble with plugs, Marked “Power in/out” “Signal in/out” on
cabinet. Keep safe and save install time.
IP68 front and rear, Moisture-proof, water-proof, anti-corrosion,
dust-proof.
Parameters:
| Model | S-A10 |
| Pixel Pitch | 10mm |
| Pixel Configuration | SMD2727 |
| Pixel Density | 10000 pixels/m2 |
Module Dimensions(W x H)
(mm) | 320 x 320 |

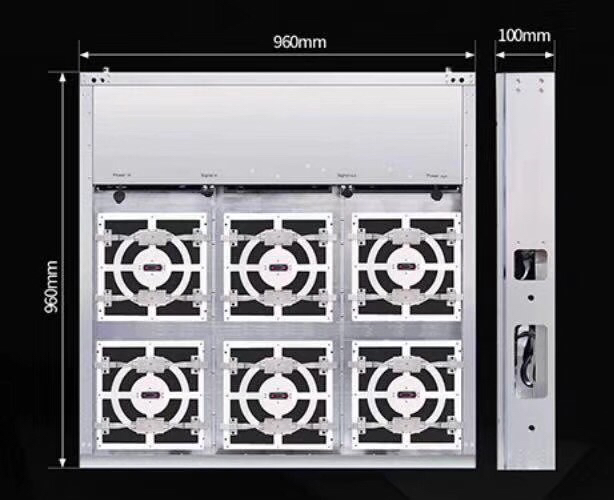

| Panel Dimensions (mm) | 960 x960 x 100 |
| Modules Per Cabinet (W x H) | 3 x 3 |
| Module Resolution | 32 x 32 |
| Cabinet Resolution | 96 x 96 |
| Panel Material | Aluminum |
| Weight per Cabinet | 29kgs |
| Colors | 281 trillion |
| Contrast Ratio | 5,000 : 1 |
| Average Power Consumption | 330 W /Sqm |
| Max Power Consumption | 950 W /Sqm |
| Brightness | >5,500 nits |
| Refresh Rate | >3,840Hz |
| Vertical Viewing Angle | 160° |
| Horizontal Viewing Angle | 160° |
| Expected Lifetime | 100,000 Hrs |
| Servicing | Front / Rear |
| IP Rating (Front/Rear) | IP68 / IP68 |
Pictures:
Our Services
1. 20 Years professional led display manufacturer
2. Short delivery time: 5-15 working days, adjustable according to
customer request
3. Wholesale price
4. OEM and ODM service
5. Customizable product upon request
