Both Fixed and Rental LED display P4.81mm LED Full Color Outdoor
LED screen
Appliation:

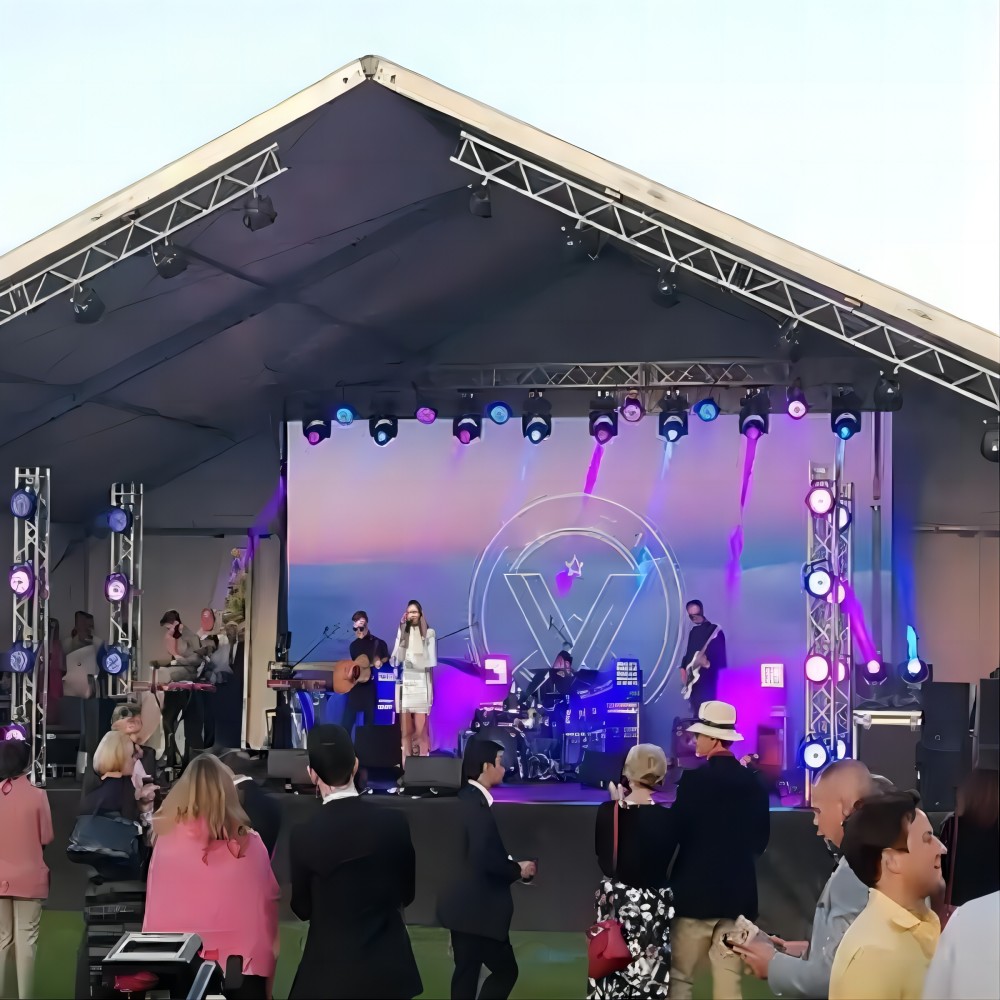

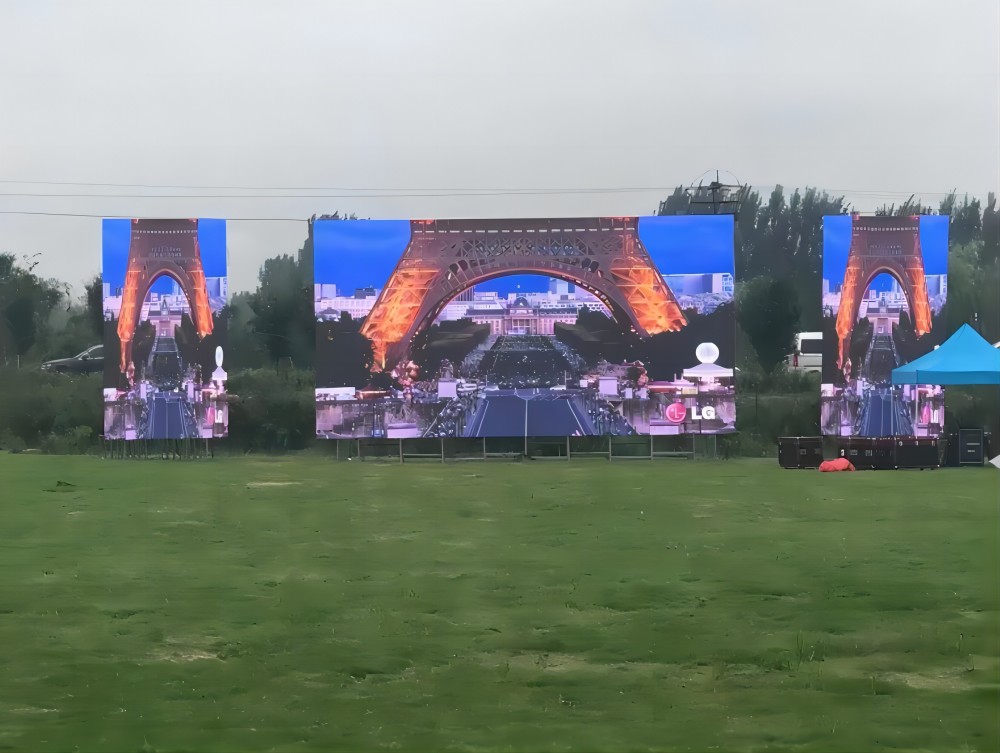

Outdoor full color rental LED display D-LP series could be used in
outdoor environment such as airport, highway, cultural or relax
square, commercial walking street, residential sub-district,
downtown, with various real-time signal sources and the speciality
of waterproof, dust-proof, static-proof, its purpose is to
propagandize outdoor advertising or play the important news or
events or TV program etc.
Product Features
- Module size:250x250mm, compatible pitch:P2.6,P2.9,P3.9 and P4.8

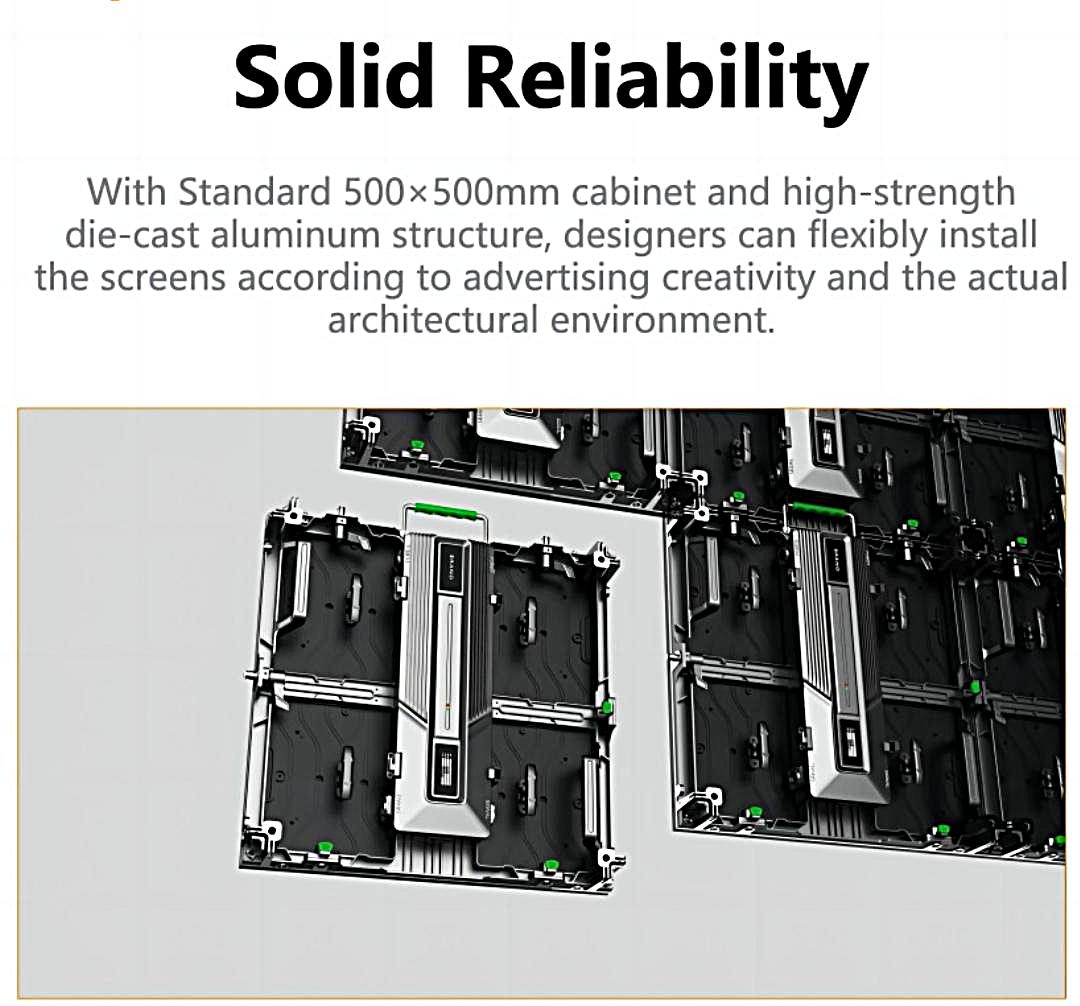

- 500x500mm, 500x1000mm cabinet, stable die-casting alloy
structure, not easy to deform.
- Cable-less and pluggable power supply, easy to change.
- Intelligent cabinet handle lock, single operation design,
time-saving and labor-saving.
- Foldable all-around corner protectors, effectively protect the
edge led lamps and modules.
- Adopt high end big chip pure black led lamps, ultra-high
contrast, high gray scale and high refresh rate.
- Curved function cabinet option, no need curved lock, can realize
arc/ special-shaped, suitable for different rental events.
Parameters:
| Model | D-LP2.6 | D-LP2.9 | D-LP3.9 | D-LP4.8 |
| Pixel Pitch | 2.604mm | 2.976mm | 3.91mm | 4.81mm |
| Pixel Configuration | SMD1415 | SMD1415 | SMD1921 | SMD1921 |
| Pixel Density | 147,456 pixels/m2 | 112,896 pixels/m2 | 65,536 pixels/m2 | 43,264 pixels/m2 |
| Module Dimensions (W x H) (mm) | 250 x 250 | 250 x 250 | 250 x 250 | 250 x 250 |
| Panel Dimensions (mm) | 500 x 500 x 80 | 500 x 500 x 80 | 500 x 500 x 80 | 500 x 500 x 80 |
| Modules Per Cabinet (W x H) | 2 x 2 | 2 x 2 | 2 x 2 | 2 x 2 |
| Module Resolution | 96 x 96 | 84 x 84 | 64 x 64 | 52 x 52 |
| Cabinet Resolution | 192 x 192 | 168 x 168 | 128 x 128 | 104 x 104 |
| Panel Material | Die Cast Aluminum | Die Cast Aluminum | Die Cast Aluminum | Die Cast Aluminum |
| Weight per Cabinet | 8kg | 8kg | 8kg | 8kg |
| Colours | 281 trillion | 281 trillion | 281 trillion | 281 trillion |
| Contrast Ratio | 5,000 : 1 | 5,000 : 1 | 5,000 : 1 | 5,000 : 1 |
| Average Power Consumption | 280 W /Sqm | 280 W /Sqm | 280 W /Sqm | 280 W /Sqm |
| Max Power Consumption | 800 W /Sqm | 800 W /Sqm | 800 W /Sqm | 800 W /Sqm |
| Brightness | >5,000 nits | >5,000 nits | >5,000 nits | >5,000 nits |
| Refresh Rate | >3,840Hz | >3,840Hz | >3,840 Hz | >3,840 Hz |
| Vertical Viewing Angle | 160° | 160° | 160° | 160° |
| Horizontal Viewing Angle | 160° | 160° | 160° | 160° |
| Expected Lifetime | 100,000 Hrs | 100,000 Hrs | 100,000 Hrs | 100,000 Hrs |
| Servicing | Front/Rear | Front/Rear | Front/Rear | Front/Rear |
| IP Rating (Front/Rear) | IP 65 | IP 65 | IP 65 | IP 65 |
| Operating Temp/Humidity | -20ºC - 50ºC / 10% - 90% | -20ºC - 50ºC / 10% - 90% | -20ºC - 50ºC / 10% - 90% | -20ºC - 50ºC / 10% - 90% |
| Storage Temp/Humidity | -20ºC - 50ºC / 10% - 90% | -20ºC - 50ºC / 10% - 90% | -20ºC - 50ºC / 10% - 90% | -20ºC - 50ºC / 10% - 90% |
Pictures:
FAQ:
1 Q: How fast can I get reply from your company?
A: During working days, usually within 2 hours, you will get reply
from our professional sales team.
2 Q:What is your current lead time?
A: Usually 15 days.
3 Q:What pixel pitch can you provide? And what product do you have?
A :Indoor Series from P0.9 to P5, outdoor from P1.8 to P10. We
offers a wide range of LED displays, indoor and outdoor
fixed/rental led display, LED Sphere, LED cube, LED transparent
,window glass LED display, and customized led projects etc.
4 Q:What kind of sending/receiving cards are used?
A: Novastar/Colorlight/Linsn. Mostly use Novastar
5 Q:What technical supports can you offer?
A:We provide all kinds of technology training for free, including
the operation and maintenance training of the LED screens in our
factory. we can arrange an engineer team to the country of
customers for the installation guidance, it needs customers to pay
the relevant fees.
6 Q:Do you provide any free spare parts in each order?
A:Yes, a certain amount of spare parts will be provided for free,
spare parts including module, power cable,signal cable, LED lamp,
IC, mask, power supply, receiving card, etc.
7 Q:What’s your warranty of your products?
A:The standard warranty is 3 years
