P2.6mm P2.9mm Outdoor Rental LED Display With 500x1000mm Light
Weight
Application:
P2.6mm P2.9mm Outdoor Rental LED Display With 500x1000mm Light
Weight are the most welcomed outdoor and indoor rental led display,
widely used for stage, events, live broadcasting etc.
Features and Advantages:
- HD 4K Video Display Excellent Visual Effects
Ultra-high dynamic contrast and high-quality display,
ultra-high-definition perfect picture quality, bring you
unprecedented visual enjoyment.
easily attract attention, greatly enhance the value of advertising.
- CNC Precision Cutting Cabinet Structural Design
With the High-precision cast aluminum material, perfect splicing
without gaps. Fast locking makes assembly and disassembly extremely
easy.
High-quality aviation plugs ensure reliability.
- Magnetic Quick Service Module For Quick Maintenance
- Easily Adjusted Angle Lock
The Cabinet can be arc-shaped connected, with its own angle
adjustment device, can achieve positive and negative 15 degrees of
adjustment to meet the different arc connection requirements.
Parameters:
| Model | D-LP2.6 | D-LP2.9 | D-LP3.9 | D-LP4.8 |
| Pixel Pitch | 2.604mm | 2.976mm | 3.91mm | 4.81mm |
| Pixel Configuration | SMD1415 | SMD1415 | SMD1921 | SMD1921 |
| Pixel Density | 147,456 pixels/m2 | 112,896 pixels/m2 | 65,536 pixels/m2 | 43,264 pixels/m2 |
| Module Dimensions (W x H) (mm) | 250 x 250 | 250 x 250 | 250 x 250 | 250 x 250 |
| Panel Dimensions (mm) | 500 x 1000 x 80 | 500 x 1000 x 80 | 500 x 1000 x 80 | 500 x 1000 x 80 |
| Modules Per Cabinet (W x H) | 2 x 4 | 2 x 4 | 2 x 4 | 2 x 4 |
| Module Resolution | 96 x 96 | 84 x 84 | 64 x 64 | 52 x 52 |
| Cabinet Resolution | 192 x 384 | 168 x 336 | 128 x 256 | 104 x 208 |
| Panel Material | Die Cast Aluminum | Die Cast Aluminum | Die Cast Aluminum | Die Cast Aluminum |
| Weight per Cabinet | 15kg | 15kg | 15kg | 15kg |
| Colours | 281 trillion | 281 trillion | 281 trillion | 281 trillion |
| Contrast Ratio | 5,000 : 1 | 5,000 : 1 | 5,000 : 1 | 5,000 : 1 |
| Average Power Consumption | 280 W /Sqm | 260 W /Sqm | 250 W /panel | 220 W /panel |
| Max Power Consumption | 680 W /Sqm | 650 W /Sqm | 620 W /panel | 600 W /panel |
| Brightness | >5,000 nits | >5,000 nits | >5,000 nits | >5,000 nits |
| Refresh Rate | >3,840Hz | >3,840Hz | >3,840 Hz | >3,840 Hz |
| Vertical Viewing Angle | 160° | 160° | 160° | 160° |
| Horizontal Viewing Angle | 160° | 160° | 160° | 160° |
| Expected Lifetime | 100,000 Hrs | 100,000 Hrs | 100,000 Hrs | 100,000 Hrs |
| Servicing | Front/Rear | Front/Rear | Front/Rear | Front/Rear |
| IP Rating (Front/Rear) | IP 65 | IP 65 | IP 65 | IP 65 |
| Operating Temp/Humidity | -20ºC - 50ºC / 10% - 90% | -20ºC - 50ºC / 10% - 90% | -20ºC - 50ºC / 10% - 90% | -20ºC - 50ºC / 10% - 90% |
| Storage Temp/Humidity | -20ºC - 50ºC / 10% - 90% | -20ºC - 50ºC / 10% - 90% | -20ºC - 50ºC / 10% - 90% | -20ºC - 50ºC / 10% - 90% |

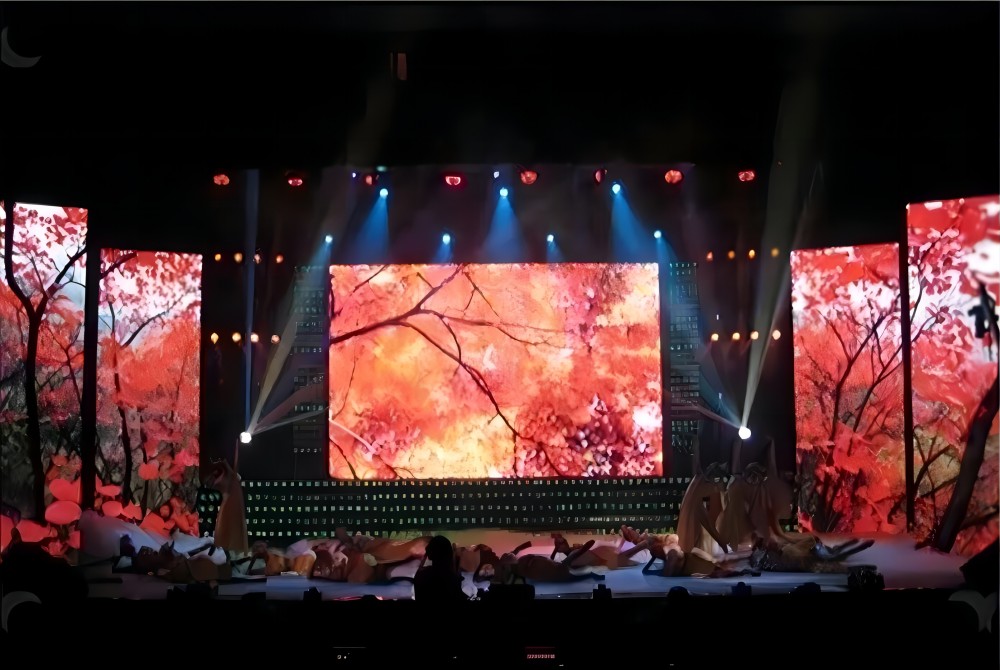

Pictures:
Q: How Can We Guarantee Quality?
A: Seven quality control steps ensure your ordered screens good:
1).Suppliers are long-term cooperated large famous company.
2).Material check by professional workers and machines.
3).Debug every modules.
4). 48-hour aging test for all modules before assembling.
5).Test every cabinet's function after assembling by engineers and
machines.
6).72-hour aging test for whole screen before shipment.
7). All details final inspection again before package.
