Full color P3.91 Outdoor Waterproof LED Panel 500x1000mm Rental LED
display
Application:
The rental LED screen D-LM series is mainly used as stage backdrop
or used to live broadcast the on-site grand occasion in some events
and activities, such as Wedding, Ceremony, Concert, Sports
competition, Commercial promotional activity, Expo., Show, Grand
party, Carnival and so on.
Features:
- Cabinet with corner protector design, it can reduce the risk of
collision during transportation.
- Led Module and power supply can be repaired from front side.It
solves the problem of large screen maintenance.
- Curved lock design and right design are available.
- Supports mixing installation of two sizes of cabinets
- 500x500x1000mm 15kg/pc
- Front and rear maintenance available
- Faster and easier to install and disassembly
- Magnetic suction installation,simple and quick maintenance for
various installation environment,improve work efficiency
Parameters:
| Model | D-LM2.6 | D-LM2.9 | D-LM3.9 | D-LM4.8 |
| Pixel Pitch | 2.604mm | 2.976mm | 3.91mm | 4.81mm |
| Pixel Configuration | SMD1415 | SMD1415 | SMD1921 | SMD1921 |
| Pixel Density | 147,456 pixels/m2 | 112,896 pixels/m2 | 65,536 pixels/m2 | 43,264 pixels/m2 |
| Module Dimensions (W x H) (mm) | 250 x 250 | 250 x 250 | 250 x 250 | 250 x 250 |
| Panel Dimensions (mm) | 500 x 1000 x 80 | 500 x 1000 x 80 | 500 x 1000 x 80 | 500 x 1000 x 80 |
| Modules Per Cabinet (W x H) | 2 x 4 | 2 x 4 | 2 x 4 | 2 x 4 |
| Module Resolution | 96 x 96 | 84 x 84 | 64 x 64 | 52 x 52 |
| Cabinet Resolution | 192 x 384 | 168 x 336 | 128 x 256 | 104 x 208 |
| Panel Material | Die Cast Aluminum | Die Cast Aluminum | Die Cast Aluminum | Die Cast Aluminum |
| Weight per Cabinet | 15kg | 15kg | 15kg | 15kg |
| Colours | 281 trillion | 281 trillion | 281 trillion | 281 trillion |
| Contrast Ratio | 5,000 : 1 | 5,000 : 1 | 5,000 : 1 | 5,000 : 1 |
| Average Power Consumption | 280 W /Sqm | 280 W /Sqm | 280 W /Sqm | 280 W /Sqm |
| Max Power Consumption | 800 W /Sqm | 800 W /Sqm | 800 W /Sqm | 800 W /Sqm |
| Brightness | >5,000 nits | >5,000 nits | >5,000 nits | >5,000 nits |
| Refresh Rate | >3,840Hz | >3,840Hz | >3,840 Hz | >3,840 Hz |
| Vertical Viewing Angle | 160° | 160° | 160° | 160° |
| Horizontal Viewing Angle | 160° | 160° | 160° | 160° |
| Expected Lifetime | 100,000 Hrs | 100,000 Hrs | 100,000 Hrs | 100,000 Hrs |
| Servicing | Front/Rear | Front/Rear | Front/Rear | Front/Rear |
| IP Rating (Front/Rear) | IP 65 | IP 65 | IP 65 | IP 65 |
| Operating Temp/Humidity | -20ºC - 50ºC / 10% - 90% | -20ºC - 50ºC / 10% - 90% | -20ºC - 50ºC / 10% - 90% | -20ºC - 50ºC / 10% - 90% |
| Storage Temp/Humidity | -20ºC - 50ºC / 10% - 90% | -20ºC - 50ºC / 10% - 90% | -20ºC - 50ºC / 10% - 90% | -20ºC - 50ºC / 10% - 90% |

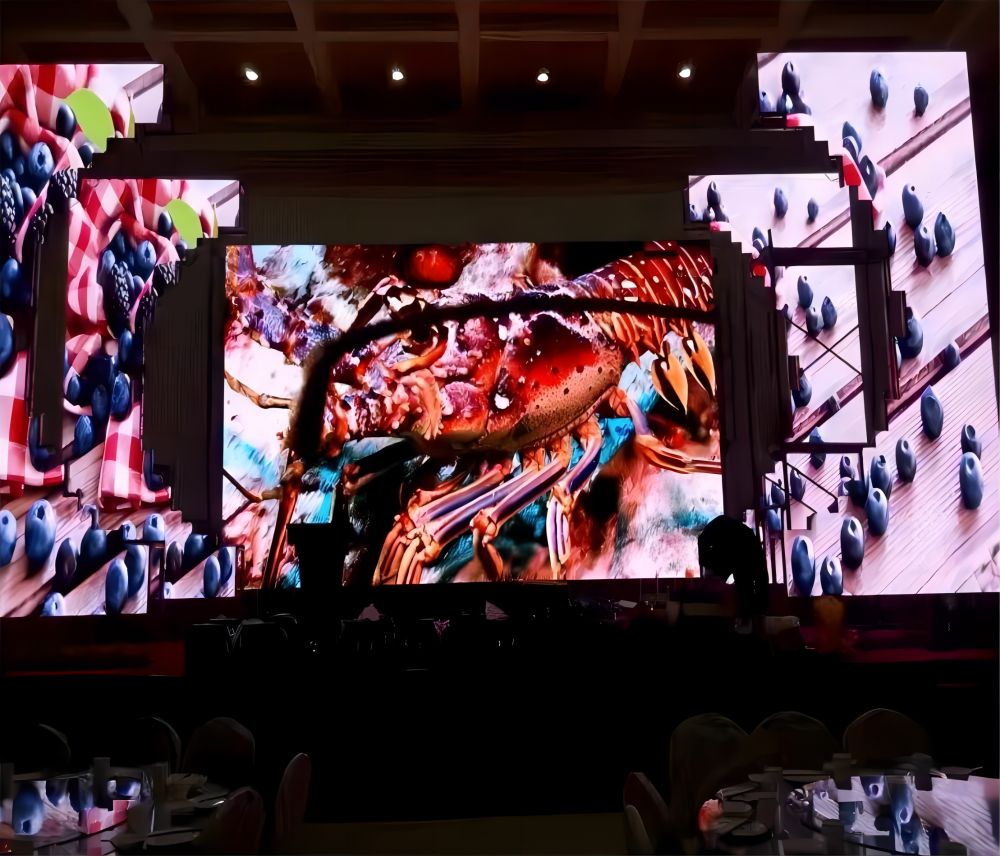

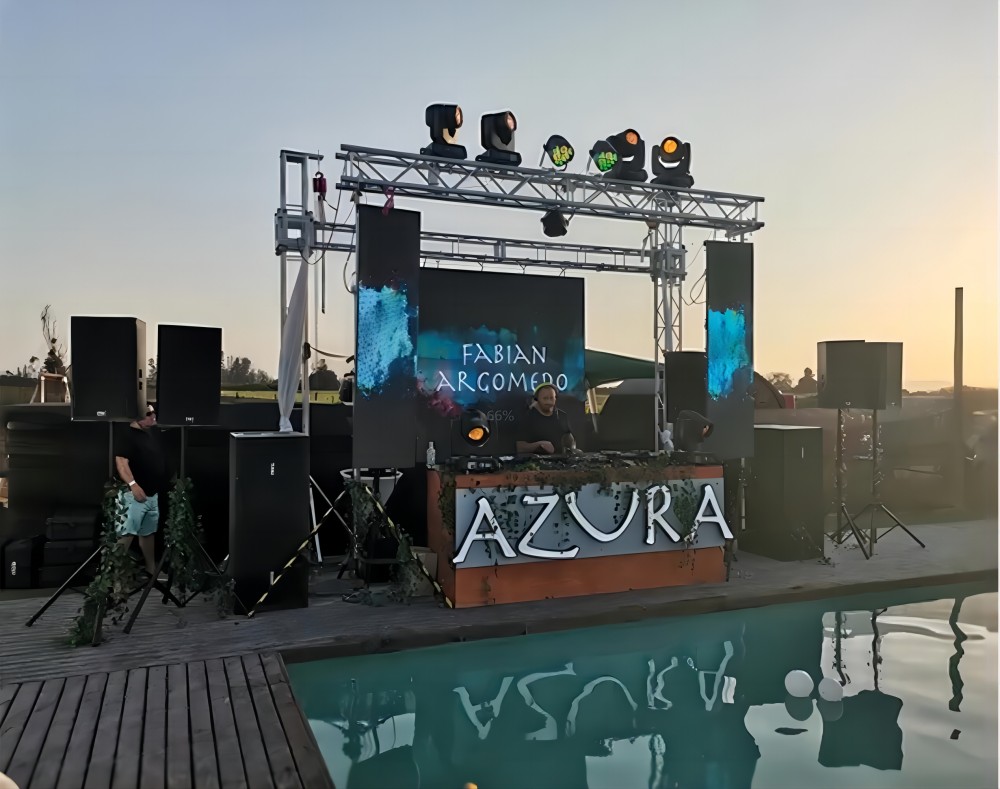

Pictures:
Every Chief LED display screen is custom-made to your
specifications, catering to a wide range of applications such as
advertising, stages, conferences, weddings, matches, and more.
1.Ultra HD Display Screen - Experience a truly cinematic and
lifelike visual feast with its high resolution and pixel density,
delivering unparalleled visual clarity.
2.High-Quality LED Modules - Our LED modules meet the highest
standards and are equipped with the latest technology, ensuring a
lifespan of over 100,000 hours.
3.Professional OEM Team - Our team of engineers provides precise
design solutions tailored to your specific requirements. We highly
value your input and will offer specialized suggestions to fulfill
your needs.
4.Good After-sales Service - 3 years after-sales service is
guaranteed,you can contact to us at any time if have any
question.we also committed to providing maintenance&replacement
service as needed
