Waterproof HD LED Display COB Small Pixel Pitch P1.2mm LED Screen
Panel
Application:
MI-X series 600X337.5mm COB small pixel pitch P1.25mm LED screen
panel welcome using in high stars hotels, securities companies,
malls, bar and other fields.
Quick Details:
- Pixel Pitch: 1.25mm,other pixel pitch P0.78125mm,
P0.9375mm,P1.5625mm supported
- COB Inversion tech
Waterproof, anti-collison
- Wide viewing angle: 170°/ 170°
- Recommended minimum viewing distance: 1.2m
- Ultra Lightweight cabinet: 4.5kg/panel
- Size 600X337.5mm with 16:9 golden ratio
- Screwless design of cabinet, high flatness <=0.1mm
- Front service
- Support dual-backup design of power supply and cards(signal)
Function and Technology Character:
- Support multiform file formats, such as VGA, Video, AVI, MOV,
MPG, DAT, VOB and so on
- The screen can get singal of camera, video, VCD, DVD, LD, TV and
so on.
- Brightness, contrast, saturation can be adjusted automatically by
itself and manual.
- Clear picture without flicker and distortion.
- Show everything with your PC synchronously.
- Super correcting technology for distortion.
- Connected and controlled by PC via Lan and remote control.
- Multiform language are available,such as English, French,
Germany, Spanish, Russian and so on
Parameters:
| Pixel pitch | mm | 1.25 |
| Brightness | nits | >=600 |
| Color temperature | deg.k | 1,000-18,500 |
| Viewing angle - Horizontal | deg. | 170(+85/-85) |
| Viewing angle - Vertical | deg. | 170(+85/-85) |
| Cabinet weight | kg | 4.5 |
| Cabinet width | mm | 600 |
| Cabinet height | mm | 337.5 |
| Cabinet depth | mm | 27.5 |
| Cabinet material | | Die-casting Aluminum |
| Operating temperature range | deg. C | -20 to 60 |
| Operating humidity range | HR | 10％ to 85％ |
| Pixel type and configuration | R/G/B | Inversion |
| Pixel matrix per cabinet | dots | 480X270 |
| LED module size(WXH) | mm | 150X168.75 |
| Module resolution(WXH) | dots | 120X135 |
| Gray scale | Levels | 65536 levels per colour |
| Brightness control | Levels | 100 |
| Frame rate | Hertz | 60 |
| Display refresh rate | Hertz | 3840 |
| Input voltage | VAC | 110/240 |
| Input power frequency | Hertz | 50/60 |
| Power (max/avg) | Watts per sq.m | 450/150 |
| Grey scale level | bits | 16 |

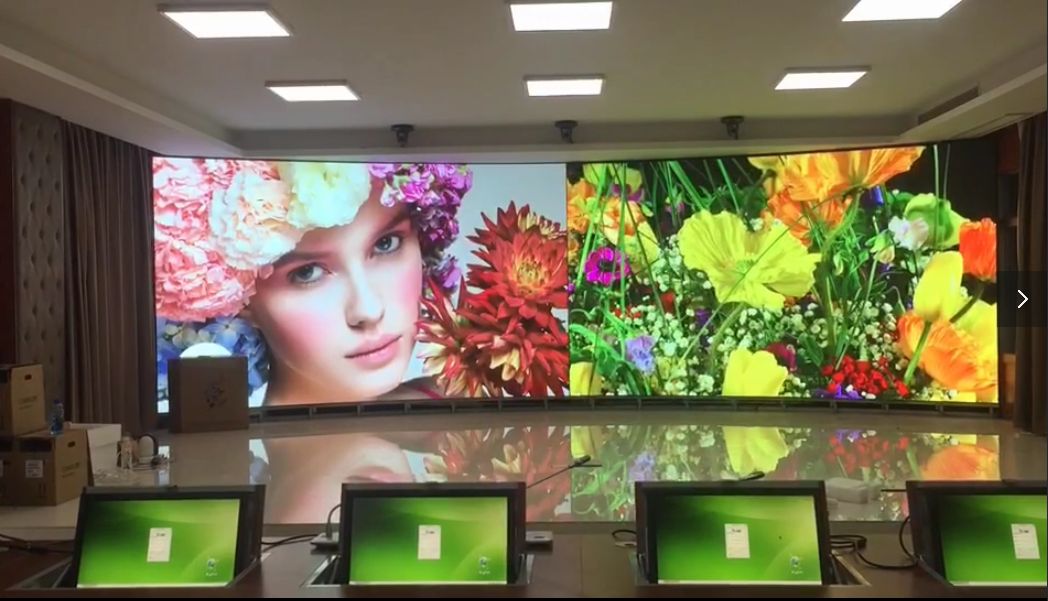

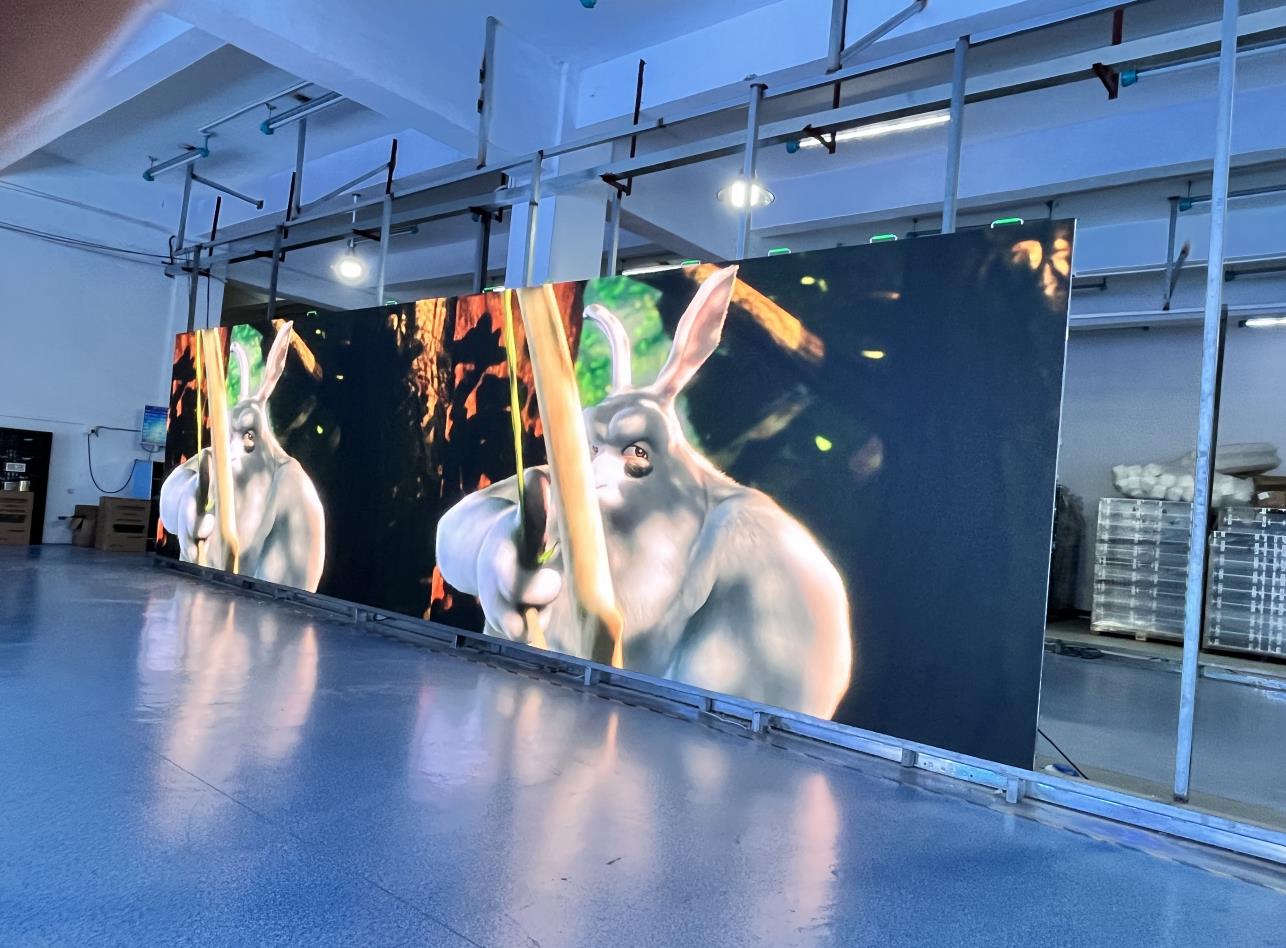

Pictures:
