Large Size 136 / 163 / 220 Inch 2K 4K HD LED TV LED Panel Size
600X337.5mm
Application:
MI-TV series MI-TV136 MI-TV163 MI-TV220 LED TV with 2K 4K HD Image
quality, suitable for for high profile hotels, rooms, schools,
conference room, shopping centers and other fields.
Quick details of 136 / 163 / 220 Inch 2K 4K HD LED TV LED
- 136'' LED TV
LED Screen size 3000X1687.5mm, including edge would be
3008X1791.5mm
Supporting mounted and standing
Includes below P1.875mm,P1.5625mm and P1.25 pixel pitch
P1.875mm 136'' LED TV - Resolution 1,600X900dots - consisited by
5X5 pcs 600X337.5 LED panel
P1.5625mm 136'' LED TV - Resolution 1,920X1,080dots - consisited by
5X5 pcs 600X337.5 LED panel
P1.25mm 136'' LED TV - Resolution 2,400X1,350dots - consisited by
5X5 pcs 600X337.5 LED panel
- 163'' LED TV
LED Screen size 3600X2025mm, including edge would be 3608X2129mm
Supporting mounted and standing
Includes below P1.875mm,P1.5625mm and P1.25 pixel pitch
P1.875mm 163'' LED TV - Resolution 1,920X1,080dots - consisited by
6X6 pcs 600X337.5 LED panel
P1.5625mm 163'' LED TV - Resolution 2,304X1,296dots - consisited by
6X6 pcs 600X337.5 LED panel
P1.25mm 163'' LED TV - Resolution 2,880X1,620dots - consisited by
6X6 pcs 600X337.5 LED panel
- 220'' LED TV
LED Screen size 4800X2700mm, including edge would be 4808X2804mm
Supporting mounted and standing
Includes below P1.875mm,P1.5625mm and P1.25 pixel pitch
P1.875mm 220'' LED TV - Resolution 2,560X1,440dots - consisited by
8X8 pcs 600X337.5 LED panel
P1.5625mm 220'' LED TV - Resolution 3,072X1,728dots - consisited by
8X8 pcs 600X337.5 LED panel
P1.25mm 220'' LED TV - Resolution 3,840X2,160dots - consisited by
8X8 pcs 600X337.5 LED panel

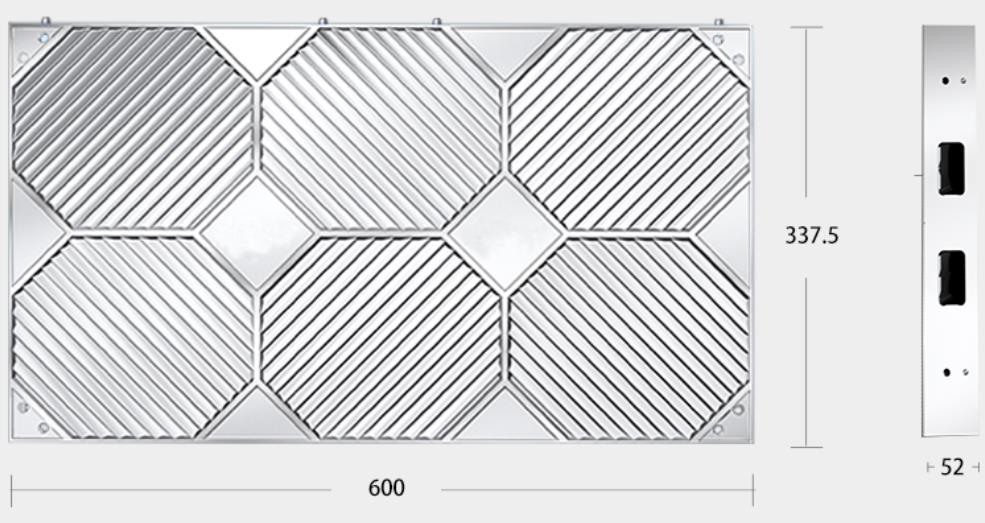

- 600X337.5mm LED panel unit feature
Die-casting aluminum cabinet
Golden ration 16:9, Ultra slim and light weight- 52mm depth and
6.9kg
High brightness 500-800nits, High refresh 3840hz, High grey scale
16 bits
LED TV Features
- Surface support GOB tech with waterproof, dustproof and
anti-collison
- Operation system support Android system,
The Android UI system interface is simple and easy to operate, and
can be clicked and clicked at any time
Supports real-time sharing of various data information through
documents, images, and video playback
Supporting multi-party video communication, allowing youto be in
the audience like aface-to-face meeting
- Wireless screen projection
Supports wireless screen projection and is compatible with multiple
terminal devices
Shared smart whiteboard, supporting multiple people writing
simultaneously
One screen multi display, multi screen networked interaction
USB plug and play
- Support Multi-touch system (need add extra cost)
Parameters:
| Model | MI-TV136 | MI-TV163 | MI-TV220 |
| Item | P1.875mm -136'' | P1.5625mm -136'' | P1.25mm -136'' | P1.875mm -163'' | P1.5625mm -163'' | P1.25mm -163'' | P1.875mm -220'' | P1.5625mm -220'' | P1.25mm-220'' |
| Size | 3.0X1.6875 | 3.0X1.6875 | 3.0X1.6875 | 3.6X2.025 | 3.6X2.025 | 3.6X2.025 | 4.8X2.7 | 4.8X2.7 | 4.8X2.7 |
| Area(sqm) | 5.0625 | 5.0625 | 5.0625 | 7.29 | 7.29 | 7.29 | 12.96 | 12.96 | 12.96 |
| Resolution(wxh) | 1600x900 | 1920x1080 | 2400x1350 | 1920x1080 | 2304x1296 | 2880x1620 | 2560x1440 | 3072x1728 | 3840x2160 |
| Standing/Mounted | Standing/Mounted | Mounted |
| IP | IP65 | IP65 | IP65 | IP65 | IP65 | IP65 | IP65 | IP65 | IP65 |
| Max Power/pc | 1750 | 1800 | 1950 | 2500 | 2550 | 2700 | 4500 | 5000 | 5500 |
| Average Power/pc | 1170 | 1200 | 1300 | 1670 | 1700 | 1800 | 3000 | 3350 | 3700 |
| Weight | 100 | 100 | 100 | 145 | 145 | 145 | 256 | 256 | 256 |
| Refresh Rate | 3840 | 3840 | 3840 | 3840 | 3840 | 3840 | 3840 | 3840 | 3840 |
| Viewing angle | 160° | 160° | 160° | 160° | 160° | 160° | 160° | 160° | 160° |
| Contrast Ratio | 5000:1 | 5000:1 | 5000:1 | 5000:1 | 5000:1 | 5000:1 | 5000:1 | 5000:1 | 5000:1 |
| Color Temperature | 2000-9500 | 2000-9500 | 2000-9500 | 2000-9500 | 2000-9500 | 2000-9500 | 2000-9500 | 2000-9500 | 2000-9500 |
| White balance brightness CD/㎡ | 200-450 | 200-450 | 200-450 | 200-450 | 200-450 | 200-450 | 200-450 | 200-450 | 200-450 |
| Operation System | Android/Wifi |
| Audio speaker | 20W | 20W | 20W | 30W | 30W | 30W | 50W | 50W | 50W |
| AI remote | Infrared / Bluetooth |
| Touch sytem | Support Infrared touch with extra cost |
| External Camera | Support external camera with extra cost |
| Input Voltage | 48V-240V |
| Border color | Silvery/Balck |
| Meeting Function | Supported ,need extra cost |
| Extend Function | HDMI/USB |
Pictures:
Q7: How does warranty work?
A: We provide 1-3 years warranty for different product. Free Repair
or Exchange of Defective Parts with One way Shipping
