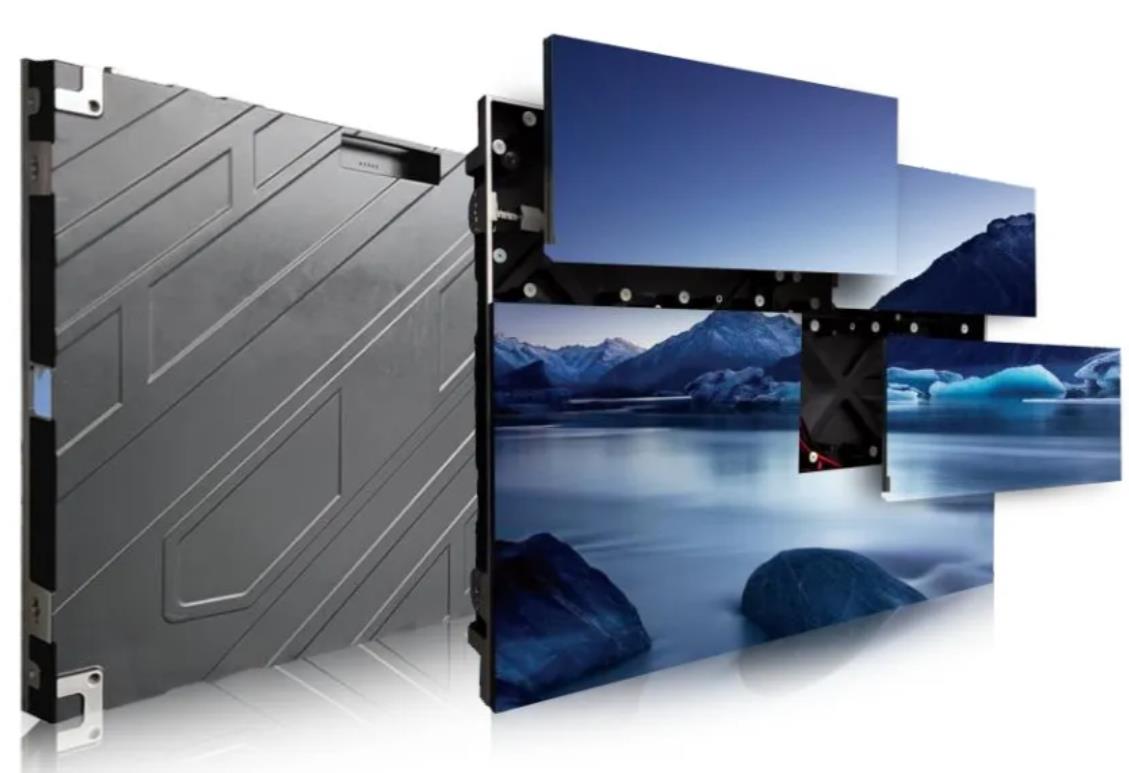

Indoor Fixed Small Pixel Pitch P1.25mm High Resolution LED Display
Application:
MI-V sereis(MI-V1.2) P1.25mm high resolution led display is good
choice for high end indoor led video wall with competitive price,
applied for high profile hotels, securities companies, schools,
stage, public security, shopping centers and other fields.
Advantage and Features:
- PWM constant current output led high refresh rata driving IC
Improving display effect with brighter color, without moire effect
when taking pictures
Low light high grey scale VS Low refresh rate low brightness
- Wireless connection between cabinets
No exposed wire, using aviation plugs inside, stable and firm to
ensure no trouble on free power transmission
Quick lock design between cabinets, fast and easy to install
tidily.
- Precise die-casting aluminum material,CNC precison
processing,high flatness
LED module, power supply,card are all front service, save the rear
side maintenace/install space

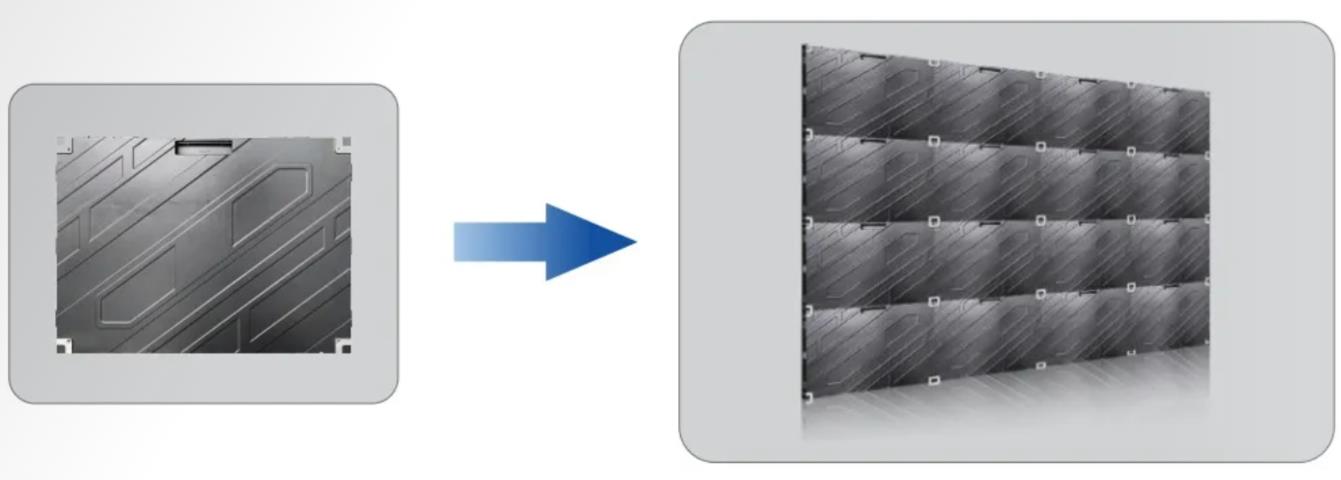

- Cabinet size 640X480mm,ratio 4:3, which can be easily spliced
16:9 ratio screen
Support diversified installation type, standing, wall
mounted,pedestal...
Parameters:
| Pixel pitch | mm | 1.25 |
| Brightness | nits | 500 |
| Viewing angle - Horizontal | deg. | 160(+80/-80) |
| Viewing angle - Vertical | deg. | 160(+80/-80) |
| Cabinet weight | kg | 8 |
| Cabinet width | mm | 640 |
| Cabinet height | mm | 480 |
| Cabinet depth | mm | 70 |
| Cabinet material | | Die-casting Aluminum |
| Operating temperature range | deg. C | -20 to 60 |
| Operating humidity range | HR | 10％ to 85％ |
| Pixel type and configuration | R/G/B | SMD1010 |
| Pixel matrix per cabinet | dots | 512X384 |
| LED module size(WXH) | mm | 320X160 |
| Module resolution(WXH) | dots | 256X128 |
| Gray scale | Levels | 65536 levels per colour |
| Brightness control | Levels | 100 |
| Frame rate | Hertz | 60 |
| Display refresh rate | Hertz | 3840 |
| Input voltage | VAC | 110/240 |
| Input power frequency | Hertz | 50/60 |
| Power (max/avg) | Watts per sq.m | 550/200 |
| Grey scale level | bits | 16 |
