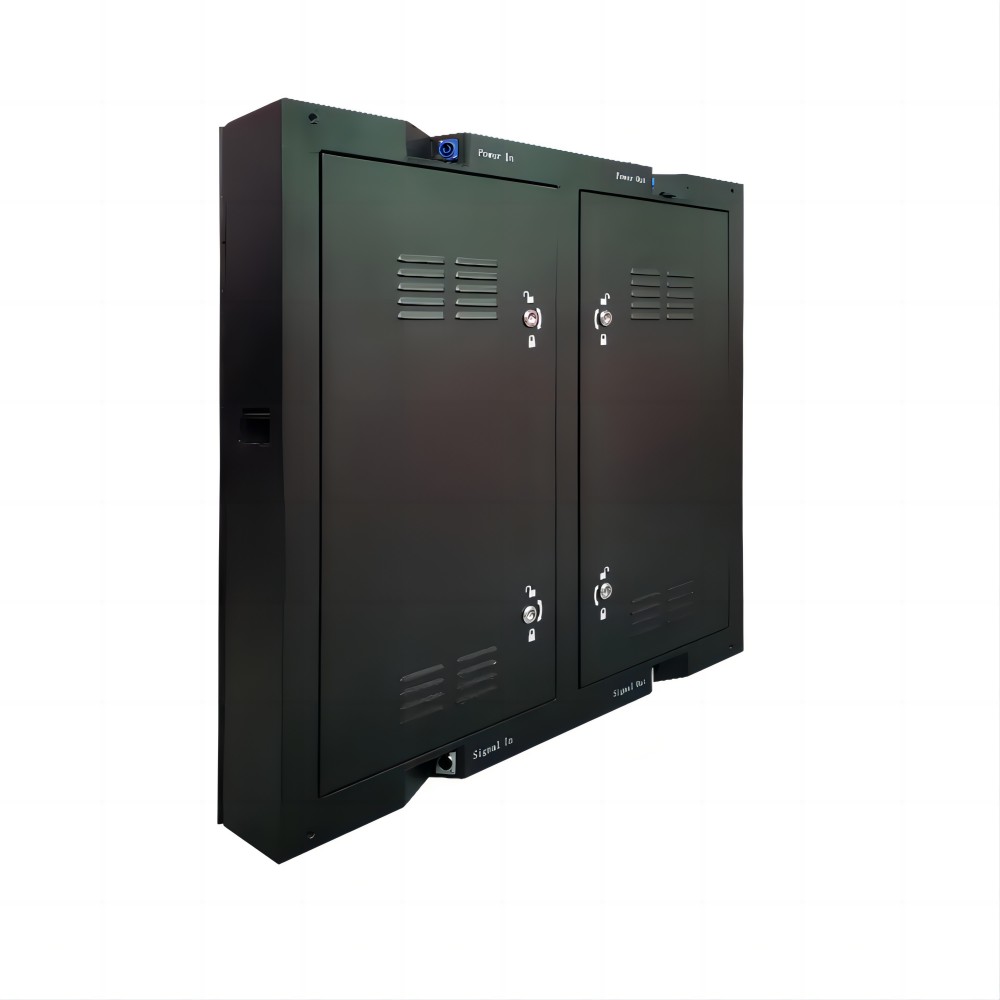

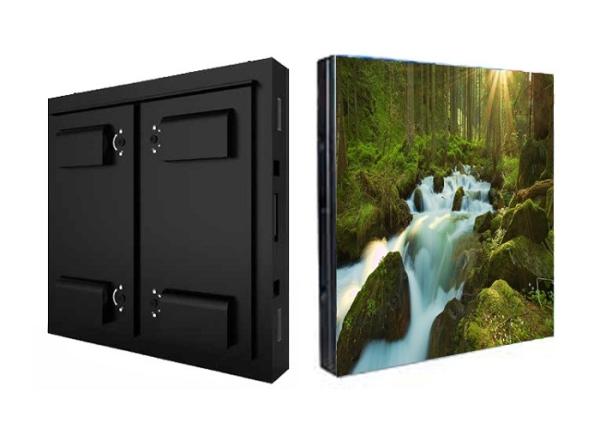

Outside High Brightness LED Advertising Video Wall LED Screen P3mm
P4mm
High Definition Advertising LED Display P3mm P4mm Outdoor
Electronic Video Wall
E-A Series traditional fixed installation advertising led screens
are widely used for commercial advertising or broadcasting in
school, airport, station, shopping mall, square, public places,
advertising media and so on.
Quick Details:
- Pixel Pitch: 3mm,4mm
- IP rating: front: IP65/ rear: IP54, waterproof
- SMD LEDs, Wide viewing angle: 160°/ 160°
- Input voltage: 110V/220V AC, 50/60Hz
- Recommended minimum viewing distance: 3m-4m
- Steel cabinet or Aluminum cabinet
- Power ,signal plug choosed
- Cabinet size customized according to LED module size 320X160mm
Regular size 960X960mm, other size
960X640mm,960X800mm,1280X960mm....
- Traditional Design
- Power/Signal cable plug choosed design
- Support 90 degree or curve splicing
Support eye naked 3D LED Screen
-Support customized LED lamp,power supply and engery saving IC,
making LED cabinet/display engergy saving.
Parameters:
| Model | E-A3 | E-A4 |
| Pixel Pitch | 3.0769mm | 4mm |
| Pixel Configuration | SMD1921 | SMD1921 |
| Pixel Density | 105625 pixels/m2 | 62500 pixels/m2 |
| Module Dimensions(W x H)(mm) | 320 x 160 | 320 x 160 |
| Panel Dimensions (mm) | 960 x960 x 180 | 960 x960 x 180 |
| Modules Per Cabinet (W x H) | 3 x 6 | 3 x 6 |
| Module Resolution | 104 x 104 | 80 x 80 |
| Cabinet Resolution | 312 x 312 | 240 x 240 |
| Panel Material | Cold steel | Cold steel |
| Weight per Cabinet | 39kgs | 39kgs |
| Colors | 281 trillion | 281 trillion |
| Contrast Ratio | 5,000 : 1 | 5,000 : 1 |
| Average Power Consumption | 330 W /Sqm | 330 W /Sqm |
| Max Power Consumption | 950 W /Sqm | 950 W /Sqm |
| Brightness | >6,000 nits | >6,000 nits |
| Refresh Rate | >3,840Hz | >3,840Hz |
| Vertical Viewing Angle | 160° | 160° |
| Horizontal Viewing Angle | 160° | 160° |
| Expected Lifetime | 100,000 Hrs | 100,000 Hrs |
| Servicing | Rear | Rear |
Our Services
1. 20 Years professional led display manufacturer
2. Short delivery time: 5-15 working days, adjustable according to
customer request
3. Wholesale price
4. OEM and ODM service
5. Customizable product upon request
