Waterproof Rgb Led Screen , Real Smd 3in1 P10 Outdoor Full Color
Led Display
Waterproof Led Advertising Display Outdoor RGB Full Color P10 LED
Screen Board
LED display screens are an essential tool for large format
advertising in high-traffic environments. Therefore, this kind of
big-format screens are popular among advertising agencies, shopping
centers, big stores and supermarkets.
In addition to their commercial and corporate uses, they are also
used by public institutions, that use these big LED screens as a
massive information outlet to improve immediate communication with
citizens.
Meanwhile, Outdoor display screens are installed in areas exposed
to rain and outdoors. This implies that they require protections to
improve water-resistance and therefore they are slightly more
expensive than indoor screens.
These LED screens are designed to operate 24/7, during many years,
under any weather condition, without this affecting its
performance. Visibility is guaranteed, even under direct sunlight
and night hours, thanks to high-luminosity integrated LEDs. Of
course, this must be controlled by an automatic system that will
adjust brightness and contrast.
Features and Details:
- Pixel Pitch: 10mm
- LED Module size 320X320 front service
- IP rating: front: IP65/ rear: IP54, waterproof
- Input voltage: 110V/220V AC, 50/60Hz
- Recommended minimum viewing distance: 10m
- Steel cabinet or Aluminum cabinet
- Power ,signal plug choosed
- Cabinet size customized according to LED module size 320X320mm
Regular size 960X960mm, other size
960X640mm,960X480mm,1280X960mm....
- LED module support ront and rear Service
- Cabinet Design
Support adding power/signal plug on cabinet surface
- Good Heat-dissipation
Small fans inside cabinets,the heat caused by ICs and Power can be
discharged effectively ,keeping the screen working steadily.
- Outdoor full waterproof iron cabinet
The combined cable and power cord are waterproof,can meet the
demand of outdoor application even harsh environments.
- Outdoor P10 effect
P10 is a by constant current driver IC,control of semiconductor
light emitting diode display mode,by controlling the trichromatic
lamp brightness changes,showing a variety of colors,display
text,images,animation,graphics,quotes,video,video signal display
screen.
- Different Installation types
Parameters:
| Model | E-B10 |
| Pixel Pitch | 10mm |
| Pixel Configuration | SMD3535 |
| Pixel Density | 10000 pixels/m2 |
| Module Dimensions(W x H)(mm) | 320 x 320 |
| Panel Dimensions (mm) | 960 x960 x 150 |
| Modules Per Cabinet (W x H) | 3 x 3 |
| Module Resolution | 32 x 32 |
| Cabinet Resolution | 96 x 96 |
| Panel Material | Cold steel |
| Weight per Cabinet | 41kgs |
| Colors | 281 trillion |
| Contrast Ratio | 5,000 : 1 |
| Average Power Consumption | 330 W /Sqm |
| Max Power Consumption | 950 W /Sqm |
| Brightness | >6,000 nits |
| Refresh Rate | >3,840Hz |
| Vertical Viewing Angle | 160° |
| Horizontal Viewing Angle | 160° |
| Expected Lifetime | 100,000 Hrs |
| Servicing | Front / Rear |
| IP Rating (Front/Rear) | IP65 / IP43 |
| Operating Temp/Humidity | -20ºC - 50ºC /
10% - 90% |
| Storage Temp/Humidity | -20ºC - 50ºC /
10% - 90% |

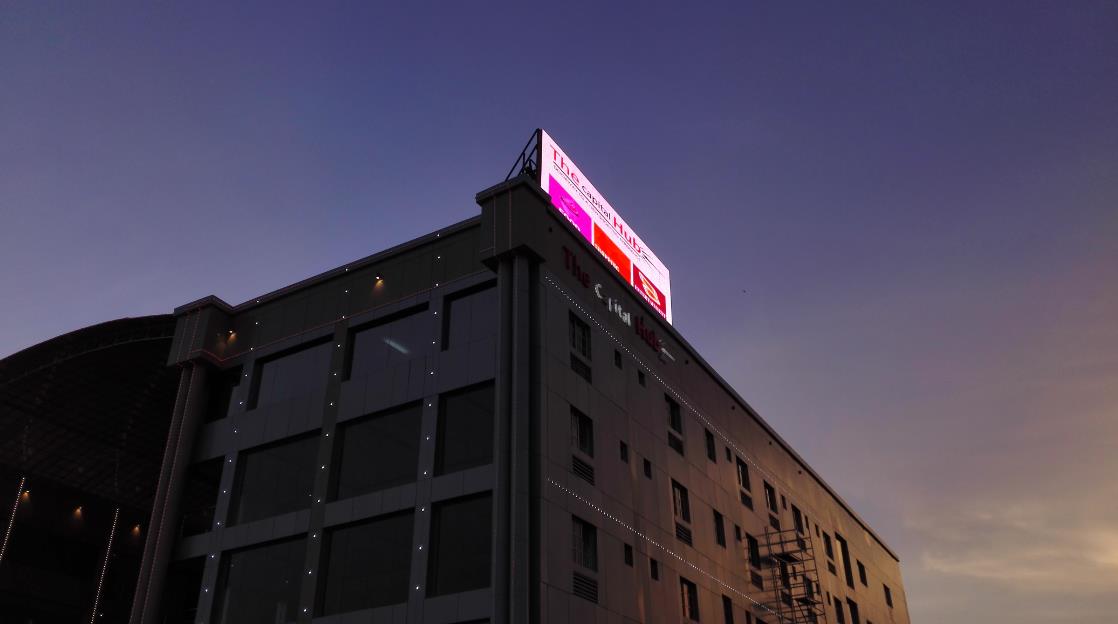

Pictures:
1. 20 Years professional led display manufacturer
2. Short delivery time: 5-15 working days, adjustable according to
customer request
3. Wholesale price
4. OEM and ODM service
5. Customizable product upon request
