Waterproof Outdoor Advertising LED Display P6mm P8mm Light Weight
LED Cabinet
960X960mm P6 P8 Outdoor LED Display With Light Weight Cabinet
960X960mm Outdoor LED Display Light Weight Cabinet 6000nits High
Brightness LED Screen
Application Of Outdoor LED Screen Display
Widely used in government agencies for government affairs,
stations, banks, taxation, post and telecommunications, hospitals,
customs, securities markets, bidding markets, schools, factories,
ports, stadiums, airports,
industry and commerce, taxation, customs, monitoring centers and
advertising. The entertainment industry, and real estate trading
centers and other window industries that need publicity, as well as
highways, urban traffic management, urban environmental index
display, etc.
Quick Details:
- Pixel Pitch: 6.67mm, 8mm
- Cabinet size: 960x960mm Aluminum Cabinet
- Recommended Viewing Distance: 6m
- Refresh Rate: 3840Hz
- Ingress Rate: IP65 Outdoor Standard
- LED Module size 320X160mm
- Support Engergy Saving Solution with common cathode solution with
pointed LED lamps,Power supply and IC
Parameters:
| Model | E-M6 | E-M8 |
| Pixel Pitch | 6.67mm | 8mm |
| Pixel Configuration | SMD2727 | SMD2727 |
| Pixel Density | 22500 pixels/m2 | 15625 pixels/m2 |
| Module Dimensions(W x H)(mm) | 320 x 160 | 320 x 160 |
| Panel Dimensions (mm) | 960 x960 x 120 | 960 x960 x 120 |
| Modules Per Cabinet (W x H) | 3 x 6 | 3 x 6 |
| Module Resolution | 48 x 48 | 40 x 40 |
| Cabinet Resolution | 144 x 144 | 120 x 120 |
| Panel Material | Aluminum | Aluminum |
| Weight per Cabinet | 33kg | 33kgs |
| Colors | 281 trillion | 281 trillion |
| Contrast Ratio | 5,000 : 1 | 5,000 : 1 |
| Average Power Consumption | 330 W /Sqm | 330 W /Sqm |
| Max Power Consumption | 950 W /Sqm | 950 W /Sqm |
| Brightness | >6,000 nits | >6,000 nits |
| Refresh Rate | >3,840Hz | >3,840Hz |
| Vertical Viewing Angle | 160° | 160° |
| Horizontal Viewing Angle | 160° | 160° |
| Expected Lifetime | 100,000 Hrs | 100,000 Hrs |
| Servicing | Rear | Rear |
| IP Rating (Front/Rear) | IP65 / IP54 | IP65 / IP54 |
| Operating Temp/Humidity | -20ºC - 50ºC /
10% - 90% | -20ºC - 50ºC /
10% - 90% |
| Storage Temp/Humidity | -20ºC - 50ºC /
10% - 90% | -20ºC - 50ºC /
10% - 90% |

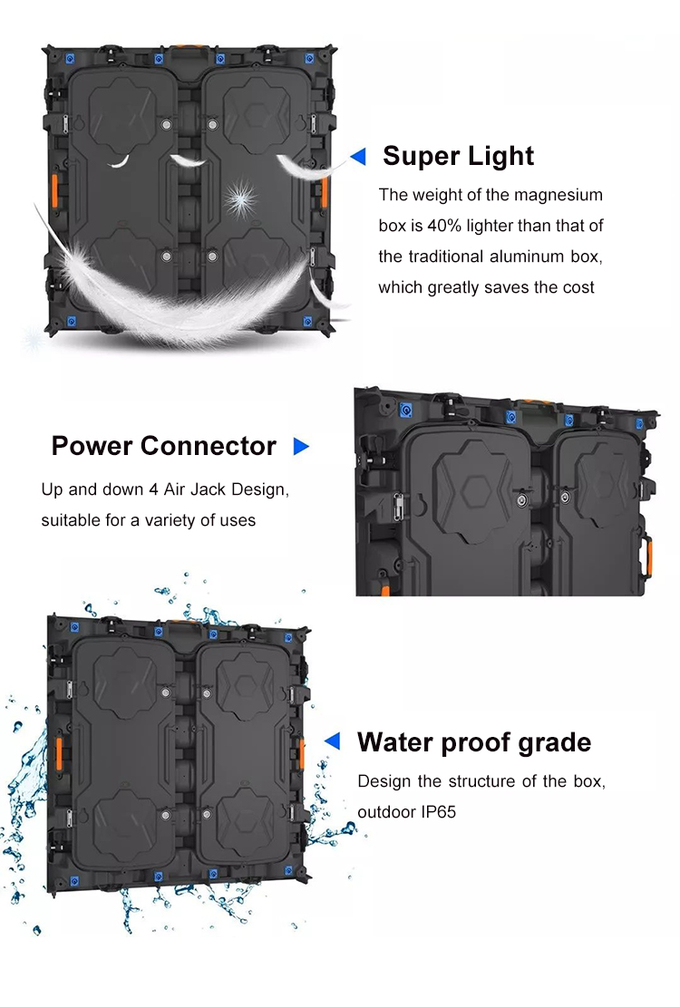

Pictures:
Our Services
1. 20 Years professional led display manufacturer
2. Short delivery time: 5-15 working days, adjustable according to
customer request
3. Wholesale price
4. OEM and ODM service
5. Customizable product upon request
