IP65 Outdoor Advertising LED Display P6.67mm P8mm 3840Hz Refresh
Rate
Outdoor LED Advertising Display P8mm 3840Hz Refresh Rate

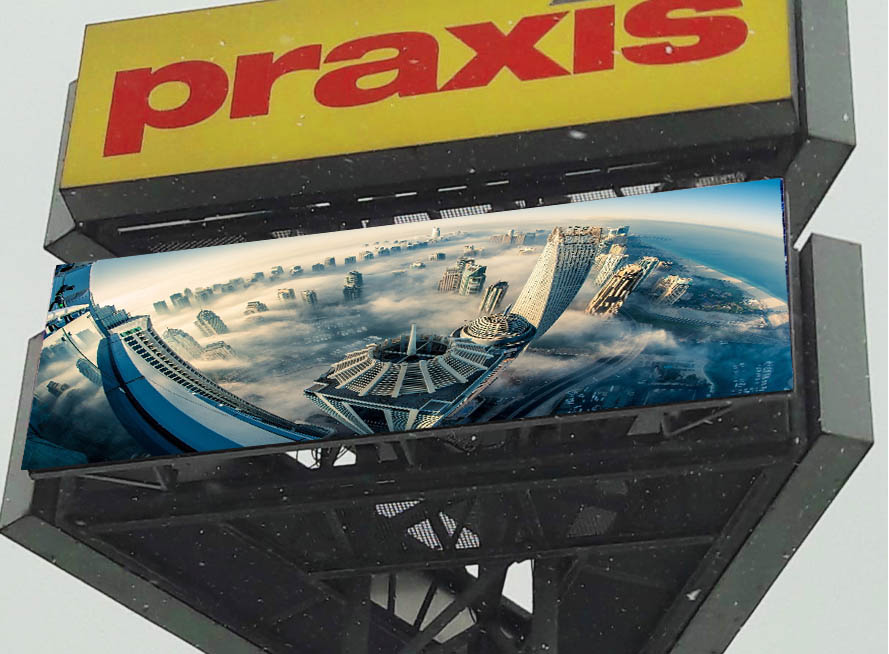

Application Of Outdoor LED Advertising Display
Front maintenance: Front maintenance is characterized by saving
space. For wall-mounted structures, space is extremely expensive,
so there will not be too many places left as maintenance channels.
Therefore, the pre-maintenance can greatly reduce the overall
thickness of the LED full-color display screen structure, which can
not only be well integrated with the surrounding building
environment but also save space while ensuring the effect. However,
this structure has high requirements for the heat dissipation
function of the equipment. The advantage of front maintenance is
that the price is slightly lower, which is suitable for roof type,
column type and other installation scenarios, and the inspection
and maintenance are convenient and fast. For those large LED
full-color display screens installed on the exterior walls of
buildings, maintenance channels must be designed so that
maintenance personnel can maintain and repair them from the back of
the screen body.
Feature:
- Die-cast aluminum cabinet, light weight,Fast lock for quick
installation, only takes 10 seconds

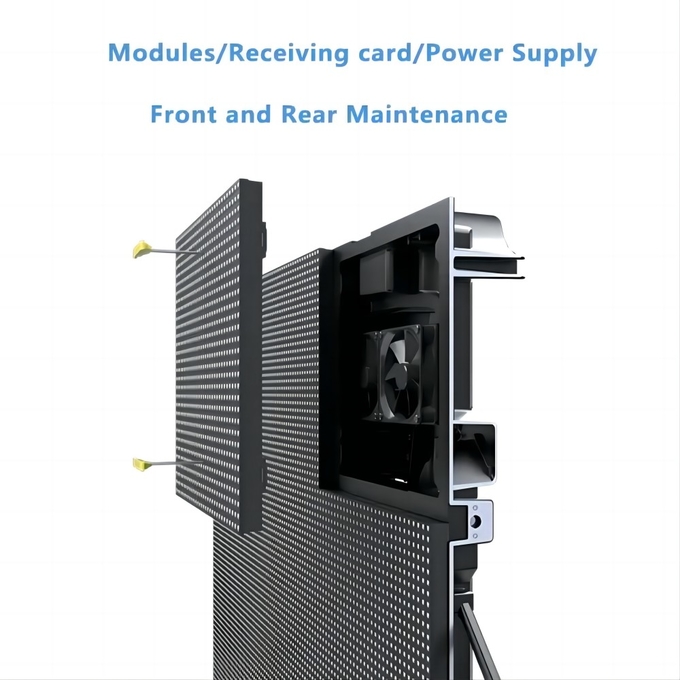

- Front/Rear maintenance, direct wall mounting with high-precision
led screen cabinet, extending service life
- IP65 waterproof
- High brightness and high contrast, clear viewing in outdoor
bright environment
- Brilliant picture, vivid colors, stable picture quality, suitable
for outdoor environment use
- Reduce operating costs,effectively extend led screen life
- Pixel Pitch: 6.67mm, 8mm

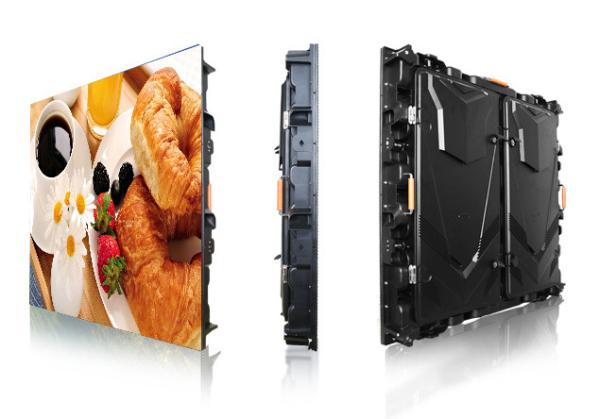

- Cabinet size: 960x960mm Die-casting Aluminum Cabinet
- Recommended Viewing Distance: 6m,8m
- Refresh Rate: 3840Hz
- LED Module size 320X320mm
Rear Service: 320X160mm LED Module
Front Service 320X320mm LED Module

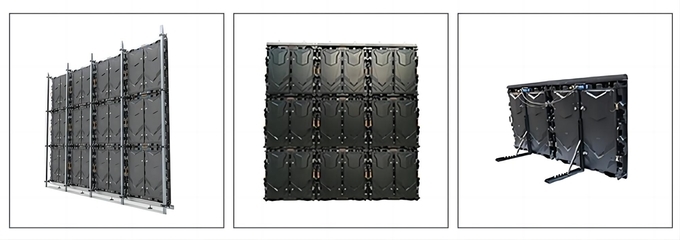

- Multi Installation Way of Cabinet
Support fixed installation for advertisement, adding flying bar,
connectiors and fast lock for rental installation,adding rubber
sushion and bracket for perimeter installation LED display
- IP65 Waterproof
IP65 waterproof protection on the front side ensures continuous and
stable operation in all kinds of outdoor environments.
- Seamless Splicing
Equipped with unique lock, the position of each cabinet can be
precisely adjusted from Six directions
Parameters:
| Model | E-N6 | E-N8 |
| Pixel Pitch | 6.67mm | 8mm |
| Pixel Configuration | SMD2727 | SMD2727 |
| Pixel Density | 22500 pixels/m2 | 15625 pixels/m2 |
| Module Dimensions(W x H)(mm) | 320 x 320 | 320 x 320 |
| Panel Dimensions (mm) | 960 x960 x 120 | 960 x960 x 120 |
| Modules Per Cabinet (W x H) | 3 x 3 | 3 x 3 |
| Module Resolution | 48 x 48 | 40 x 40 |
| Cabinet Resolution | 144 x 144 | 120 x 120 |
| Panel Material | Die-casting Aluminum | Die-casting Aluminum |
| Weight per Cabinet | 35kgs | 35kgs |
| Colours | 281 trillion | 281 trillion |
| Contrast Ratio | 5,000 : 1 | 5,000 : 1 |
| Average Power Consumption | 330 W /Sqm | 330 W /Sqm |
| Max Power Consumption | 950 W /Sqm | 950 W /Sqm |
| Brightness | >6,000 nits | >6,000 nits |
| Refresh Rate | >3,840Hz | >3,840Hz |
| Vertical Viewing Angle | 160° | 160° |
| Horizontal Viewing Angle | 160° | 160° |
| Expected Lifetime | 100,000 Hrs | 100,000 Hrs |
| Servicing | Front / Rear | Front / Rear |
| IP Rating (Front/Rear) | IP65 / IP54 | IP65 / IP54 |
| Operating Temp/Humidity | -20ºC - 50ºC /
10% - 90% | -20ºC - 50ºC /
10% - 90% |
| Storage Temp/Humidity | -20ºC - 50ºC /
10% - 90% | -20ºC - 50ºC /
10% - 90% |
Pictures:
Our Services
1. 20 Years professional led display manufacturer
2. Short delivery time: 5-15 working days, adjustable according to
customer request
3. Wholesale price
4. OEM and ODM service
5. Customizable product upon request
