Street Pole Outdoor LED Signs Support Wifi 4G Remote Control Light Weight Panel
Street Pole LED Display Screen,LED Display cabinet,LED Signature
Features and Advantages:
- Customized Design according to customers' required.
- High brightness above 5000nits, visible from every direction even face to direct sunshine.
- High IP Rating IP65, good waterproof and dust resistance, suitable for every condition.
- Wide viewing angle 160° V/H
- Good heat dissipation with fans and using brand power supply, long lifespan.
- Input voltage: 110V/220V AC, 50/60Hz
- Steel cabinet or Aluminum cabinet
- Cabinet/LED Sign size customized according to LED module size
- Materials could be Steel or Aluminum
- Asynchornous control is welcomed
- 3 Type Different LED sign cabinets with different size LED Modules.
A. P-A series
LED Module size 320x160mm, rear service with screws.

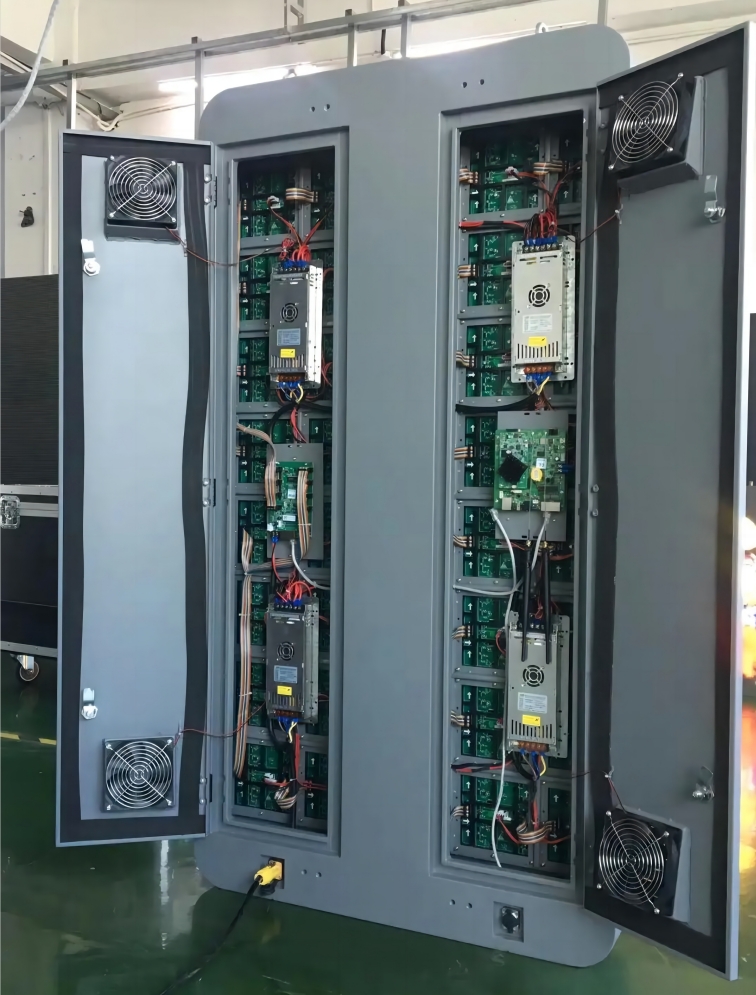

Cabinet Open from side
Welcomed Pole LED Sign cabinet size could be 1280X640mm(HXW),960X640mm(HXW),1600X960mm(HXW)....
Pixel Pitch P2mm, P2.5mm,P3.076mm,P4mm,P5mm,P6.67mm,P8mm,P10mm
| Model | P-A2 | P-A2.5 | P-A3 | P-A4 | P-A5 | P-A6 | P-A8 | P-A10 |
| Pixel Pitch | 2mm | 2.5mm | 3.0769mm | 4mm | 5mm | 6.67mm | 8mm | 10mm |
| Pixel Configuration | SMD1211 | SMD1415 | SMD1921 | SMD1921 | SMD1921 | SMD2727 | SMD2727 | SMD3535 |
| Pixel Density | 250000 pixels/m2 | 160000 pixels/m2 | 105625 pixels/m2 | 62500 pixels/m2 | 40000 pixels/m2 | 22500 pixels/m2 | 15625 pixels/m2 | 10000 pixels/m2 |
| Module Dimensions (W x H)(mm) | 160 x 160 | 320 x 160 | 320 x 160 | 320 x 160 | 320 x 160 | 320 x 160 | 320 x 160 | 320 x 160 |
| Module Resolution | 80 x 80 | 128 x 128 | 104 x 104 | 80 x 80 | 64 x 64 | 48 x 48 | 40 x 40 | 32 x 32 |
| Colors | 281 trillion | 281 trillion | 281 trillion | 281 trillion | 281 trillion | 281 trillion | 281 trillion | 281 trillion |
| Contrast Ratio | 5,000 : 1 | 5,000 : 1 | 5,000 : 1 | 5,000 : 1 | 5,000 : 1 | 5,000 : 1 | 5,000 : 1 | 5,000 : 1 |
| Average Power Consumption | 330 W /Sqm | 330 W /Sqm | 330 W /Sqm | 330 W /Sqm | 330 W /Sqm | 330 W /Sqm | 330 W /Sqm | 330 W /Sqm |
| Max Power Consumption | 950 W /Sqm | 950 W /Sqm | 950 W /Sqm | 950 W /Sqm | 950 W /Sqm | 950 W /Sqm | 950 W /Sqm | 950 W /Sqm |
| Brightness | >6,000 nits | >6,000 nits | >6,000 nits | >6,000 nits | >6,000 nits | >6,000 nits | >6,000 nits | >6,000 nits |
| Refresh Rate | >3,840Hz | >3,840Hz | >3,840Hz | >3,840Hz | >3,840Hz | >3,840Hz | >3,840Hz | >3,840Hz |
| Vertical Viewing Angle | 160° | 160° | 160° | 160° | 160° | 160° | 160° | 160° |
| Horizontal Viewing Angle | 160° | 160° | 160° | 160° | 160° | 160° | 160° | 160° |
| Expected Lifetime | 100,000 Hrs | 100,000 Hrs | 100,000 Hrs | 100,000 Hrs | 100,000 Hrs | 100,000 Hrs | 100,000 Hrs | 100,000 Hrs |
| Servicing | Rear | Rear | Rear | Rear | Rear | Rear | Rear | Rear |
B. P-B series
LED Module size 320x320mm, Front Service.
LED Modules, power supply, cards could be taken from front side
Size could be 1280X640mm(HXW),960X640mm(HXW),1600X1280mm(HXW)....
Pixel Pitch P4mm, P5mm,P6.67mm,P8mm,P10mm
| Model | P-B4 | P-B5 | P-B6 | P-B8 | P-B10 |
| Pixel Pitch | 4mm | 5mm | 6.67mm | 8mm | 10mm |
| Pixel Configuration | SMD1921 | SMD1921 | SMD2727 | SMD2727 | SMD3535 |
| Pixel Density | 62500 pixels/m2 | 40000 pixels/m2 | 22500 pixels/m2 | 15625 pixels/m2 | 10000 pixels/m2 |
| Module Dimensions (W x H)(mm) | 320 x 320 | 320 x 320 | 320 x 320 | 320 x 320 | 320 x 320 |
| Module Resolution | 80 x 80 | 64 x 64 | 48 x 48 | 40 x 40 | 32 x 32 |
| Colors | 281 trillion | 281 trillion | 281 trillion | 281 trillion | 281 trillion |
| Contrast Ratio | 5,000 : 1 | 5,000 : 1 | 5,000 : 1 | 5,000 : 1 | 5,000 : 1 |
| Average Power Consumption | 330 W /Sqm | 330 W /Sqm | 330 W /Sqm | 330 W /Sqm | 330 W /Sqm |
| Max Power Consumption | 950 W /Sqm | 950 W /Sqm | 950 W /Sqm | 950 W /Sqm | 950 W /Sqm |
| Brightness | >6,000 nits | >6,000 nits | >6,000 nits | >6,000 nits | >6,000 nits |
| Refresh Rate | >3,840Hz | >3,840Hz | >3,840Hz | >3,840Hz | >3,840Hz |
| Vertical Viewing Angle | 160° | 160° | 160° | 160° | 160° |
| Horizontal Viewing Angle | 160° | 160° | 160° | 160° | 160° |
| Expected Lifetime | 100,000 Hrs | 100,000 Hrs | 100,000 Hrs | 100,000 Hrs | 100,000 Hrs |
| Servicing | Front / Rear | Front / Rear | Front / Rear | Front / Rear | Front / Rear |
C. P-C series
LED Module size 250x250mm, Front/ Rear service
LED Sign cabinet size could be 1000X1000mm,1000X750mm,750X750mm,1250X1000mm....
Pixel Pitch P2.976mm, P3.91mm,P4.81mm
| Model | P-C2.9 | P-C3.9 | P-C4.8 |
| Pixel Pitch | 2.976mm | 3.91mm | 4.81mm |
| Pixel Configuration | SMD1515 | SMD1921 | SMD1921 |
| Pixel Density | 112896 pixels/m2 | 65536 pixels/m2 | 43264 pixels/m2 |
| Module Dimensions (W x H)(mm) | 250 x 250 | 250 x 250 | 250 x 250 |
| Module Resolution | 84 x 84 | 64 x 64 | 52 x 52 |
| Colors | 281 trillion | 281 trillion | 281 trillion |
| Contrast Ratio | 5,000 : 1 | 5,000 : 1 | 5,000 : 1 |
| Average Power Consumption | 300 W /Sqm | 300 W /Sqm | 300 W /Sqm |
| Max Power Consumption | 900 W /Sqm | 900 W /Sqm | 900 W /Sqm |
| Brightness | >5,000 nits | >5,000 nits | >5,000 nits |
| Refresh Rate | >3,840Hz | >3,840Hz | >3,840Hz |
| Vertical Viewing Angle | 160° | 160° | 160° |
| Horizontal Viewing Angle | 160° | 160° | 160° |
| Expected Lifetime | 100,000 Hrs | 100,000 Hrs | 100,000 Hrs |
| Servicing | Front / Rear | Front / Rear | Front / Rear |
More Customized Pole LED Sign Pictures
Our Services
1. 20 Years professional led display manufacturer
2. Short delivery time: 5-15 working days, adjustable according to customer request
3. Wholesale price
4. OEM and ODM service
5. Customizable product upon request
6. 24/7 hrs online service
