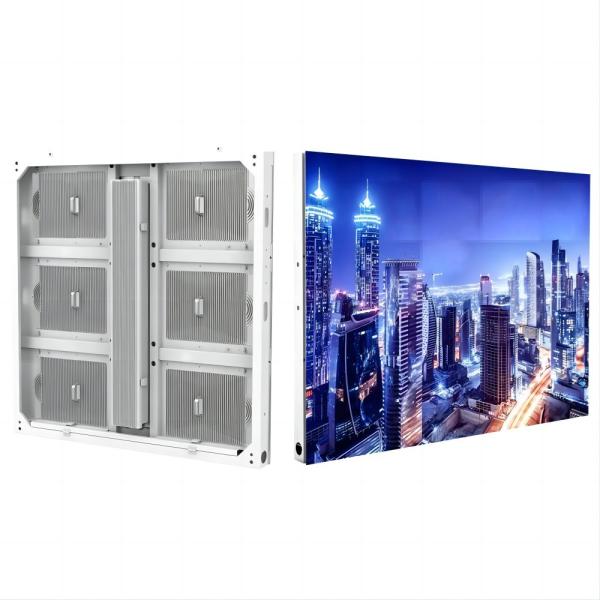

Energy Saving Fixed LED Display Outdoor Advertising LED Video Wall
Screen
Outdoor LED Billboard, Outdoor Fixed LED Billboard With 3840Hz
Refresh Rate
Outdoor 960x960mm Aluminum Cabinet High Brightness With 3840Hz
Refresh Rate
S Pro Series is widely used in government agencies for government
affairs, stations, banks, taxation, post and telecommunications,
hospitals, securities markets, bidding markets, schools, factories,
ports, stadiums, airports, industry and commerce, monitoring
centers and advertising. The entertainment industry, and real
estate tradingcenters and other window industries that need
publicity, as well as highways, urban traffic management, urban
environmental index display, etc.
Features and Details:

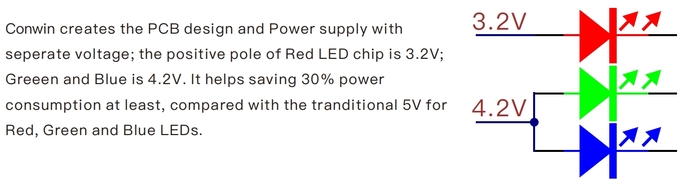

- The common cathode scheme is adopted, 30% energy saving compared
with traditional LED display;

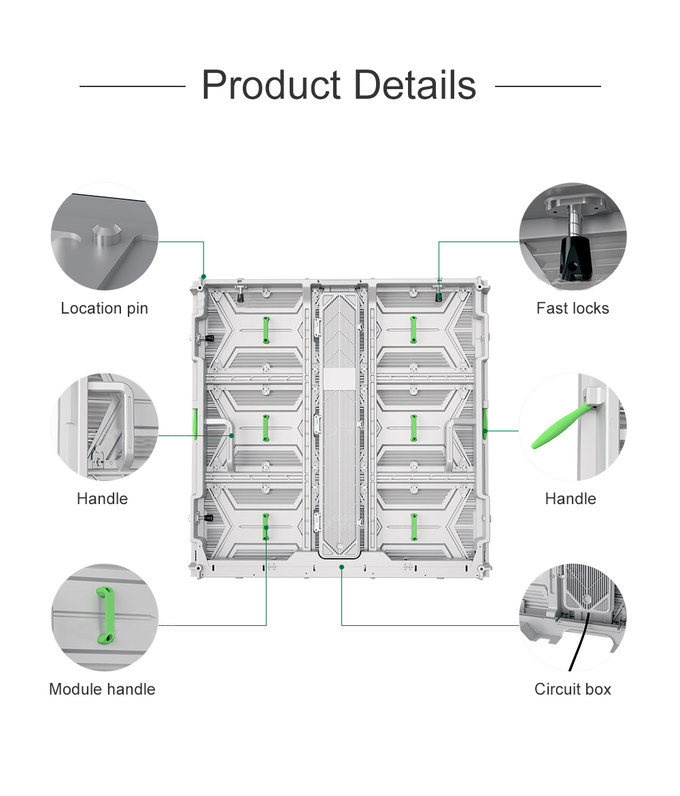

- Fully sealed module, supporting front and rear maintenance, no
maintenance access, low installation and maintenance cost;
- No screws when assemble and disassemble the modules, the power
box, and the module can be quickly assembled, disassembled and
maintained from the front;
- Full cast aluminum cabinet, ultra light and ultra-thin, with high
strength;
- High waterproof grade, IP65(Test reached IP66) for the whole
cabinet;
- Support Dual voltage power supply has the function of automatic
deployment and dual output to ensure the stability of power supply;
- Pixel Pitch: 4.44mm,5.7m,6.67mm, 8mm, 10mm
- Wide viewing angle at H:160° / V: 160°. .
- Excellent heat dissipation with aluminum LED module also.
- LED Module size 480X320mm
- Support Front and Rear service, support directly on wall
- 960X960mm with light weight 28kg
- Reliable - high strength and hardness, good heat dissipation
- Cost - light weight of the box, the required installation costs
are low; low power consumption of the box, saving operating costs
and reducing labor costs
- 3D Naked Eye Video Wall
Parameters:
| Model | S-Pro4 | S-Pro5 | S-Pro6 | S-Pro8 | S-Pro10 |
| Pixel Pitch | 4.4mm | 5.7mm | 6.67mm | 8mm | 10mm |
| Pixel Configuration | SMD1921 | SMD2727 | SMD2727 | SMD2727 | SMD3535 |
| Pixel Density | 50625 pixels/m2 | 30625 pixels/m2 | 22500 pixels/m2 | 15625 pixels/m2 | 10000 pixels/m2 |
| Module Dimensions (W x H)(mm) | 480 x 320 | 480 x 320 | 480 x 320 | 320 x 320 | 480 x 320 |
| Panel Dimensions (mm) | 960 x960 x 90 | 960 x960 x 90 | 960 x960 x 90 | 960 x960 x 90 | 960 x960 x 90 |
| Modules Per Cabinet (W x H) | 2 x 3 | 2 x 3 | 2 x 3 | 3 x 3 | 2 x 3 |
| Module Resolution | 108 x 108 | 84 x 84 | 72 x 72 | 40 x 40 | 48 x 48 |
| Cabinet Resolution | 216 x 216 | 168 x 168 | 144 x 144 | 120 x 120 | 96 x 96 |
| Panel Material | Aluminum | Aluminum | Aluminum | Aluminum l | Aluminum |
| Weight per Cabinet | 28kgs | 28kgs | 28kgs | 28kgs | 28kgs |
| Colors | 281 trillion | 281 trillion | 281 trillion | 281 trillion | 281 trillion |
| Contrast Ratio | 5,000 : 1 | 5,000 : 1 | 5,000 : 1 | 5,000 : 1 | 5,000 : 1 |
| Average Power Consumption | 330 W /Sqm | 330 W /Sqm | 330 W /Sqm | 330 W /Sqm | 330 W /Sqm |
| Max Power Consumption | 950 W /Sqm | 950 W /Sqm | 950 W /Sqm | 950 W /Sqm | 950 W /Sqm |
| Brightness | >5,000 nits | >5,500 nits | >5,500 nits | >5,500 nits | >5,500 nits |
| Refresh Rate | >3,840Hz | >3,840Hz | >3,840Hz | >3,840Hz | >3,840Hz |
| Vertical Viewing Angle | 160° | 160° | 160° | 160° | 160° |
| Horizontal Viewing Angle | 160° | 160° | 160° | 160° | 160° |
| Expected Lifetime | 100,000 Hrs | 100,000 Hrs | 100,000 Hrs | 100,000 Hrs | 100,000 Hrs |
| Servicing | Front / Rear | Front / Rear | Front / Rear | Front / Rear | Front / Rear |
| IP Rating (Front/Rear) | IP66 / IP66 | IP66 / IP66 | IP66 / IP66 | IP66 / IP66 | IP66 / IP66 |

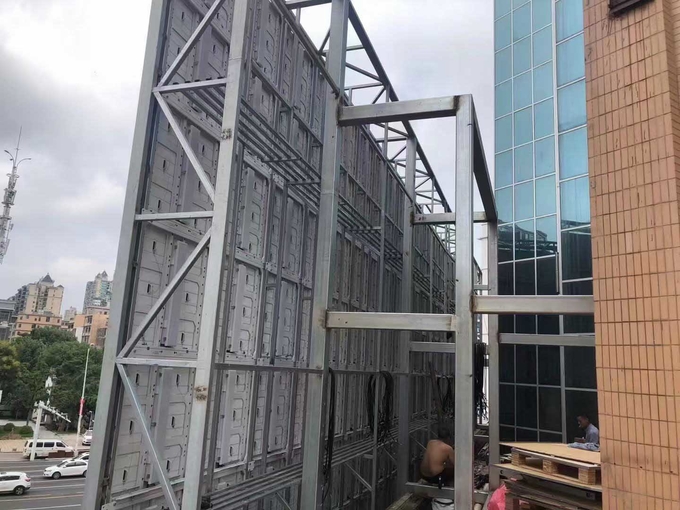

Pictures:
