Front Rear Service Outdoor LED Billboard Waterproof IP68 LED
Display Cabinet
Outdoor LED Billboard Light Weight LED Panel
Conwin LED S-A Series outdoor led advertising billboards include
P10mm, P8mm, P6.67mm, P5.33mm.
The box is light and stable. The aluminum configuration is lighter,
stronger and more stable, and the box weighs only 29 KG.It is
generally applicable to commercial centers, airport terminals,
large-scale summits, city landmarks, exhibition centers and other
outdoor places.
Quick Details:
- Front and Rear Waterproof IP68
- Anti-Flaming Performance with good heat radiation
- Aluminum cabinet Compares with Iron Cabinet Available for choose
Aluminum cabinet 29kg for 960x960mm size, Iron Cabinet 36kg for
960X960mm cabinet
- Common Cathode Aluminum Display choosing: Energy-Saving by 75%
- Zinc Alloy Edge Lock Design, Easily Front and Rear Maintenance
- Pixel pitch is P5.33mm P6.67mm, P8mm and P10mm for option.
- Cabinet size could be customized according to LED Module size
320X320mm
Regular size 960X960mm, other size 1280X960mm,
1280X1280mm,960X640mm,640X640mm...
- Brightness:>5500-6000cd/sqm
- Curve Installation: Yes, Concave and Convex Available
- LED Module Advantages
a. Aluminum bottom shell, good heat radiation
b. Waterproof front and rear IP68.
c. Support front and rear service.
LED Module protected by Aluminum Bottom case with better heat
radiation and stronger, Flame resistance.
Moisture-proof, water-proof, anti-corrosion, dust-proof
Signal and Power in one Cable(waterproof) with trianle screw fixing
structure design. safter, Faster and more stable.
- LED Cabinet advantage
Cabinet Could be designed all Aluminum with 28.5kg for 960X960mm
cabinet. also could be design steel cabinet 36kg.
LED Module, Power supply could be taken from front and rear.
Also could be designed for different size according to LED Module
size(320X320mm). Like 640X960mm, 640X640mm,1280X640mm....
Brilliant cabinet design making installation easy and with enough
installation space.
Fast Assemble with plugs, Marked “Power in/out” “Signal in/out” on
cabinet. Keep safe and save install time.
IP68 front and rear, Moisture-proof, water-proof, anti-corrosion,
dust-proof.
Parameters:
| Model | S-A5 | S-A6 | S-A8 | S-A10 |
| Pixel Pitch | 5.33mm | 6.67mm | 8mm | 10mm |
| Pixel Configuration | SMD1921 | SMD2727 | SMD2727 | SMD2727 |
| Pixel Density | 35156 pixels/m2 | 22500 pixels/m2 | 15625 pixels/m2 | 10000 pixels/m2 |
| Module Dimensions (W x H)(mm) | 320 x 320 | 320 x 320 | 320 x 320 | 320 x 320 |
| Panel Dimensions (mm) | 960 x960 x 100 | 960 x960 x 100 | 960 x960 x 100 | 960 x960 x 100 |
| Modules Per Cabinet (W x H) | 3 x 3 | 3 x 3 | 3 x 3 | 3 x 3 |
| Module Resolution | 60 x 60 | 48 x 48 | 40 x 40 | 32 x 32 |
| Cabinet Resolution | 180 x 180 | 144 x 144 | 120 x 120 | 96 x 96 |
| Panel Material | Aluminum | Aluminum | Aluminum | Aluminum |
| Weight per Cabinet | 29kgs | 29kgs | 29kgs | 29kgs |
| Colors | 281 trillion | 281 trillion | 281 trillion | 281 trillion |
| Contrast Ratio | 5,000 : 1 | 5,000 : 1 | 5,000 : 1 | 5,000 : 1 |
| Average Power Consumption | 330 W /Sqm | 330 W /Sqm | 330 W /Sqm | 330 W /Sqm |
| Max Power Consumption | 950 W /Sqm | 950 W /Sqm | 950 W /Sqm | 950 W /Sqm |
| Brightness | >5,500 nits | >5,500 nits | >5,500 nits | >5,500 nits |
| Refresh Rate | >3,840Hz | >3,840Hz | >3,840Hz | >3,840Hz |
| Vertical Viewing Angle | 160° | 160° | 160° | 160° |
| Horizontal Viewing Angle | 160° | 160° | 160° | 160° |
| Expected Lifetime | 100,000 Hrs | 100,000 Hrs | 100,000 Hrs | 100,000 Hrs |
| Servicing | Front / Rear | Front / Rear | Front / Rear | Front / Rear |
| IP Rating (Front/Rear) | IP68 / IP68 | IP68 / IP68 | IP68 / IP68 | IP68 / IP68 |

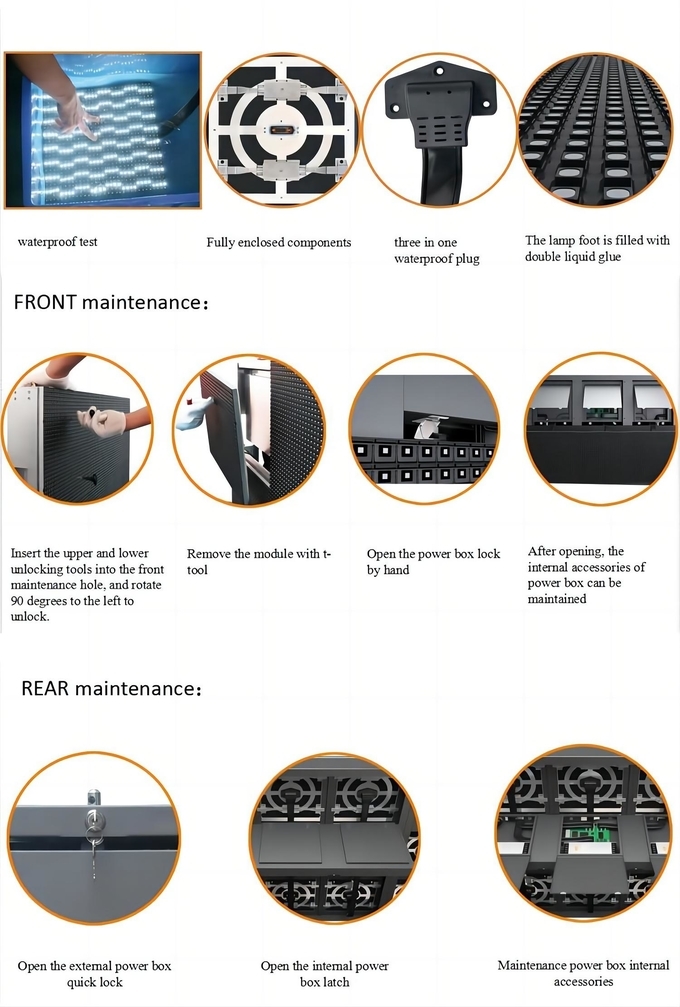

Pictures:
Our Services
1. 20 Years professional led display manufacturer
2. Short delivery time: 5-15 working days, adjustable according to
customer request
3. Wholesale price
4. OEM and ODM service
5. Customizable product upon request
