Die Casting Alumiunm Indoor LED Video Panel Screen Magnetic Front Service

Ask Lasest Price
Brand Name :	Conwin LED Display
Model Number :	Ei-M Series
Certification :	FCC, CE, ROHS
Price :	Negotiable
Payment Terms :	T/T, L/C
Supply Ability :	1,000sqm/month
Delivery Time :	15 days

Add to Cart

Product Details
Company Profile

Die Casting Alumiunm Indoor LED Video Panel Screen Magnetic Front Service

Die-casting Alumiunm Inoor LED Video Wall Directly on Wall With Front Service

Indoor Fixed LED Display,LED Screen

Indoor Ei-M Series is mainly used in enterprises, institutions, sports venues, the ticket hall, hotels, securities companies, schools, stage, public security, shopping centers and other fields.

Features and Advantages:

- Support HD 2K 4K Video Capability, bring you absolute visual experience

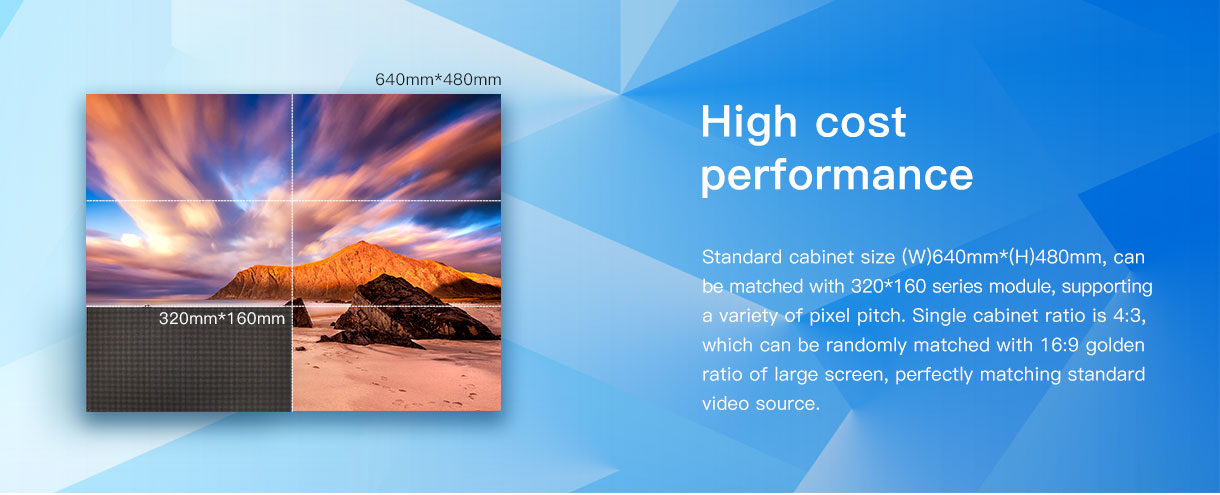

- Standard cabinet size 640X480mm with ratio 4:3

- Wireless Design,Simple and Fast installation

Cabinet connection with fast lock, convenient to install. Keep high flatness

- Pixel Pitch:P2mm P2.5mm, P3.076mm, P4mm and P5mm
- Brand SMD LEDs, high contrast and high reliability
- Greyscale: 14-16bits
- Service type: Magnetic front service

- Refresh Rate: 3840Hz

- Brightness: >600nits

- Wide View angle 160/160 H/V

- LED Module Size 320X160mm, support magnetic front service

- Die-casting Alminum cabinet, standard size 640X480mm with golden ration

- High Brightness, High Refresh rate, High Grey scale

Parameters:

Model	Ei-M2	Ei-M2.5	Ei-M3	Ei-M4
Pixel Pitch	2mm	2.5mm	3.0769mm	4mm
Pixel Configuration	SMD1515	SMD2121	SMD2121	SMD2121
Pixel Density	250000 pixels/m2	160000 pixels/m2	105625 pixels/m2	62500 pixels/m2
Module Dimensions (W x H)(mm)	320 x 160	320 x 160	320 x 160	320 x 160
Panel Dimensions (mm)	640 x 480	640 x 480	640 x 480	640 x 480
Modules Per Cabinet (W x H)	2 x 3	2 x 3	2 x 3	2 x 3
Module Resolution	160 x 80	128 x 64	104 x 52	80 x 40
Cabinet Resolution	320 x 240	256 x 288	208 x 156	160 x 120
Panel Material	Die-cast Aluminum	Die-cast Aluminum	Die-cast Aluminum	Die-cast Aluminum
Weight per Cabinet	8kgs	8kgs	8kgs	8kgs
Colors	281 trillion	281 trillion	281 trillion	281 trillion
Contrast Ratio	5,000 : 1	5,000 : 1	5,000 : 1	5,000 : 1
Average Power Consumption	210 W /Sqm	210 W /Sqm	210 W /Sqm	210 W /Sqm
Max Power Consumption	600 W /Sqm	600 W /Sqm	600 W /Sqm	600 W /Sqm
Brightness	>600 nits	>600 nits	>600 nits	>600 nits
Refresh Rate	>3,840Hz	>3,840Hz	>3,840Hz	>3,840Hz
Vertical Viewing Angle	160°	160°	160°	160°
Horizontal Viewing Angle	160°	160°	160°	160°
Expected Lifetime	100,000 Hrs	100,000 Hrs	100,000 Hrs	100,000 Hrs
Servicing	Front	Front	Front	Front
IP Rating (Front/Rear)	IP43 / IP21	IP43 / IP21	IP43 / IP21	IP43 / IP21

Pictures:

Our Services

1. 20 Years professional led display manufacturer

2. Short delivery time: 5-15 working days, adjustable according to customer request
3. Wholesale price

4. OEM and ODM service
5. Customizable product upon request
