SMD HD Indoor LED Video Wall Display With Die Cast Aluminum LED Cabinet 640x480mm

Ask Lasest Price
Brand Name :	Conwin LED Display
Model Number :	Ei-M Series
Certification :	FCC, CE, ROHS
Price :	Negotiable
Payment Terms :	T/T, L/C
Supply Ability :	1,000sqm/month
Delivery Time :	15days

Add to Cart

Product Details
Company Profile

SMD HD Indoor LED Video Wall Display With Die Cast Aluminum LED Cabinet 640x480mm

SMD HD Indoor LED Video Wall With Die Cast Aluminum LED Cabinet 640x480mm

Full Color Indoor Fixed LED Display LED Screen

Application Of Indoor Fixed LED Video Wall

Welcome using in hotel banquet hall, conference room, TV station, etc.

Quick Details

- Pixel Pitch: P2mm,P2.5mm, P3.076mm, P4mm
- Front Service support directly on wall

- Die-cast aluminum cabinet 640X480mm, can be installed to the wall directly

- Wireless Design,Simple and Fast installation

Cabinet connection with fast lock, convenient to install. Keep high flatness
- Brand SMD LEDs, high contrast and high reliability
- Greyscale: 14-16bits
- Service type: Magnetic front service

- Refresh Rate: 3840Hz

- Brightness: >600nits

- Wide View angle 160/160 H/V

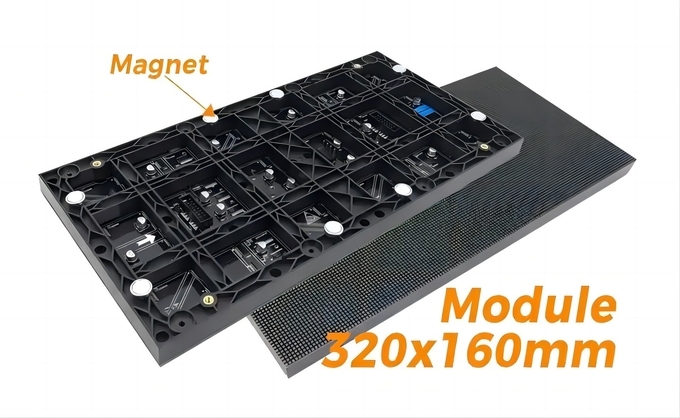

- LED Module Size 320X160mm, support magnetic front service

Die-casting Alumiunm Inoor LED Video Wall Directly on Wall With Front Service 0

indoor led video wall

P2.6 P2.9 500x1000mm Indoor Rental LED Display High Refresh Rate No Flicker 4

Parameters:

Model	Ei-M2	Ei-M2.5	Ei-M3	Ei-M4
Pixel Pitch	2mm	2.5mm	3.0769mm	4mm
Pixel Configuration	SMD1515	SMD2121	SMD2121	SMD2121
Pixel Density	250000 pixels/m2	160000 pixels/m2	105625 pixels/m2	62500 pixels/m2
Module Dimensions (W x H)(mm)	320 x 160	320 x 160	320 x 160	320 x 160
Panel Dimensions (mm)	640 x 480	640 x 480	640 x 480	640 x 480
Modules Per Cabinet (W x H)	2 x 3	2 x 3	2 x 3	2 x 3
Module Resolution	160 x 80	128 x 64	104 x 52	80 x 40
Cabinet Resolution	320 x 240	256 x 288	208 x 156	160 x 120
Panel Material	Die-cast Aluminum	Die-cast Aluminum	Die-cast Aluminum	Die-cast Aluminum
Weight per Cabinet	8kgs	8kgs	8kgs	8kgs
Colors	281 trillion	281 trillion	281 trillion	281 trillion
Contrast Ratio	5,000 : 1	5,000 : 1	5,000 : 1	5,000 : 1
Average Power Consumption	210 W /Sqm	210 W /Sqm	210 W /Sqm	210 W /Sqm
Max Power Consumption	600 W /Sqm	600 W /Sqm	600 W /Sqm	600 W /Sqm
Brightness	>600 nits	>600 nits	>600 nits	>600 nits
Refresh Rate	>3,840Hz	>3,840Hz	>3,840Hz	>3,840Hz
Vertical Viewing Angle	160°	160°	160°	160°
Horizontal Viewing Angle	160°	160°	160°	160°
Expected Lifetime	100,000 Hrs	100,000 Hrs	100,000 Hrs	100,000 Hrs
Servicing	Front	Front	Front	Front
IP Rating (Front/Rear)	IP43 / IP21	IP43 / IP21	IP43 / IP21	IP43 / IP21

Pictures:

indoor led display p2.5

Our Services

1. 20 Years professional led display manufacturer

2. Short delivery time: 5-15 working days, adjustable according to customer request
3. Wholesale price

4. OEM and ODM service
5. Customizable product upon request
