Football Stadium LED Display Screen Perimeter Advertising Digital
Banner
Outdoor Led Sport Perimeter Stadium LED Display Screen with High
Resolution3840Hz
Application:
Q-A series is most classic design of led stadium perimeter, it's
durable, reliable and easy to use, widely applied for all kinds of
football, basket ball stadium.
Features and Advantages:
- Easy maintenance. Module / cabinet change time <1 min, without
affecting running system – i.e. hot-swappable.
- Special designed mechanism for access gates at several locations
(optional), with no signal interruption.
- Mechanical system to align the cabinets, and minimise gaps
between cabinets..
- IP65 front and IP54 rear
- Soft rubber louvers front and cushion top to protect cabinets
from impact and players from injury
- Wooden box or Flight case designed for efficient storage and
shipping (for transportable systems).
- Content Control / Data Interfacing
Optional: Individual control of brightness, gamma, colours of every
single pixel/ module/cabinet.
Default pictures (auto-switch feature) installed and enabled (set
to static shared-rotation) in case of total connection loss with
server.
System viewed and operated as one single screen by control
software.
Back-up data system for non-stop displaying.
- Angle Adjustable with best viewing performance
- High refresh rate, no strip for camera shooting and live show
broadcasting.
- Wide viewing angle 160°/160°
- Pixle Pitch P2mm,P2.5mm,P3mm,P4mm,P5mm,P6.67mm,P8mm,P10mm. With
LED Module size 320X160mm rear service

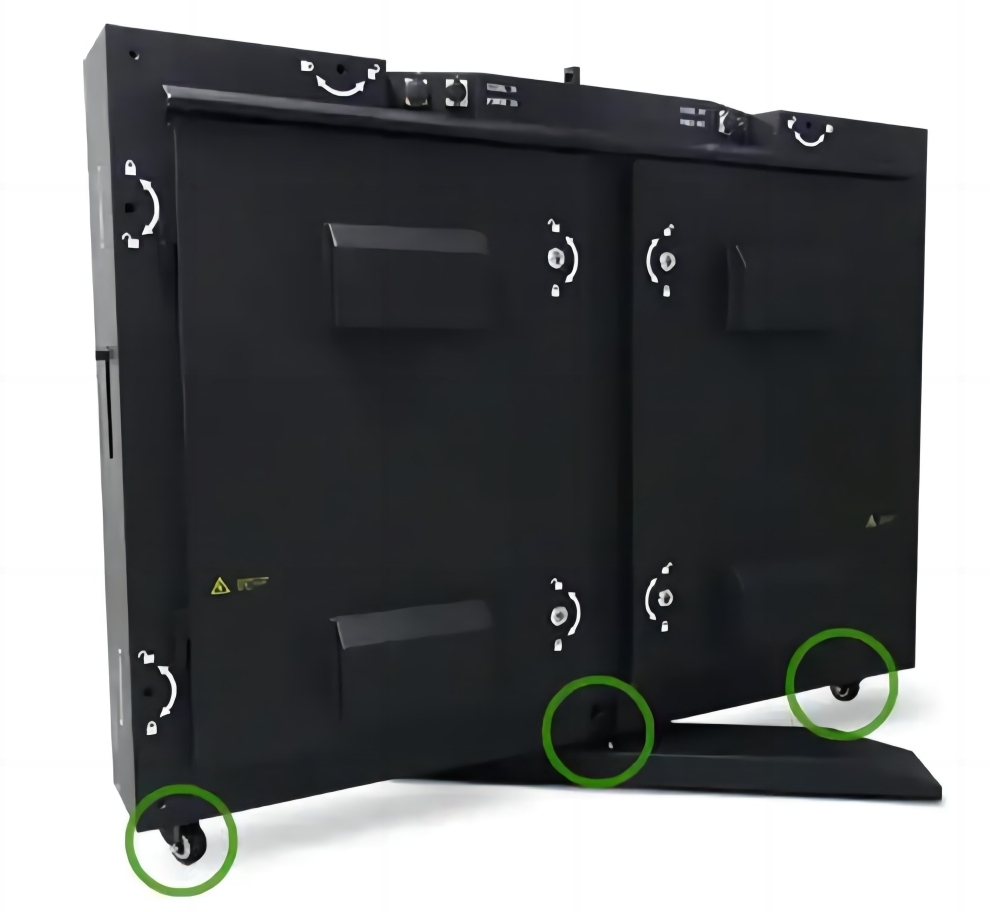

- Rotating base and wheers could be added
- LED Module surface with soft mask for protecting players from
injuiry
- IP65 waterproof front
- Different size could be choosed.
960X960mm, 1280X960mm, 1600X960mm, 1920X960mm
Parameters:
| Model | Q-A2.5 | Q-A3 | Q-A4 | Q-A5 | Q-A6 | Q-A8 | Q-A10 |
| Pixel Pitch | 2.5mm | 3.0769mm | 4mm | 5mm | 6.67mm | 8mm | 10mm |
| Pixel Configuration | SMD1415 | SMD1921 | SMD1921 | SMD1921 | SMD2727 | SMD3535 | SMD3535 |
| Pixel Density | 160000 pixels/m2 | 105625 pixels/m2 | 62500 pixels/m2 | 40000 pixels/m2 | 22500 pixels/m2 | 15625 pixels/m2 | 10000 pixels/m2 |
| Module Dimensions (W x H)(mm) | 320 x 160 | 320 x 160 | 320 x 160 | 320 x 160 | 320 x 160 | 320 x 160 | 320 x 160 |
| Module Resolution | 128 x 64 | 104 x 52 | 80 x 40 | 64 x 32 | 48 x 24 | 40 x 20 | 32 x 16 |
| Cabinet Resolution | 768 x 384 | 624 x 312 | 480 x 240 | 384 x 192 | 288 x 144 | 240 x 120 | 192 x 96 |
| Panel Material | Cold steel | Cold steel | Cold steel | Cold steel | Cold steel | Cold steel | Cold steel |
| Colours | 281 trillion | 281 trillion | 281 trillion | 281 trillion | 281 trillion | 281 trillion | 281 trillion |
| Contrast Ratio | 5,000 : 1 | 5,000 : 1 | 5,000 : 1 | 5,000 : 1 | 5,000 : 1 | 5,000 : 1 | 5,000 : 1 |
| Average Power Consumption | 330 W /Sqm | 330 W /Sqm | 330 W /Sqm | 330 W /Sqm | 330 W /Sqm | 330 W /Sqm | 330 W /Sqm |
| Max Power Consumption | 950 W /Sqm | 950 W /Sqm | 950 W /Sqm | 950 W /Sqm | 950 W /Sqm | 950 W /Sqm | 950 W /Sqm |
| Brightness | >6,000 nits | >6,000 nits | >6,000 nits | >6,000 nits | >6,000 nits | >6,000 nits | >6,000 nits |
| Refresh Rate | >3,840Hz | >3,840Hz | >3,840Hz | >3,840Hz | >3,840Hz | >3,840Hz | >3,840Hz |
| Vertical Viewing Angle | 160° | 160° | 160° | 160° | 160° | 160° | 160° |
| Horizontal Viewing Angle | 160° | 160° | 160° | 160° | 160° | 160° | 160° |
| Expected Lifetime | 100,000 Hrs | 100,000 Hrs | 100,000 Hrs | 100,000 Hrs | 100,000 Hrs | 100,000 Hrs | 100,000 Hrs |
| Servicing | Rear | Rear | Rear | Rear | Rear | Rear | Rear |
| IP Rating (Front/Rear) | IP65 / IP54 | IP65 / IP54 | IP65 / IP54 | IP65 / IP54 | IP65 / IP54 | IP65 / IP54 | IP65 / IP54 |
Pictures
Our Services
1. 20 Years professional led display manufacturer
2. Short delivery time: 5-15 working days, adjustable according to
customer request
3. Wholesale price
4. OEM and ODM service
5. Customizable product upon request
6. 24/7 hrs online service
