Outdoor Transparent LED Display Screen High Brightness 500X1000mm

Conwin Optoelectronic Co., Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now
    Buy cheap Outdoor Transparent LED Display Screen High Brightness 500X1000mm from wholesalers

    Buy cheap Outdoor Transparent LED Display Screen High Brightness 500X1000mm from wholesalers
    • Buy cheap Outdoor Transparent LED Display Screen High Brightness 500X1000mm from wholesalers
    • Buy cheap Outdoor Transparent LED Display Screen High Brightness 500X1000mm from wholesalers
    • Buy cheap Outdoor Transparent LED Display Screen High Brightness 500X1000mm from wholesalers
    • Buy cheap Outdoor Transparent LED Display Screen High Brightness 500X1000mm from wholesalers

    Outdoor Transparent LED Display Screen High Brightness 500X1000mm

    Ask Lasest Price
    Brand Name : Conwin LED Display
    Model Number : T-A Series
    Certification : FCC, CE, ROHS
    Price : Negotiable
    Payment Terms : T/T, L/C
    Supply Ability : 1,000 sqm per month
    Delivery Time : 15 days
    • Product Details
    • Company Profile

    Outdoor Transparent LED Display Screen High Brightness 500X1000mm

    Outdoor High Brightness 500X1000mm Transparent LED Display LED Screen

    Fixed outdoor transparent LED display LED screen

    Features and Details:

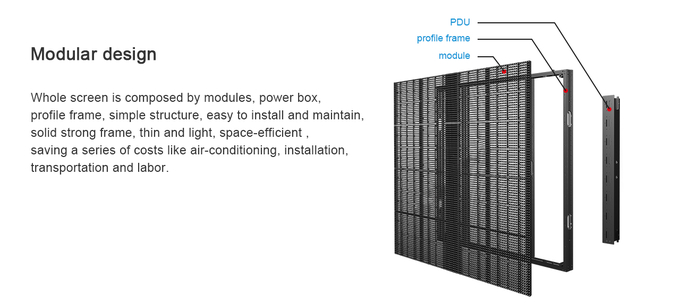

    - Super Slim and Light Weight, cabinet thickness 82mm with 8kg/cabinet

    - Aluminum cabinet with size 500X1000mm, save the transportation, installation cost(labor, steel structure)

    Also reduce the load-bearing requirements of buildings

    - Support front or rear service, not restricted by the installation conditions

    - High transparency rate, meet most glass buildings requirement.

    - High temperature resistant materials and up to fireproof V0

    - Flxible design, additional options for lightproof mask & background, it's up to you decide lightproof ,windproof or not.

    Outdoor Waterproof Fixed Transparent LED Display Screen 1x1m LED Panel 0

    Outdoor Waterproof Fixed Transparent LED Display Screen 1x1m LED Panel 3

    - Waterproof IP65

    Outdoor Waterproof Fixed Transparent LED Display Screen 1x1m LED Panel 4

    - Size 1000X1000mm and 500X1000mm could be choosed

    Outdoor Waterproof Fixed Transparent LED Display Screen 1x1m LED Panel 5Outdoor Waterproof Fixed Transparent LED Display Screen 1x1m LED Panel 6

    - Support "Add Mask" or "Light Barries"

    Adding Mask or Light Barries to achieve better contrast ratio compare with the pure transparent LED Screen.

    So the transpate would be reduced.

    Outdoor Waterproof Fixed Transparent LED Display Screen 1x1m LED Panel 7

    Outdoor Waterproof Fixed Transparent LED Display Screen 1x1m LED Panel 8Outdoor Waterproof Fixed Transparent LED Display Screen 1x1m LED Panel 9

    Parameters

    ModelT-A3.9-7.8T-A7.8-7.8T-A5.2-10.4T-A10.4-10.4T-A15.6-15.6
    Pixel PitchW3.91mm-H7.82mm7.82mm-7.82mmW5.21mm-H10.42mm10.42mm-10.42mm15.6mm-15.6mm
    Transparency Rate45%-50%50%55%58%65%
    Pixel ConfigurationSMD1921SMD1921SMD2727SMD2727SMD2727
    Pixel Density32,768 pixels/m216,384pixels/m218,432 pixels/m29,216 pixels/m24,096 pixels/m2
    Panel Dimensions (mm)500x1000 or 1000x1000500x1000 or 1000x1000500x1000 or 1000x1000500x1000 or 1000x1000500x1000 or 1000x1000
    Cabinet Resolution256 x 128128 x 128192 x 9696 x 9664 x 64
    Panel MaterialAluminumAluminumAluminumAluminumAluminum
    Weight per Cabinet8kg8kg8kg8kg8kg
    Colors281 trillion281 trillion281 trillion281 trillion281 trillion
    Average Power Consumption260 W /Sqm260 W /Sqm260 W /Sqm260 W /Sqm260 W /Sqm
    Max Power Consumption800 W /Sqm800 W /Sqm800 W /Sqm800 W /Sqm800 W /Sqm
    Brightness>5,000 nits>5,000 nits>5,000 nits>5,000 nits>5,000 nits
    Refresh Rate>3,840Hz>3,840Hz>3,840 Hz>3,840 Hz>3,840 Hz
    ServicingFront/RearFront/RearFront/RearFront/RearFront/Rear
    IP RatingIP65IP65IP65IP65IP65
    Operating Temp/Humidity-20ºC - 50ºC / 10% - 90%-20ºC - 50ºC / 10% - 90%-20ºC - 50ºC / 10% - 90%-20ºC - 50ºC / 10% - 90%-20ºC - 50ºC / 10% - 90%

    Pictures:

    Our Services

    1. 20 Years professional led display manufacturer

    2. Short delivery time: 5-15 working days, adjustable according to customer request
    3. Wholesale price

    4. OEM and ODM service
    5. Customizable product upon request

    6. 24/7 hrs online service
