Glass Mesh Transparent LED Display Screen For Shopping Malls Multipurpose

Ask Lasest Price
Brand Name :	Conwin LED Display
Model Number :	T-G Series
Certification :	FCC, CE, ROHS
Payment Terms :	T/T, L/C
Delivery Time :	15days

Add to Cart

Product Details
Company Profile

Glass Mesh Transparent LED Display Screen For Shopping Malls Multipurpose

Film Transparent LED Display Screen Glass LED Screen Glass LED Mesh

Film Transparent LED Screen, Glass LED Display

Features and Details

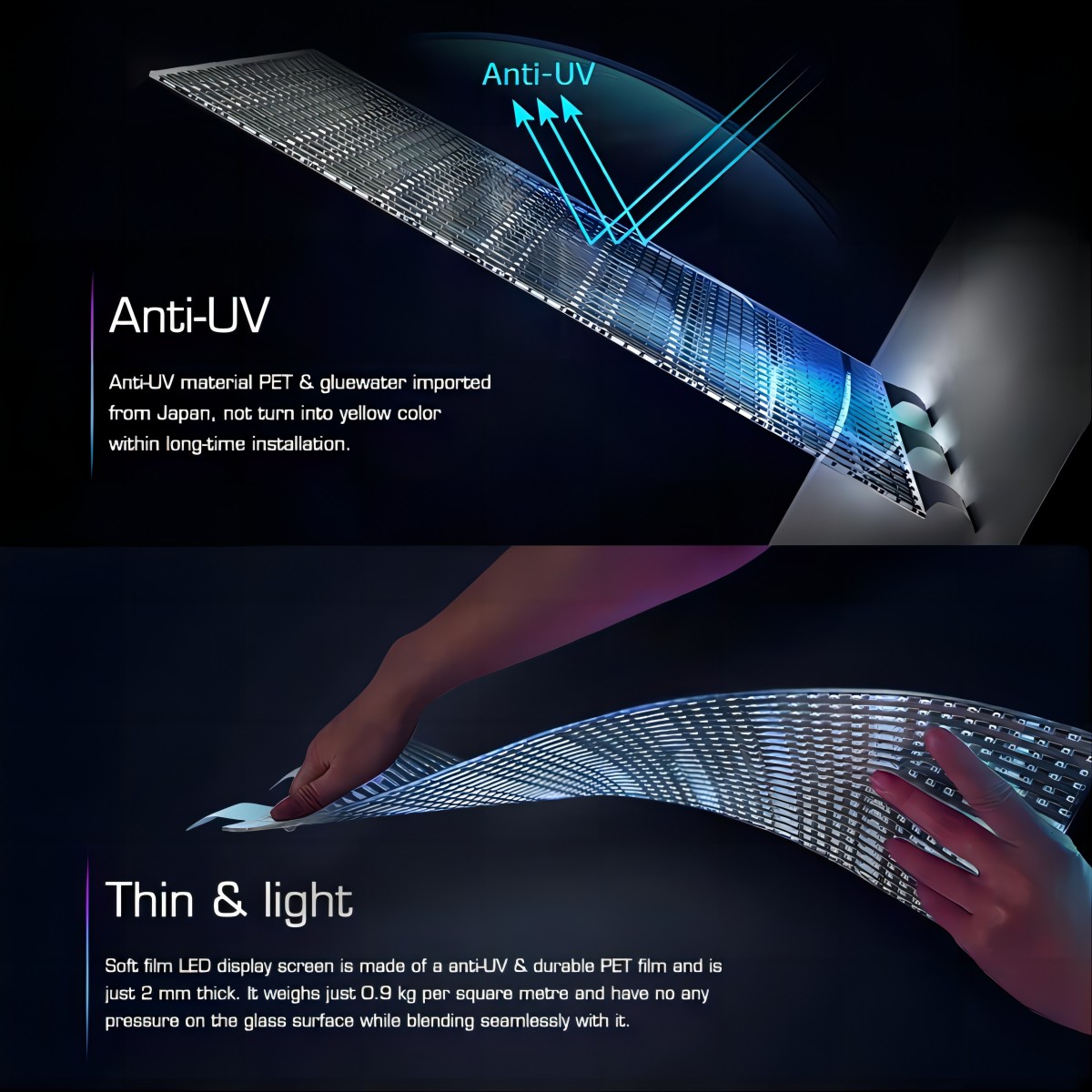

- High Transparency
With transmittance of 85%. When playing the video,it does not affect theindoorlighting.
- Lightweight and easy to install
The thickness of the the display is 2mm. easy for install and maintain
- Application
Suitable for shopping malls, theaters, commercial streetshotels, municipal public buildings, and other places.

- It can be freely cut and seamless stitching,and screen sizes and shapes can be flexibly matched with a variety of mounting area carriers , such as triangular and ovals ...

- Transparent LED film supports curvature up to 1100R and can be rolled into a cylinder.

Parameters:

Model	T-G4	T-G4-8	T-G6	T-G8	T-G10	T-G16	T-G16-32	T-G32
Pixel Pitch	4-4mm	4-8mm	6-6mm	8-8mm	10-10mm	16-16mm	16-32mm	32-32mm
Transparency Rate	>80%	>80%	>80%	>80%	>85%	>85%	>90%	>90%
Module Size (mm)	800X240	1000X240	1000X240	1000X240	1000X240	1000X240	1000X240	1000X240
Module Resolution (dots)	200X60	250X30	166X40	125X30	100X24	62X15	62X7	50X4
Pixel Configuration	SMD1010	SMD2121
Pixel Density	62,500 pixels/m2	31,250 pixels/m2	27,556 pixels/m2	15,625 pixels/m2	10,000 pixels/m2	3,844 pixels/m2	1,922 pixels/m2	961 pixels/m2
Brightness	>3000 cd/sqm	>3000 cd/sqm	>3000 cd/sqm	>3500 cd/sqm	>3500 cd/sqm	>3500 cd/sqm	>2500cd /sqm	>1500cd /sqm
Weight	3.5kg/sqm
Colors	281 trillion	281 trillion	281 trillion	281 trillion	281 trillion	281 trillion	281 trillion	281 trillion
Average Power Consumption	200 W /Sqm	200 W /Sqm	200 W /Sqm	200 W /Sqm	200 W /Sqm	200 W /Sqm	200 W /Sqm	200 W /Sqm
Max Power Consumption	600 W /Sqm	600 W /Sqm	600 W /Sqm	600 W /Sqm	600 W /Sqm	600 W /Sqm	600 W /Sqm	600 W /Sqm
Refresh Rate	>3,840Hz	>3,840Hz	>3,840 Hz	>3,840 Hz	>3,840 Hz	>3,840 Hz	>3,840 Hz	>3,840 Hz
IP Rating	IP30	IP30	IP30	IP30	IP30	IP30	IP30	IP30
Operating Temp/Humidity	-20ºC - 50ºC / 10% - 90%

More Different size choosing

Pictures

Our Services

1. 20 Years professional led display manufacturer

2. Short delivery time: 5-15 working days, adjustable according to customer request
3. Wholesale price

4. OEM and ODM service
5. Customizable product upon request

6. 24/7 hrs online service
