Outdoor Indoor LED Mesh Screen Transparent Outdoor For Glass Window
Glass Window Outdoor P3.81-7.82mm Frameless LED Mesh Display 3840
High Refresh Rate
Description Of Outdoor Advertising LED Mesh Billboard
1. High permeability . Conventional screens are opaque, just like a
wall, but LED transparent screens have a transparency rate of up to
65% -90, do not shade, look like nothing, and do not affect the
beauty of the building.
2. Die casting aluminum box body and Lightweight design. LED
transparent screen is extremely lightweight design, the weight of a
single square is as light as 12 KG, and one hand can lift it at
will, which is nothing compared with the conventional display
screen of 30 KG/㎡.
3. Simple installation and Easy maintenance. Due to the light
weight, the dependence of the LED transparent screen on the steel
structure is greatly reduced, and when the LED transparent screen
is damaged, only the light bar module needs to be replaced, and the
LED transparent screen can be operated indoors, which is simple and
fast, and the conventional LED display screen can not catch up with
these two points.
4. Nergy conservation and environmental protection . The LED
transparent screen has good heat dissipation performance and does
not need an independent air conditioning system. However, this heat
dissipation system is indispensable to the conventional screen.
After testing, the LED transparent screen saves more than 30%
energy than the conventional screen and is more environmentally
friendly.
Features and Advantages:
- Aluminum cabinet, slim, strong and seamless assembling.
- High transparent rate, the highest can reach 71%.
- Slim cabinet, space saving; light weight, no need to change
architectural structure,adapt to different installation place.
- Environmental Projection: no need air-con; Winds can go through
the screen, low wind drag.
- Easy maintenance: fast replaced module, support front and rear
service.
- Stacking, hanging and fixed installation are supported.
- The lamp & PCB are fully sealed by silicon, anti-dust and
anti-collision, IP65, adapt to harsh weather.
- High temperature resistant materials and up to fireproof V0
- Lightweight 16kg/sqm, reduce the load-bearing of the building
Parameters
| Model | T-A3.9-7.8 | T-A7.8-7.8 | T-A5.2-10.4 | T-A10.4-10.4 | T-A15.6-15.6 |
| Pixel Pitch | W3.91mm-H7.82mm | 7.82mm-7.82mm | W5.21mm-H10.42mm | 10.42mm-10.42mm | 15.6mm-15.6mm |
| Transparency Rate | 45%-50% | 50% | 55% | 58% | 65% |
| Pixel Configuration | SMD1921 | SMD1921 | SMD2727 | SMD2727 | SMD2727 |
| Pixel Density | 32,768 pixels/m2 | 16,384pixels/m2 | 18,432 pixels/m2 | 9,216 pixels/m2 | 4,096 pixels/m2 |

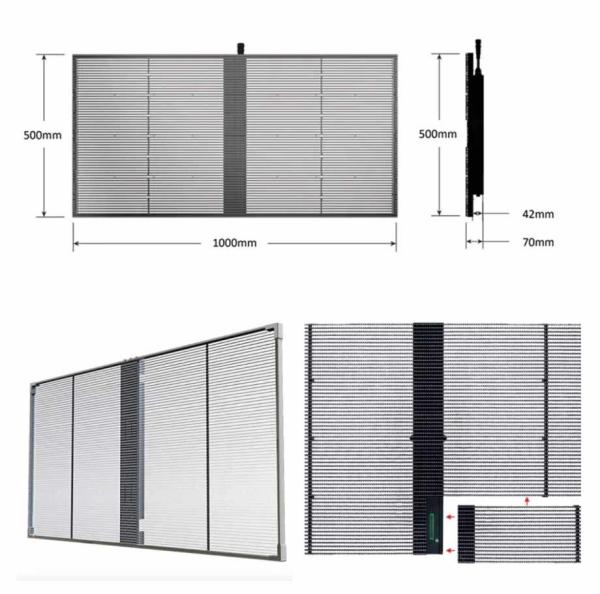

| Panel Dimensions (mm) | 500x1000 or 1000x1000 | 500x1000 or 1000x1000 | 500x1000 or 1000x1000 | 500x1000 or 1000x1000 | 500x1000 or 1000x1000 |
| Cabinet Resolution | 256 x 128 | 128 x 128 | 192 x 96 | 96 x 96 | 64 x 64 |
| Panel Material | Aluminum | Aluminum | Aluminum | Aluminum | Aluminum |
| Weight per Cabinet | 16kg | 16kg | 16kg | 16kg | 16kg |
| Colors | 281 trillion | 281 trillion | 281 trillion | 281 trillion | 281 trillion |
| Average Power Consumption | 260 W /Sqm | 260 W /Sqm | 260 W /Sqm | 260 W /Sqm | 260 W /Sqm |
| Max Power Consumption | 800 W /Sqm | 800 W /Sqm | 800 W /Sqm | 800 W /Sqm | 800 W /Sqm |
| Brightness | >5,000 nits | >5,000 nits | >5,000 nits | >5,000 nits | >5,000 nits |
| Refresh Rate | >3,840Hz | >3,840Hz | >3,840 Hz | >3,840 Hz | >3,840 Hz |
| Servicing | Front/Rear | Front/Rear | Front/Rear | Front/Rear | Front/Rear |
| IP Rating | IP65 | IP65 | IP65 | IP65 | IP65 |
| Operating Temp/Humidity | -20ºC - 50ºC / 10% - 90% | -20ºC - 50ºC / 10% - 90% | -20ºC - 50ºC / 10% - 90% | -20ºC - 50ºC / 10% - 90% | -20ºC - 50ºC / 10% - 90% |
Pictures:
Our Services
1. 20 Years professional led display manufacturer
2. Short delivery time: 5-15 working days, adjustable according to
customer request
3. Wholesale price
4. OEM and ODM service
5. Customizable product upon request
