Outdoor Flexible LED Mesh Curtain High Brightness High Refresh Rate
Outdoor P100mm LED Mesh Screen Durable for Outdoor Facade and Glass
Building
Application Of Outdoor IP66 Waterproof LED Mesh Screen
Features of LED Mesh Screen
1. In order to ensure that the outdoor reality projection image has
sufficient brightness, The front of the module is sealed with
silicone potting for waterproofing. The color of the silicone may
be required for safety engineering, and the color card is matched
to the color card to make the color coordinate perfectly with the
exterior color of the building.
2. Any combination of various shapes Easy to install without
affecting the appearance of the original object structure.
3. Multiple Maipu Radiant LED modules can form a full color display
wall.
4. Can be used as a linear light sources Instead of a digital tube.
The light efficiency of the connected point light source is more
different. Multiple Maipu radiation LED modules can form a
full-color display wall
5. The outlet of the module is a silicone wire with the best high
and low temperature performance. With professional waterproof
joints, professional design and fully sealed waterproof structure,
protection grade IP67, it can adapt to various indoor and outdoor
temperature environments.
6. The display unit is strip-shaped. The assembly kit is made of
professional aluminum profiles and can be assembled horizontally,
vertically and diagonally, and the display unit is connected by a
waterproof joint.
7. The requirements for display are not very high. For use in low
brightness environments, high transparency is required, display
pixels have a large dot pitch, and a large decorative display has a
certain decorative effect.
Quick detail Of Outdoor Advertising LED Mesh Screen
1, Pixel Pitch: P31.25mm,P50mm, P62.5mm, P100mm
2, Epistar SMD LED, high brightness and durable for outdoor use
3, Greyscale: 16bits
4, Cabinet size: 1000x1000mm Flexible LED Mesh
5, Refresh Rate: 9000Hz
6, Ingress Rate: IP66 Outdoor Standard Connectors
7,Quality Certificate:CE, RoHS,FCC, ETL
8,Brightness:>1200-2560cd/sqm
9, Curve Installation: Foldable and flexible for any kind of curve
installation
Specification Of Outdoor Advertising LED Mesh Screen
| Model | P50mm | P62.5mm | P100 |
| LEDs | 1R1G1B | 1R1G1B | 1R1G1B |
| LED type | Epistar SMD | Epistar SMD | Epistar SMD |
| Pixel pitch | 50mm | 62.5mm | 100mm |
| Unit size | W1000×H1000mm | W1000×H1000mm | W1000×H1000mm |
| Unit resolution | 20×20 dots | 16×16 dots | 10×10 dots |
| Resolution | 400dots/㎡ | 256dots/㎡ | 100dots/㎡ |
| Unit direction | Vertical Horizontal | Vertical Horizontal | Vertical Horizontal |
| Brightness | ≥1200nit | ≥2560nit | ≥2560nit |
| Weight | 4.6KG/㎡ | 3.2KG/㎡ | 1.5KG/㎡ |
| Max consumption | 480W/㎡ | 300W/㎡ | 280W/㎡ |
| Adv consumption | 160W/㎡ | 130W/㎡ | 125W/㎡ |
| Viewing angle | H120°/V120° | H120°/V120° | H120°/V120° |
| Protection level | IP66 | IP66 | IP66 |
| Wind dissipaion | Level 12 | Level 12 | Level 12 |
| Power supply | Power supply with PFC | Power supply with PFC | Power supply with PFC |
| Installation | Fast install | Fast install | Fast install |
| Fire safety | 10S/unit | 10S/unit | 10S/unit |
| Fire resistance | Full VO grade | Full VO grade | Full VO grade |
| Service | Front,Back | Front,Back | Front,Back |
| Control mode | steady state | steady state | steady state |
| Color temperature | 3200-9300K | 3200-9300K | 3200-9300K |
| Working temperature | -40℃ to 70℃ | -40℃ to 70℃ | -40℃ to 70℃ |
| Storage temperature | -55℃ to 120℃ | -55℃ to 120℃ | -55℃ to 120℃ |
| Life time | ≥100,000 hours | ≥100,000 hours | ≥100,000 hours |
| Input voltage | AC110-220V | AC110-220V | AC110-220V |
| Grey grade | 16bit | 16bit | 16bit |

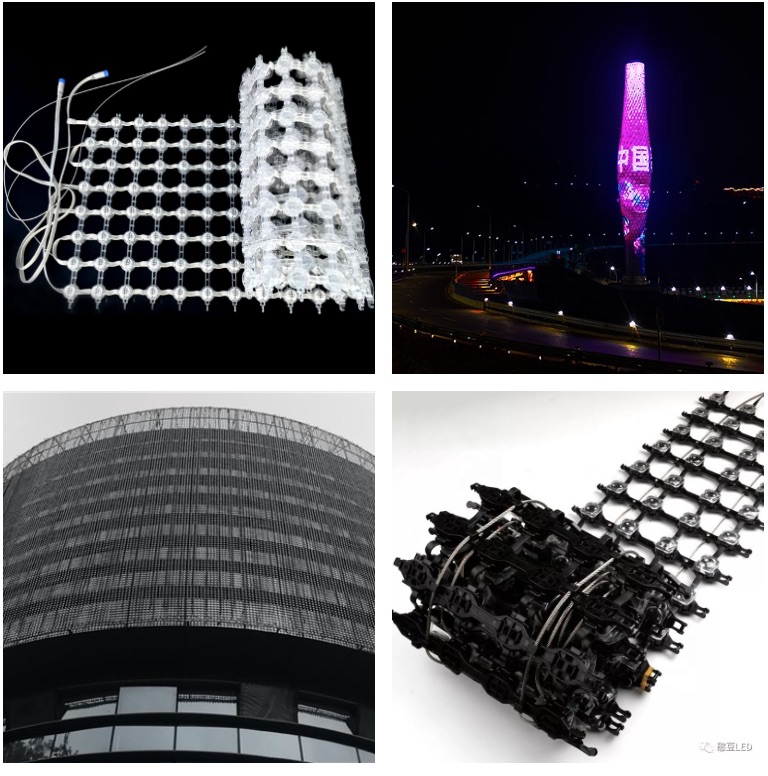

Pictures
Our Services
1. 20 Years professional led display manufacturer
2. Short delivery time: 5-15 working days, adjustable according to
customer request
3. Wholesale price
4. OEM and ODM service
5. Customizable product upon request
