HD Indoor Rental LED Display 500X1000mm LED Panel Easy Assemble and
Carry
Application Of Indoor Rental LED Screen
The LED stage rental screen can divide a picture into a plurality
of video pictures for broadcasting, the display screen can be used
independently, combined or combined at will to broadcast the
related large background, and the LED screen can be displayed in
different areas according to the performance requirements. Can
realize the superposition of pictures and texts, the playing of
background pictures by a video signal processor or the display of
synthesized same pictures, the close-up playing of characters, the
rolling playing or insertion playing of characters, and the
horizontal pushing of video picture screens, It can also be lifted
up and down to form text and personalized video pictures, brighten
and beautify the stage background and stage ground, meet other
requirements of the owner through software design and system
control, and has the advantages of frame structure design,
convenient disassembly and assembly, reliability, easy maintenance
and application in large entertainment venues and large activities.
Quick detail Of Indoor Rental LED Screen
- Pixel Pitch: 2.604mm. 2.976mm
- Quality and High Contrast SMD LEDs, Wide viewing angle: 160°/
160°.
- Greyscale: 14-16bits with NOVA
- Cabinet size: 500x500mm Die Cast Aluminum
- Recommended MIn Viewing Distance: 2-3m.
- Cabinet Material: Die Cast Aluminum Cabinet, 7.5kg Weight
- Refresh Rate: 3840Hz
- Curve Installation: Yes, Concave and Convex Available
- Corner Protector: Available
- Support 500X500mm and 500X1000mm splicing together with different
shape
- From -2.5 °(convex) to +7.5°(concave), wide range of curving,
creative screen shapes and sizes.
Whether the audience stands in the centre, right, or left, you can
see the similar Display from all angles.
Parameters:
| Model | Di-HH2.6 | Di-HH2.9 | Di-HH3.9 | Di-HH4.8 |
| Pixel Pitch | 2.604mm | 2.976mm | 3.91mm | 4.81mm |
| Pixel Configuration | SMD1415 | SMD1415 | SMD1921 | SMD1921 |
| Pixel Density | 147,456 pixels/m2 | 112,896 pixels/m2 | 65,536 pixels/m2 | 43,264 pixels/m2 |
| Module Dimensions(W x H) (mm) | 250 x 250 | 250 x 250 | 250 x 250 | 250 x 250 |
| Panel Dimensions (mm) | 500 x 1000 x 80 | 500 x 1000 x 80 | 500 x 1000 x 80 | 500 x 1000 x 80 |
| Modules Per Cabinet (W x H) | 2 x 4 | 2 x 4 | 2 x 4 | 2 x 4 |
| Module Resolution | 96 x 96 | 84 x 84 | 64 x 64 | 52 x 52 |
| Cabinet Resolution | 192 x 384 | 168 x 336 | 128 x 256 | 104 x 208 |
| Panel Material | Die Cast Aluminum | Die Cast Aluminum | Die Cast Aluminum | Die Cast Aluminum |
| Weight per Cabinet | 14kg | 14kg | 14kg | 14kg |
| Colours | 281 trillion | 281 trillion | 281 trillion | 281 trillion |
| Contrast Ratio | 5,000 : 1 | 5,000 : 1 | 5,000 : 1 | 5,000 : 1 |
| Average Power Consumption | 200 W /Sqm | 200 W /Sqm | 200 W /Sqm | 200 W /Sqm |
| Max Power Consumption | 600 W /Sqm | 600 W /Sqm | 600 W /Sqm | 600 W /Sqm |
| Brightness | >1,000 nits | >1,000 nits | >1,000 nits | >1,000 nits |
| Refresh Rate | >3,840Hz | >3,840Hz | >3,840 Hz | >3,840 Hz |
| Vertical Viewing Angle | 160° | 160° | 160° | 160° |
| Horizontal Viewing Angle | 160° | 160° | 160° | 160° |
| Expected Lifetime | 100,000 Hrs | 100,000 Hrs | 100,000 Hrs | 100,000 Hrs |
| Servicing | Front/Rear | Front/Rear | Front/Rear | Front/Rear |
| IP Rating (Front/Rear) | IP 65 | IP 65 | IP 65 | IP 65 |
| Operating Temp/Humidity | -20ºC - 50ºC / 10% - 90% | -20ºC - 50ºC / 10% - 90% | -20ºC - 50ºC / 10% - 90% | -20ºC - 50ºC / 10% - 90% |
| Storage Temp/Humidity | -20ºC - 50ºC / 10% - 90% | -20ºC - 50ºC / 10% - 90% | -20ºC - 50ºC / 10% - 90% | -20ºC - 50ºC / 10% - 90% |

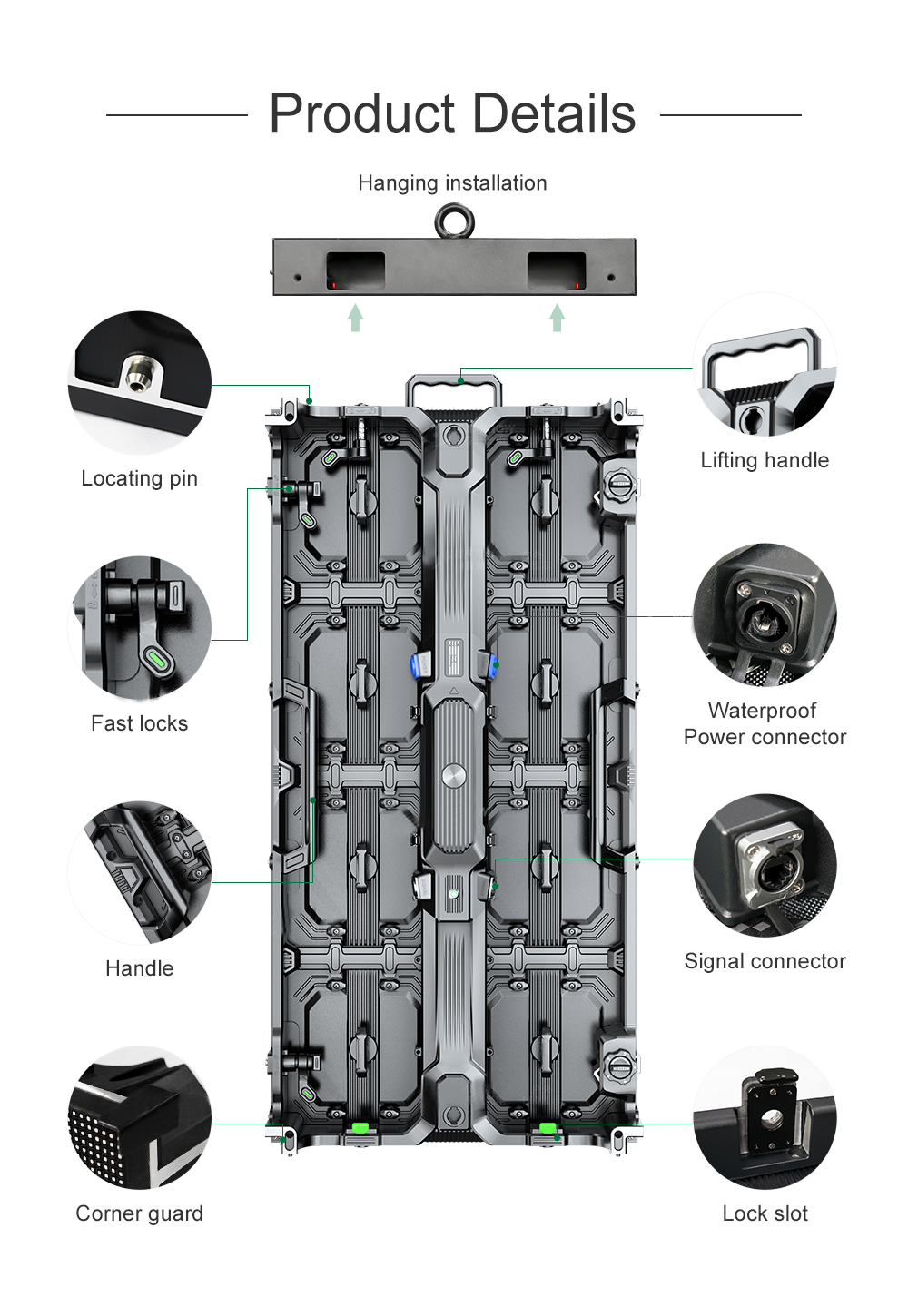

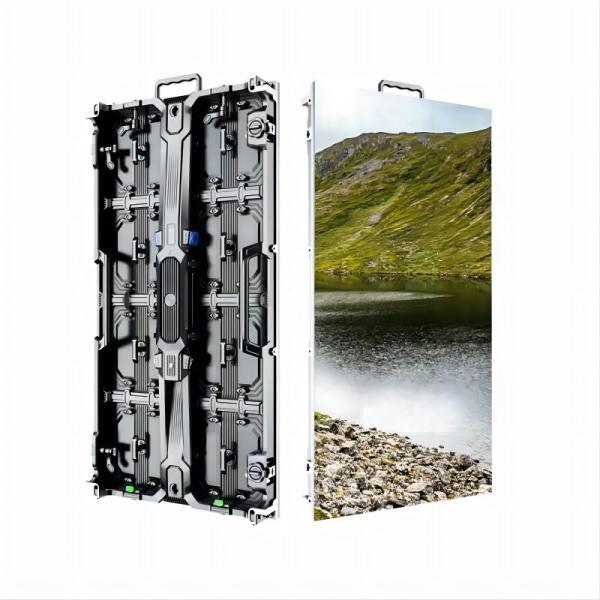

Pictures:
