Indoor Rental LED Display Panel with Removable Power Box 3840Hz
Refresh Rate
Indoor 500x500mm Stage Rental LED Display 3840Hz Refresh Rate
Quick Details
- Pixel Pitch: P2.604mm, P2.976mm, P3.91mm,P4.81mm
- Quality and High Contrast SMD LEDs, Wide viewing angle: 160°/
160°.
- Greyscale: 14-16bits with NOVA Star
- Cabinet Material and weight: Die Cast Aluminum Cabinet, 7.5kg
Weight
- Refresh Rate: 3840Hz
- Ingress Rate: IP43 Indoor
- Brightness:>1000cd/sqm
- Curve Installation: Yes, Concave and Convex Available via Rotary
Lock
- Corner Protector: Available

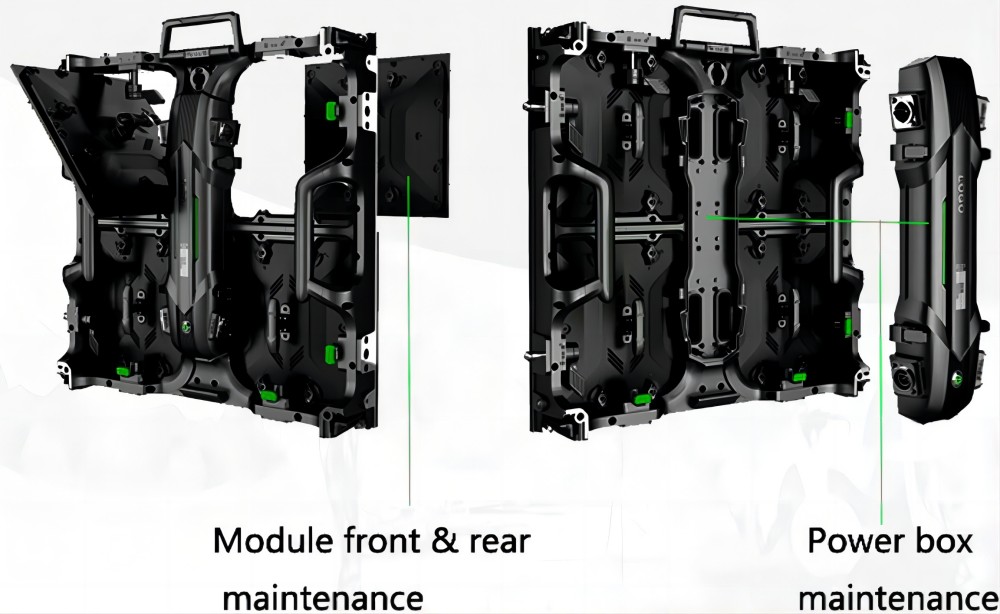

- Front and Rear Maintenance via Magnets
- Independent Power Box
- Support Front and Rear Service
Independent card/power box for fast replacement.
- Fast assemble with locks, cabinet support assemble side curve
locks with LED screen Inner/Outer curve design.
Also support cabinet edge 45 degree for screen right angle with
seamless.
Parameters:
| Model | Di-LK2.6 | Di-LK2.9 | Di-LK3.9 | Di-LK4.8 |
| Pixel Pitch | 2.604mm | 2.976mm | 3.91mm | 4.81mm |
| Pixel Configuration | SMD1415 | SMD1415 | SMD1921 | SMD1921 |
| Pixel Density | 147,456 pixels/m2 | 112,896 pixels/m2 | 65,536 pixels/m2 | 43,264 pixels/m2 |
| Module Dimensions (W x H) (mm) | 250 x 250 | 250 x 250 | 250 x 250 | 250 x 250 |
| Panel Dimensions (mm) | 500 x 500 x 80 | 500 x 500 x 80 | 500 x 500 x 80 | 500 x 500 x 80 |
| Modules Per Cabinet (W x H) | 2 x 2 | 2 x 2 | 2 x 2 | 2 x 2 |
| Module Resolution | 96 x 96 | 84 x 84 | 64 x 64 | 52 x 52 |
| Cabinet Resolution | 192 x 192 | 168 x 168 | 128 x 128 | 104 x 104 |
| Panel Material | Die Cast Aluminum | Die Cast Aluminum | Die Cast Aluminum | Die Cast Aluminum |
| Weight per Cabinet | 7.5kg | 7.5kg | 7.5kg | 7.5kg |
| Colours | 281 trillion | 281 trillion | 281 trillion | 281 trillion |
| Contrast Ratio | 5,000 : 1 | 5,000 : 1 | 5,000 : 1 | 5,000 : 1 |
| Average Power Consumption | 200 W /Sqm | 200 W /Sqm | 200 W /Sqm | 200 W /Sqm |
| Max Power Consumption | 600 W /Sqm | 600 W /Sqm | 600 W /Sqm | 600 W /Sqm |
| Brightness | >1,000 nits | >1,000 nits | >1,000 nits | >1,000 nits |
| Refresh Rate | >3,840Hz | >3,840Hz | >3,840 Hz | >3,840 Hz |
| Vertical Viewing Angle | 160° | 160° | 160° | 160° |
| Horizontal Viewing Angle | 160° | 160° | 160° | 160° |
| Expected Lifetime | 100,000 Hrs | 100,000 Hrs | 100,000 Hrs | 100,000 Hrs |
| Servicing | Front/Rear | Front/Rear | Front/Rear | Front/Rear |
| IP Rating (Front/Rear) | IP 43 | IP 43 | IP 43 | IP 43 |
| Operating Temp/Humidity | -20ºC - 50ºC / 10% - 90% | -20ºC - 50ºC / 10% - 90% | -20ºC - 50ºC / 10% - 90% | -20ºC - 50ºC / 10% - 90% |
| Storage Temp/Humidity | -20ºC - 50ºC / 10% - 90% | -20ºC - 50ºC / 10% - 90% | -20ºC - 50ºC / 10% - 90% | -20ºC - 50ºC / 10% - 90% |
Pictures:
Advantages Of Indoor Rental LED Video Wall
The utility model provides a large screen rental LED display box
quick connection device, in the middle of the box back cover on
both sides of the power line and signal line cable connectors,
connectors are connected to the power line and signal line, the
lower end of the power line on one side set the input power
connector, the lower end of the power line on the corresponding
other side set the output power connector, the lower end of the
signal line on one side set the input signal connector, set the
output signal connector at the lower end of the corresponding
signal line on the other side, the output power connector of the
box is connected to the input power connector of another box, the
output signal connector of the box is connected to the input signal
connector of another box, forming multiple boxes of large-screen
rental LED display. The advantages of the utility model is:
1. to achieve rapid connection of LED box site;
2. more convenient transportation;
3. to avoid damage to the signal line connector in the
transportation process.
Our Services
1. 20 Years professional led display manufacturer
2. Short delivery time: 5-15 working days, adjustable according to
customer request
3. Wholesale price
4. OEM and ODM service
5. Customizable product upon request
A: We provide 1-3 years warranty for different product. Free Repair
or Exchange of Defective Parts with One way Shipping
