Indoor Stage Events Background LED Video Wall Screen LED Panel
500X500mm
3840Hz Indoor Stage Rental LED Display 500x500mm Light Weight
Design
Feature Of Indoor Rental LED Video Wall
The application of LED stage rental screen is live broadcast. The
large and clear live broadcast picture of the game breaks the seat
limit, making it easier to watch performances from a distance and
giving people an immersive audio- visual feast. Wonderful scenes,
slow motion replay, close-up shots, and the creation of special
background environment bring the artistic conception of the
performance into full play. The combination of realistic pictures
and shocking music creates a magnificent and modern scene.
- High density, high-definition display;
- High refresh, high gray scale, high definition and high contrast,
combined with the industry's advanced point by point correction
technology, make the display screen beautiful and realistic,
suitable for the demand of live broadcast on the stage of LED
display;

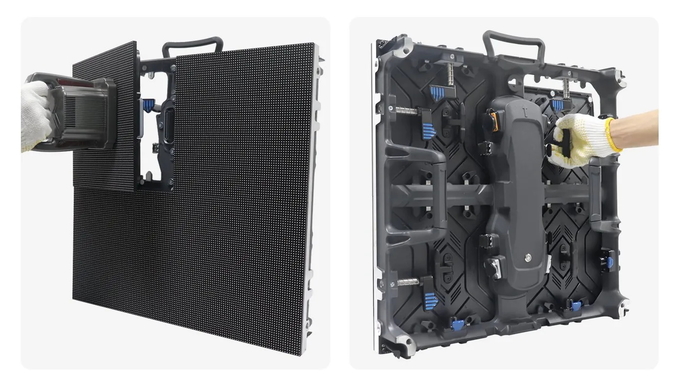

- The installation and disassembly are convenient and fast, and the
rapid disassembly and assembly without tools are really realized;
- Frequent video source switching, strong system switching
function, seamless switching;
- Adapt to the LED stage screen design. The screen shape is complex
and the screen compatibility is high;
Cooperate with professional audio and video processing equipment to
support arbitrary splicing and splitting of large screens.
Quick Details:
- Pixel Pitch: 2.604mm,2.976mm, 3.91mm, 4.81mm
- Quality and High Contrast SMD LEDs, Wide viewing angle: 160°/
160°.
- Greyscale: 14-16bits with NOVA Star
- Cabinet size: 500x500mm Die Cast Aluminum
- Cabinet Material: Die Cast Aluminum Cabinet, 7.5kg Weight
- Refresh Rate: 3840Hz
- Brightness:>1000cd/sqm
- Curve Installation: Yes, Concave and Convex Available
- Corner Protector: Yes, Semi-auto Corner Protector
Parameters:
| Model | Di-XG2.6 | Di-XG2.9 | Di-XG3.9 | Di-XG4.8 |
| Pixel Pitch | 2.604mm | 2.976mm | 3.91mm | 4.81mm |
| Pixel Configuration | SMD1415 | SMD1415 | SMD1921 | SMD1921 |
| Pixel Density | 147,456 pixels/m2 | 112,896 pixels/m2 | 65,536 pixels/m2 | 43,264 pixels/m2 |
| Module Dimensions (W x H) (mm) | 250 x 250 | 250 x 250 | 250 x 250 | 250 x 250 |
| Panel Dimensions (mm) | 500 x 500 x 80 | 500 x 500 x 80 | 500 x 500 x 80 | 500 x 500 x 80 |
| Modules Per Cabinet (W x H) | 2 x 2 | 2 x 2 | 2 x 2 | 2 x 2 |
| Module Resolution | 96 x 96 | 84 x 84 | 64 x 64 | 52 x 52 |
| Cabinet Resolution | 192 x 192 | 168 x 168 | 128 x 128 | 104 x 104 |
| Panel Material | Die Cast Aluminum | Die Cast Aluminum | Die Cast Aluminum | Die Cast Aluminum |
| Weight per Cabinet | 7.5kg | 7.5kg | 7.5kg | 7.5kg |
| Colours | 281 trillion | 281 trillion | 281 trillion | 281 trillion |
| Contrast Ratio | 5,000 : 1 | 5,000 : 1 | 5,000 : 1 | 5,000 : 1 |
| Average Power Consumption | 220 W /Sqm | 220 W /Sqm | 220 W /Sqm | 220 W /Sqm |
| Max Power Consumption | 600 W /Sqm | 600 W /Sqm | 600 W /Sqm | 600 W /Sqm |
| Brightness | >1,000 nits | >1,000 nits | >1,000 nits | >1,000 nits |
| Refresh Rate | >3,840Hz | >3,840Hz | >3,840 Hz | >3,840 Hz |
| Vertical Viewing Angle | 160° | 160° | 160° | 160° |
| Horizontal Viewing Angle | 160° | 160° | 160° | 160° |
| Expected Lifetime | 100,000 Hrs | 100,000 Hrs | 100,000 Hrs | 100,000 Hrs |
| Servicing | Front/Rear | Front/Rear | Front/Rear | Front/Rear |
| IP Rating (Front/Rear) | IP 65 | IP 65 | IP 65 | IP 65 |
| Operating Temp/Humidity | -20ºC - 50ºC / 10% - 90% | -20ºC - 50ºC / 10% - 90% | -20ºC - 50ºC / 10% - 90% | -20ºC - 50ºC / 10% - 90% |
| Storage Temp/Humidity | -20ºC - 50ºC / 10% - 90% | -20ºC - 50ºC / 10% - 90% | -20ºC - 50ºC / 10% - 90% | -20ºC - 50ºC / 10% - 90% |
Pictures:
Our Services
1. 20 Years professional led display manufacturer
2. Short delivery time: 5-15 working days, adjustable according to
customer request
3. Wholesale price
4. OEM and ODM service
5. Customizable product upon request
