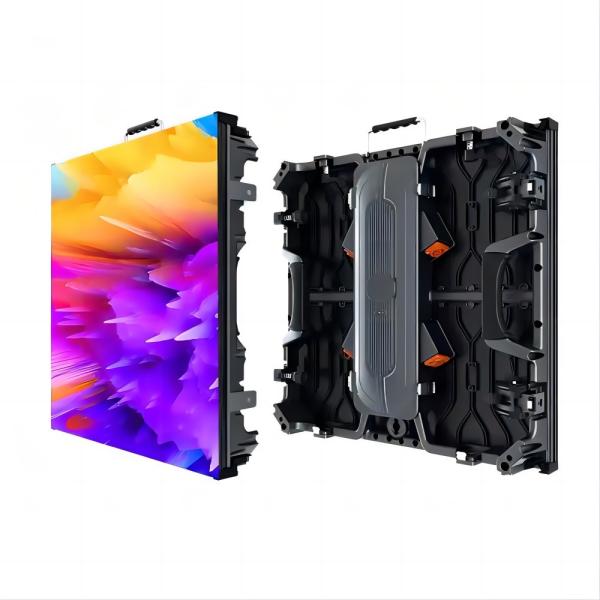

P2.6mm P2.9mm Indoor Rental LED Display Screen Ultra Thin Aluminum
Cabinet
Advantages Of Indoor Rental LED Screen
In terms of display effect, the ultra-high contrast of magic
crystal products can display richer details. High brightness can
present full and thorough picture performance, and truly realize
HDR ultra-high definition display. Ultra-wide color gamut can truly
restore color, with outstanding and perfect picture quality for
users to create the ultimate visual experience of full immersion,
full scene and presence. .
In terms of green health, magic crystal products are more
energy-saving and environmentally friendly due to a large reduction
in the amount of light-emitting chips; Professional management of
electromagnetic radiation to avoid human radiation hazards; The
surface light source design makes viewing a pleasure with a good
sense of light. Health without dazzling makes it possible to look
directly at people for a long time; The unique intelligent
temperature control design scheme reduces the temperature rise in
front of the screen and makes the near screen experience more
comfortable.
Quick detail Of Indoor Rental LED Screen
- Pixel Pitch: 2.604mm. 2.976mm
- Quality and High Contrast SMD LEDs, Wide viewing angle: 160°/
160°.
- Greyscale: 14-16bits with NOVA system
- Cabinet size: 500x500mm Die Cast Aluminum
- Recommended Min Viewing Distance: 2-3m.
- Cabinet Material: Die Cast Aluminum Cabinet, 7.5kg Weight
- Refresh Rate: 3840Hz
- Ingress Rate: IP43 Indoor
- Quality Certificate:CE, RoHS,FCC, ETL
- Brightness:>1000cd/sqm

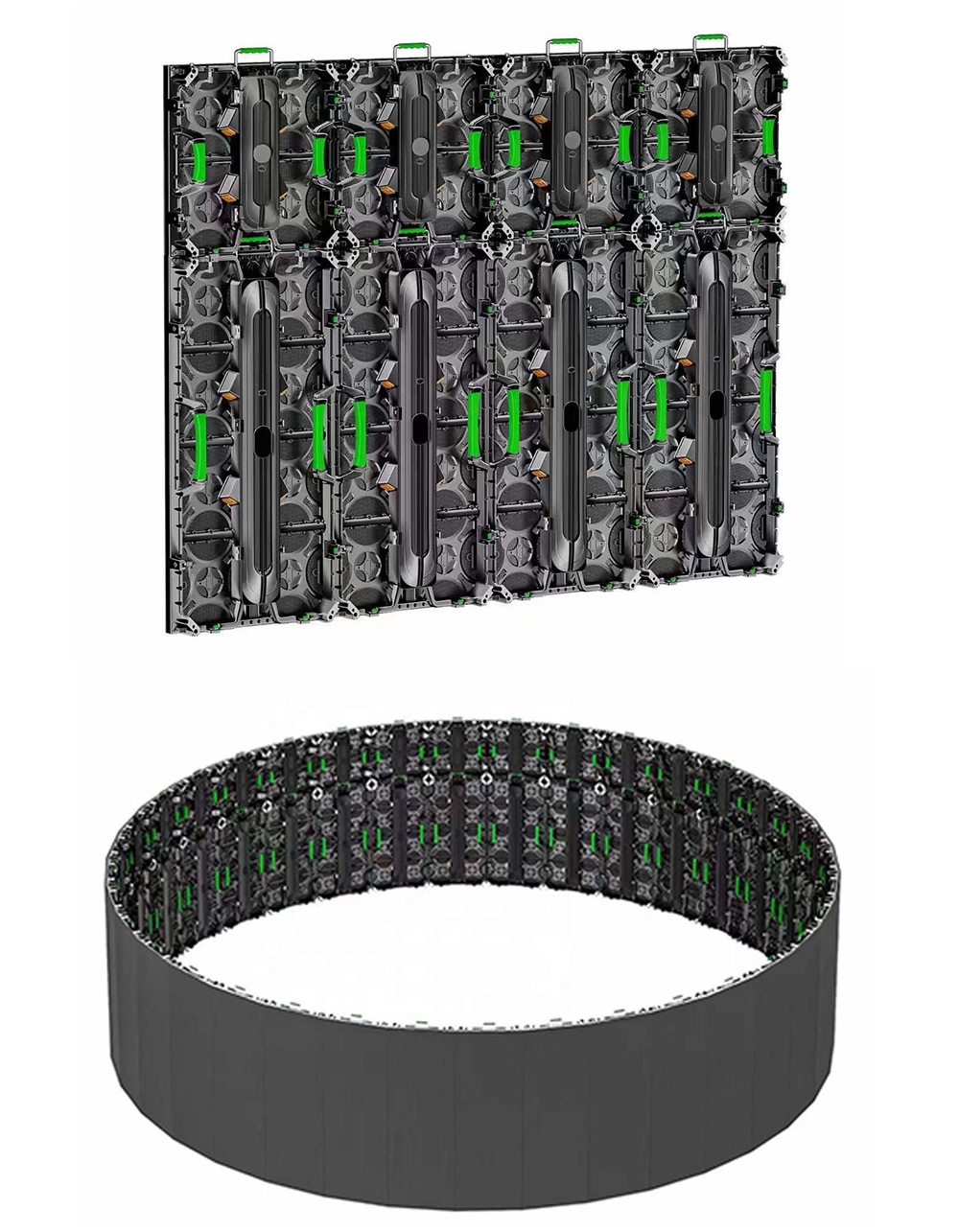

- Curve Installation: Yes, Concave and Convex Available

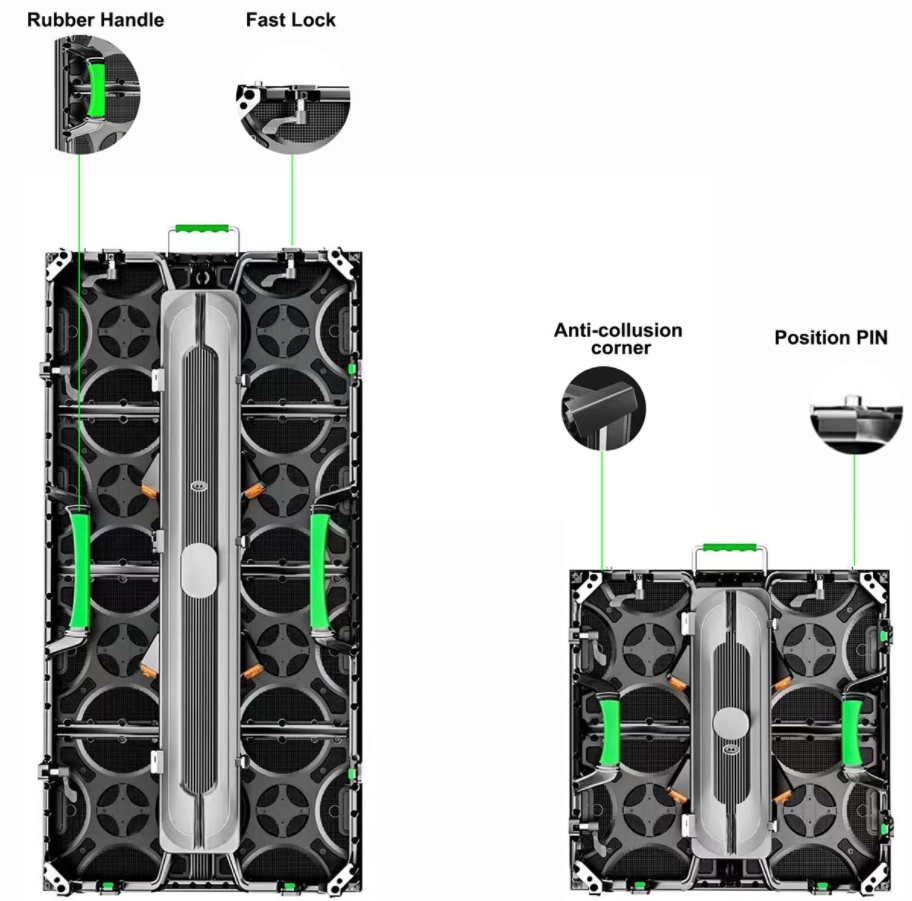

- Corner Protector: Available
Parameters:
| Model | Di-HK2.6 | Di-HK2.9 | Di-HK3.9 | Di-HK4.8 |
| Pixel Pitch | 2.604mm | 2.976mm | 3.91mm | 4.81mm |
| Pixel Configuration | SMD1415 | SMD1415 | SMD1921 | SMD1921 |
| Pixel Density | 147,456 pixels/m2 | 112,896 pixels/m2 | 65,536 pixels/m2 | 43,264 pixels/m2 |
| Module Dimensions (W x H) (mm) | 250 x 250 | 250 x 250 | 250 x 250 | 250 x 250 |
| Panel Dimensions (mm) | 500 x 500 x 80 | 500 x 500 x 80 | 500 x 500 x 80 | 500 x 500 x 80 |
| Modules Per Cabinet (W x H) | 2 x 2 | 2 x 2 | 2 x 2 | 2 x 2 |
| Module Resolution | 96 x 96 | 84 x 84 | 64 x 64 | 52 x 52 |
| Cabinet Resolution | 192 x 192 | 168 x 168 | 128 x 128 | 104 x 104 |
| Panel Material | Die Cast Aluminum | Die Cast Aluminum | Die Cast Aluminum | Die Cast Aluminum |
| Weight per Cabinet | 7.5kg | 7.5kg | 7.5kg | 7.5kg |
| Colours | 281 trillion | 281 trillion | 281 trillion | 281 trillion |
| Contrast Ratio | 5,000 : 1 | 5,000 : 1 | 5,000 : 1 | 5,000 : 1 |
| Average Power Consumption | 200 W /Sqm | 200 W /Sqm | 200 W /Sqm | 200 W /Sqm |
| Max Power Consumption | 600 W /Sqm | 600 W /Sqm | 600 W /Sqm | 600 W /Sqm |
| Brightness | >1,000 nits | >1,000 nits | >1,000 nits | >1,000 nits |
| Refresh Rate | >3,840Hz | >3,840Hz | >3,840 Hz | >3,840 Hz |
| Vertical Viewing Angle | 160° | 160° | 160° | 160° |
| Horizontal Viewing Angle | 160° | 160° | 160° | 160° |
| Expected Lifetime | 100,000 Hrs | 100,000 Hrs | 100,000 Hrs | 100,000 Hrs |
| Servicing | Front/Rear | Front/Rear | Front/Rear | Front/Rear |
| IP Rating (Front/Rear) | IP 43 | IP 43 | IP 43 | IP 43 |
| Operating Temp/Humidity | -20ºC - 50ºC / 10% - 90% | -20ºC - 50ºC / 10% - 90% | -20ºC - 50ºC / 10% - 90% | -20ºC - 50ºC / 10% - 90% |
| Storage Temp/Humidity | -20ºC - 50ºC / 10% - 90% | -20ºC - 50ºC / 10% - 90% | -20ºC - 50ºC / 10% - 90% | -20ºC - 50ºC / 10% - 90% |
Pictures:
Our Services
1. 20 Years professional led display manufacturer
2. Short delivery time: 5-15 working days, adjustable according to
customer request
3. Wholesale price
4. OEM and ODM service
5. CE, ROHS, FCC, ETL, TUV certified supplier
