High Grayscale Indoor LED Display Stage Indoor Events Using LED
Screen Panel
Indoor 500x500mm Stage Rental LED Display 3840Hz Refresh Rate
Feature Of Indoor Rental LED Video Wall
- Modular Design, Easy Disassembly and Assembly. Screwless Fixing
for Modules and Control Box. Installing/uninstalling From Front and
Back Only within 3 Seconds.

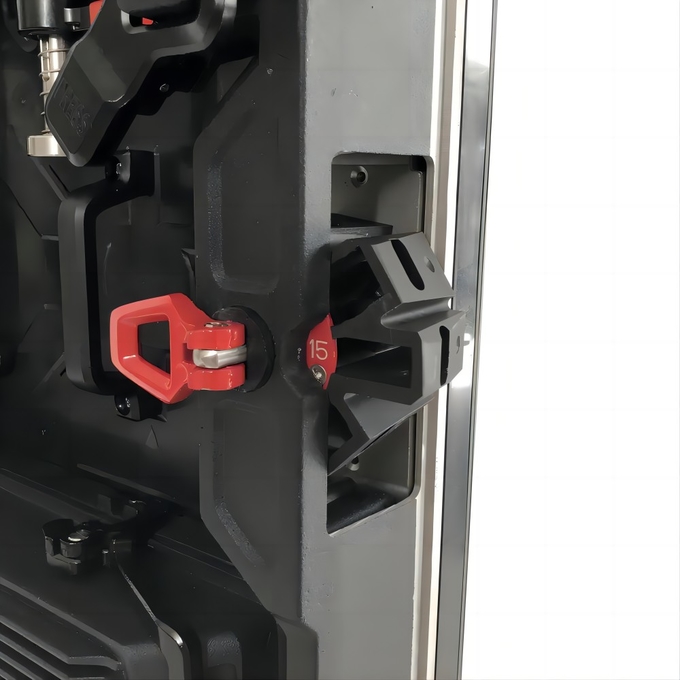

- Curve Application. Renewed Angle Adjustment Lock System. Rotary
Lock System with Inner and Outer Arc From +- 15 Degree with
Flexible Application. Patent Buckle Design, Lock in the Long Term
Use Process will not Become Loose

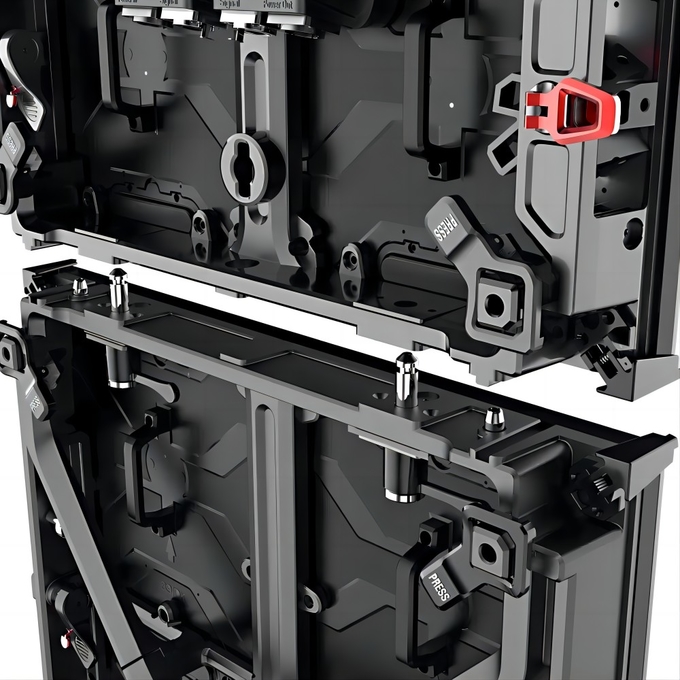

- Inner Arc and Outer Arc, Free Splicing. 500x500mm and 500x1000mm
Cabinets can be Used Together Freely.
- Poster Function. Use our poster screen accessaries to quickly
build small screens. It is convenient and fast, and can broaden the
application scenarios of display screen.
- Protection Design. Semi auto corner protector, just press the
button gently, the corner protection will pop up, quickly protect
the display screen, convenient storage.
- Self Protection Design. Inclination Design at cabinet bottom for
self protection of LED, making cabinet and stand on ground
steadily.
- Pixel Pitch: 2.604mm. 2.976mm, 3.91mm,4.81mm
- Quality and High Contrast SMD LEDs, Wide viewing angle: 160°/
160°.
- Cabinet size: 500x500mm Die Cast Aluminum
- Cabinet Material: Die Cast Aluminum Cabinet, 7.5kg Weight
- Refresh Rate: 3840-7680Hz
- Brightness:>1000cd/sqm
- Independent Power Box
- Poster Function, Easily switched to a LED Poster
Parameters:
| Model | Di-LK2.6 | Di-LK2.9 | Di-LK3.9 | Di-LK4.8 |
| Pixel Pitch | 2.604mm | 2.976mm | 3.91mm | 4.81mm |
| Pixel Configuration | SMD1415 | SMD1415 | SMD1921 | SMD1921 |
| Pixel Density | 147,456 pixels/m2 | 112,896 pixels/m2 | 65,536 pixels/m2 | 43,264 pixels/m2 |
| Module Dimensions (W x H) (mm) | 250 x 250 | 250 x 250 | 250 x 250 | 250 x 250 |
| Panel Dimensions (mm) | 500 x 500 x 80 | 500 x 500 x 80 | 500 x 500 x 80 | 500 x 500 x 80 |
| Modules Per Cabinet (W x H) | 2 x 2 | 2 x 2 | 2 x 2 | 2 x 2 |
| Module Resolution | 96 x 96 | 84 x 84 | 64 x 64 | 52 x 52 |
| Cabinet Resolution | 192 x 192 | 168 x 168 | 128 x 128 | 104 x 104 |
| Panel Material | Die Cast Aluminum | Die Cast Aluminum | Die Cast Aluminum | Die Cast Aluminum |
| Weight per Cabinet | 7.5kg | 7.5kg | 7.5kg | 7.5kg |
| Colours | 281 trillion | 281 trillion | 281 trillion | 281 trillion |
| Contrast Ratio | 5,000 : 1 | 5,000 : 1 | 5,000 : 1 | 5,000 : 1 |
| Average Power Consumption | 200 W /Sqm | 200 W /Sqm | 200 W /Sqm | 200 W /Sqm |
| Max Power Consumption | 600 W /Sqm | 600 W /Sqm | 600 W /Sqm | 600 W /Sqm |
| Brightness | >1,000 nits | >1,000 nits | >1,000 nits | >1,000 nits |
| Refresh Rate | >3,840Hz | >3,840Hz | >3,840 Hz | >3,840 Hz |
| Vertical Viewing Angle | 160° | 160° | 160° | 160° |
| Horizontal Viewing Angle | 160° | 160° | 160° | 160° |
| Expected Lifetime | 100,000 Hrs | 100,000 Hrs | 100,000 Hrs | 100,000 Hrs |
| Servicing | Front/Rear | Front/Rear | Front/Rear | Front/Rear |
| IP Rating (Front/Rear) | IP 43 | IP 43 | IP 43 | IP 43 |
| Operating Temp/Humidity | -20ºC - 50ºC / 10% - 90% | -20ºC - 50ºC / 10% - 90% | -20ºC - 50ºC / 10% - 90% | -20ºC - 50ºC / 10% - 90% |
| Storage Temp/Humidity | -20ºC - 50ºC / 10% - 90% | -20ºC - 50ºC / 10% - 90% | -20ºC - 50ºC / 10% - 90% | -20ºC - 50ºC /
|
Pictures:
Our Services
1. 20 Years professional led display manufacturer
2. Short delivery time: 5-15 working days, adjustable according to
customer request
3. Wholesale price
4. OEM and ODM service
5. Customizable product upon request
