Die-casting Aluminum Outdoor LED Billboard High brightness Outside
TV Board
Outdoor Fixed LED Billboard LED Display Screen
Application:
Compared with iron, aluminum has the characteristics of light
weight, good toughness, corrosion resistance and better thermal
conductivity. In humid environment, the aluminum module can form a
layer of oxide film to prevent metal corrosion, effectively
preventing further corrosion. Widely used in government agencies
for government affairs, stations, banks, taxation, post and
telecommunications, hospitals, customs, securities markets, bidding
markets, schools, factories, ports, stadiums, airports,industry and
commerce, taxation, customs, monitoring centers and advertising...
Features:
- Durable fresh color and high brightness by adopting high quality
leds.
- Great uniformity , contract ratio and screen flatness.
- Anti-UV module mask, Anti-Oxidation module frame with protection
from deformation.
- IP65 protection grade, durable nature enables the screen to work
in all outdoor weather conditions
- Quiet fan design,excellent heat dissipation
- Durable fresh color and 6000nits high brightness for outdoor.
- Short viewing distance range design for outdoor.
- IP65 protection grade, durable nature enables the screen to work
in all outdoor weather conditions
- Pixel Pitch: 2.5mm,3mm,4mm,5mm,6.67mm,8mm and 10mm
- Cabinet size: 960x960mm Aluminum Cabinet
- Refresh Rate: 3840Hz
- LED Module size 320X160mm
- Support Engergy Saving Solution with common cathode solution with
pointed LED lamps,Power supply and IC
Parameters:
| Model | E-M2.5 | E-M3 | E-M4 | E-M5 | E-M6 | E-M8 | E-M10 |
| Pixel Pitch | 2.5mm | 3.0769mm | 4mm | 5mm | 6.67mm | 8mm | 10mm |
| Pixel Configuration | SMD1415 | SMD1921 | SMD1921 | SMD1921 | SMD2727 | SMD2727 | SMD3535 |
| Pixel Density | 160000 pixels/m2 | 105625 pixels/m2 | 62500 pixels/m2 | 40000 pixels/m2 | 22500 pixels/m2 | 15625 pixels/m2 | 10000 pixels/m2 |
| Module Dimensions (W x H)(mm) | 320 x 160 | 320 x 160 | 320 x 160 | 320 x 160 | 320 x 160 | 320 x 160 | 320 x 160 |
| Panel Dimensions (mm) | 960 x960 x 120 | 960 x960 x 120 | 960 x960 x 180 | 960 x960 x 180 | 960 x960 x 180 | 960 x960 x 180 | 960 x960 x 180 |
| Modules Per Cabinet (W x H) | 3 x 6 | 3 x 6 | 3 x 6 | 3 x 6 | 3 x 6 | 3 x 6 | 3 x 6 |
| Module Resolution | 128 x 128 | 104 x 104 | 80 x 80 | 64 x 64 | 48 x 48 | 40 x 40 | 32 x 32 |
| Cabinet Resolution | 384 x 384 | 312 x 312 | 240 x 240 | 192 x 192 | 144 x 144 | 120 x 120 | 96 x 96 |
| Panel Material | Aluminum | Aluminum | Aluminum | Aluminum | Aluminum | Aluminum | Aluminum |
| Weight per Cabinet | 33kgs | 33kgs | 33kgs | 33kgs | 33kg | 33kgs | 33kgs |
| Colors | 281 trillion | 281 trillion | 281 trillion | 281 trillion | 281 trillion | 281 trillion | 281 trillion |
| Contrast Ratio | 5,000 : 1 | 5,000 : 1 | 5,000 : 1 | 5,000 : 1 | 5,000 : 1 | 5,000 : 1 | 5,000 : 1 |
| Average Power Consumption | 330 W /Sqm | 330 W /Sqm | 330 W /Sqm | 330 W /Sqm | 330 W /Sqm | 330 W /Sqm | 330 W /Sqm |
| Max Power Consumption | 950 W /Sqm | 950 W /Sqm | 950 W /Sqm | 950 W /Sqm | 950 W /Sqm | 950 W /Sqm | 950 W /Sqm |
| Brightness | >6,000 nits | >6,000 nits | >6,000 nits | >6,000 nits | >6,000 nits | >6,000 nits | >6,000 nits |
| Refresh Rate | >3,840Hz | >3,840Hz | >3,840Hz | >3,840Hz | >3,840Hz | >3,840Hz | >3,840Hz |
| Vertical Viewing Angle | 160° | 160° | 160° | 160° | 160° | 160° | 160° |
| Horizontal Viewing Angle | 160° | 160° | 160° | 160° | 160° | 160° | 160° |
| Expected Lifetime | 100,000 Hrs | 100,000 Hrs | 100,000 Hrs | 100,000 Hrs | 100,000 Hrs | 100,000 Hrs | 100,000 Hrs |
| Servicing | Rear | Rear | Rear | Rear | Rear | Rear | Rear |
| IP Rating (Front/Rear) | IP65 / IP54 | IP65 / IP54 | IP65 / IP54 | IP65 / IP54 | IP65 / IP54 | IP65 / IP54 | IP65 / IP54 |

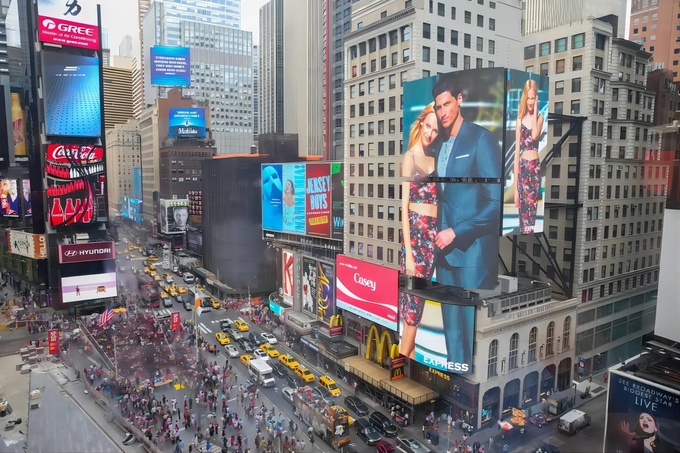

Pictures:
Our Services
1. 20 Years professional led display manufacturer
2. Short delivery time: 5-15 working days, adjustable according to
customer request
3. Wholesale price
4. OEM and ODM service
5. Customizable product upon request
